9
....L
1 1
I
I
I.", __ ~
2
13,.
?~
5
3
14

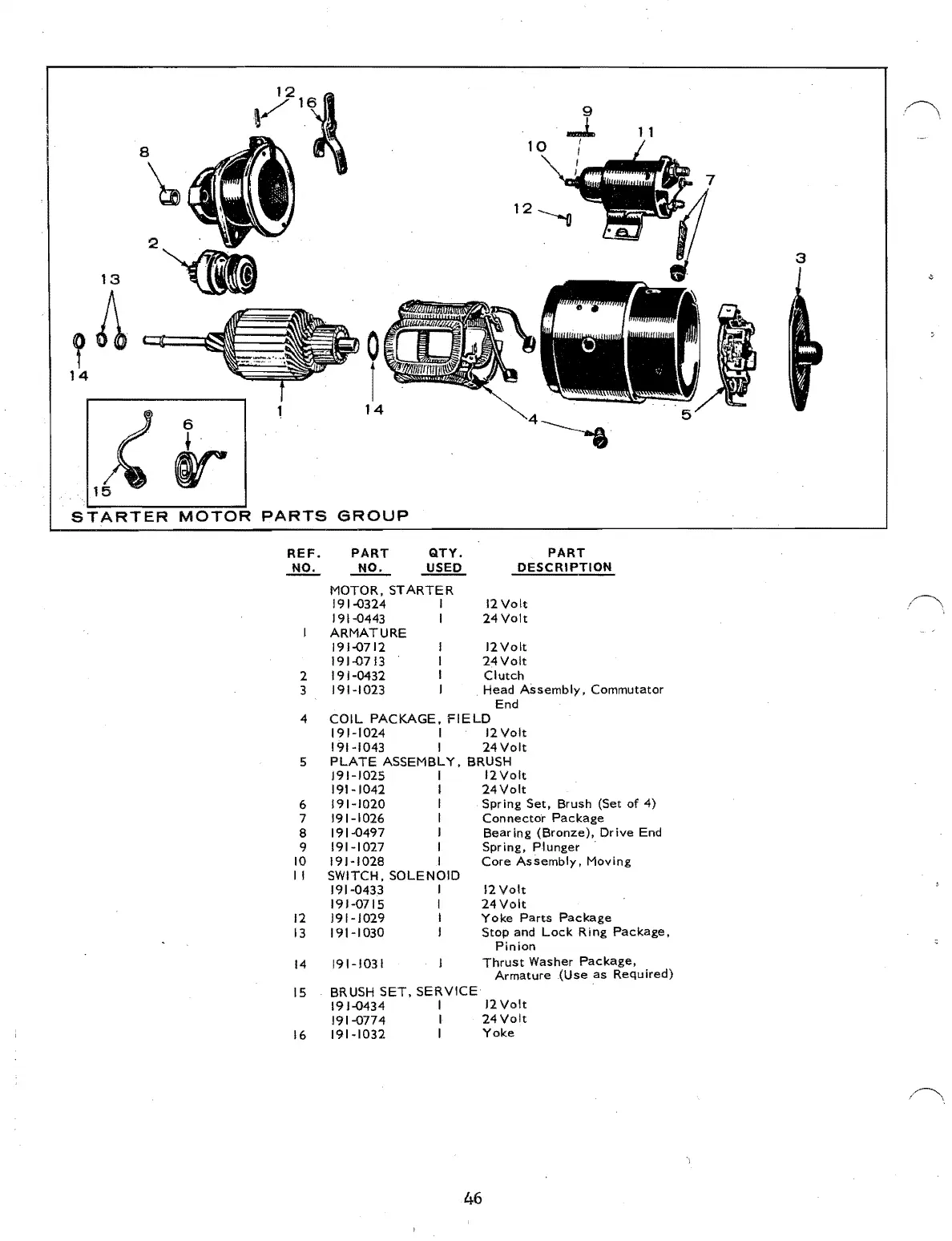

STARTER MOTOR PARTS GROUP
REF.
PART QTY •
PART
NO. USED
DESCRIPTION
.1:!.2.:...
MOTOR,
STARTER
191-0324 I 12Volt
191-0443 I 24Volt
ARMATURE
191-0712 12 Volt
191..0713 24Volt
2 191-0432 Clutch
3 191-1023 Head Assembly, Commutator
End
4
COIL PACKAGE, FIELD
191-1024 I 12 Volt
191-1043 I 24Volt
5 PLATE ASSEMBLY, BRUSH
J91-1025 I
12 Volt
191-1042 1 24Volt
6 191-1020 I Spring Set, Brush (Set of 4)
7 191-1026 I Connector Package
8 191-0497 1
Bearing (Bronze), Drive End
9 191-1027 I Spring, Plunger
10 191-1028 1 Core Assembly, Moving
I I SWITCH, SOLENOID
191-0433 I 12Volt
191-0715 1 24Volt
12 191-1029 I Yoke Parts Package
13 191-1030 1 Stop and Lock Ring Package,
Pinion
14 191-1031 Thrust Washer Package,
Armature (Use as Required)
15
BRUSH SET, SERVICE
191-0434 I 12 Volt
191-0774 I 24Volt
16
191-1032 I Yoke
46
