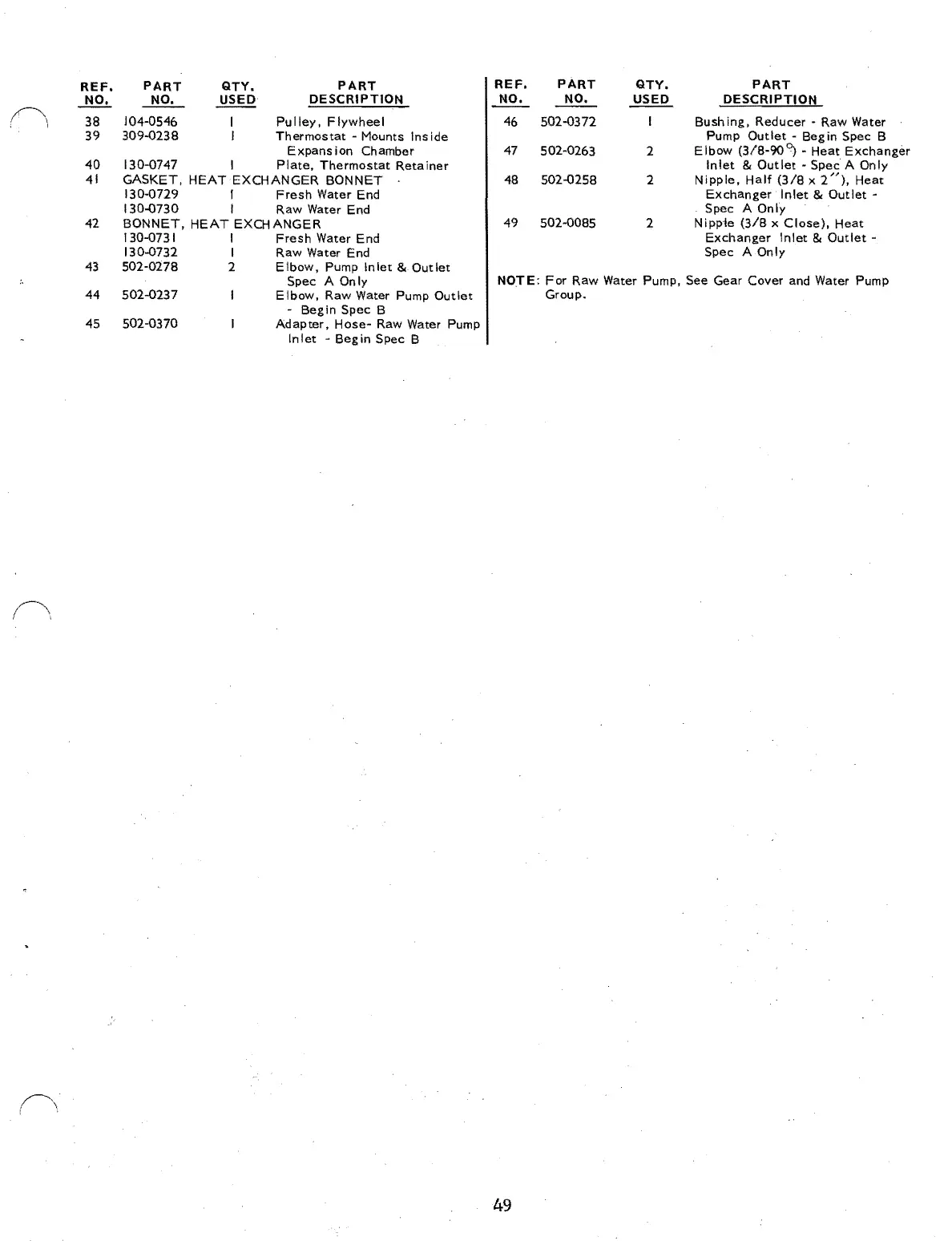

Onan 15.0MDJF-3CR User Manual

REF.
QTY.
PART
NO.
USED
DESCRIPTION
38
104-0546
Pulley, Flywheel
39 309-0238
Thermostat - Mounts Ins ide
Expans ion Chamber
40 130-0747 I
Plate, Thermostat Retainer
41
GASKET, HEAT EXCHANGER BONNET
130-0729 I Fresh Water End
130-0730 I Raw Water End
42
BONNET, HEAT EXCHANGER
'30-0731 , Fresh Water End
130-0732 I Raw Water End
43 502-0278 2 Elbow, Pump Inlet & Outlet
Spec A Only
44
502-0237
Elbow, Raw Water Pump Outlet
Begin Spec B
45
502-0370
Adapter, Hose- Raw Water Pump
In let - Beg in Spec B
REF. PART
QTY. PART
NO.
~
USED DESCRIPTION
46 502-0372 Bush ing, Reducer - Raw Water
Pump
Outlet - Begin Spec B
47 502-0263
2
Elbow (3/8-90 0) - Heat Exchanger
Inlet & Outlet - Spec A Only
48
502-0258
2
Nipple, Half (3/8 x 2"), Heat
Exchanger Inlet & Outlet -
Spec A
Only
49 502-0085
2
Nipple (3/8 x Close), Heat
Exchanger Inlet & Outlet -
Spec A
Only
NOTE: For Raw Water Pump, See Gear Cover and Water Pump
Group.
(\
