Onan 15.0MDJF-3CR User Manual

2·4----------~~---------------
7
3en
36$!T

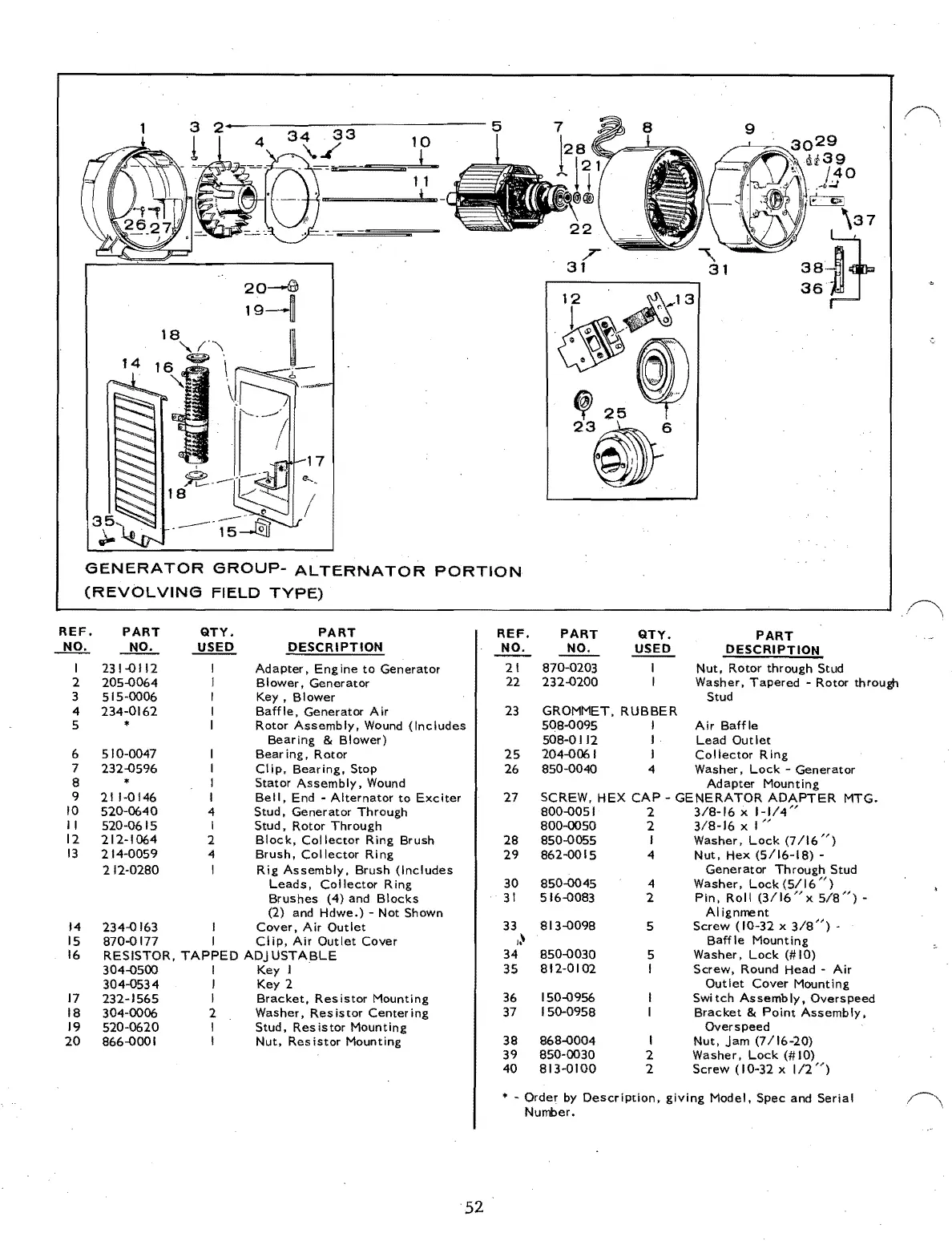

GENERATOR GROUP- ALTERNATOR PORTION
(REVOLVING FIELD TYPE)
REF.
PART QTY.
PART
NO.
.J!2:...
USED
DESCRIPTION
I
231-0112
Adapter, Eng ine to Generator
2
205-0064
Blower, Generator
3 515-0006
Key, Blower
4
234-0162 Baffle. Generator Air
5
*
Rotor Assemb Iy, Wound (Includes
Bearing & Blower)
6
510-0047
I Bearing, Rotor
7
232-0596
I
ct ip. Bearing. Stop
8
*
I Stator Assembly, Wound
9
211-0146
I
Bell, End - Alternator to Exciter
10
520-0640
4 Stud. Generator Through
II
520-0615
1
Stud, Rotor Through
12
212-1064
2
Block, Collector Ring Brush
13
214-0059
4
Brush. Collector Ring
212-0280 I Rig Assembly. Brush (Includes
Leads. Collector Ring
Brushes (4) and Blocks
(2) and Hdwe.) - Not Shown
14
234-0163
Cover. Air Outlet
15
870-0177 I CliP. Air Outlet Cover
16
RESISTOR. TAPPED ADJUSTABLE
304-0500 I Key J .
304-0534 J Key 2
17
232-1565 I Bracket. Resistor Mounting
18 304-0006 2 Washer, Resistor Centering
19
520-0620 I Stud, Resistor Mounting
20 866-0001 I Nut, Res istor Mounting
REF.
PART
QTY.
PART
NO.
NO.
USED
DESCRIPTION
21 870-0203 I
Nut. Rotor through Stud
22
232-0200
I
Washer. Tapered - Rotor through
Stud
23
GROMMET. RUBBER
508-0095 I Air Baffle
508-0112 1
Lead Outlet
25
204-0061 1
Collector Ring
26
850-0040
4 Washer. Lock - Generator
Adapter Mounting
27 SCREW. HEX CAP - GENERATOR ADAPTER MTG.
800-0051
2
3/8-16 x 1-1/4"
800-0050
2
3/8-16 x I"
28
850-0055
I
Washer. Lock (7/16")
29
862-0015
4 Nut. Hex (5/16-18) -
Generator Through Stud
30
850-0045
4
Washer.
Lock(5/16")
31
516-0083
2
Pin. Roll (3/16"x 518")-
AI ignment
33
813-0098
5
Screw (10-32 x 3/8") -
,> Baffle Mounting
34 850-0030
5
Washer.
Lock (# 10)
35
812-0102
I
Screw, Round Head - Air
Outlet Cover Mounting
36
150-0956
Swi
tch As semb Iy, Overs peed
37
150-0958
Bracket & Point Assembly.
Overspeed
38
868-0004 I
Nut. Jam (7116-20)
39 850-0030
2 Washer. Lock (#10)
40 813-0100
2 Screw (10-32 x 112")
*
Order by Description. giving Model. Spec and Serial
Number.
52
