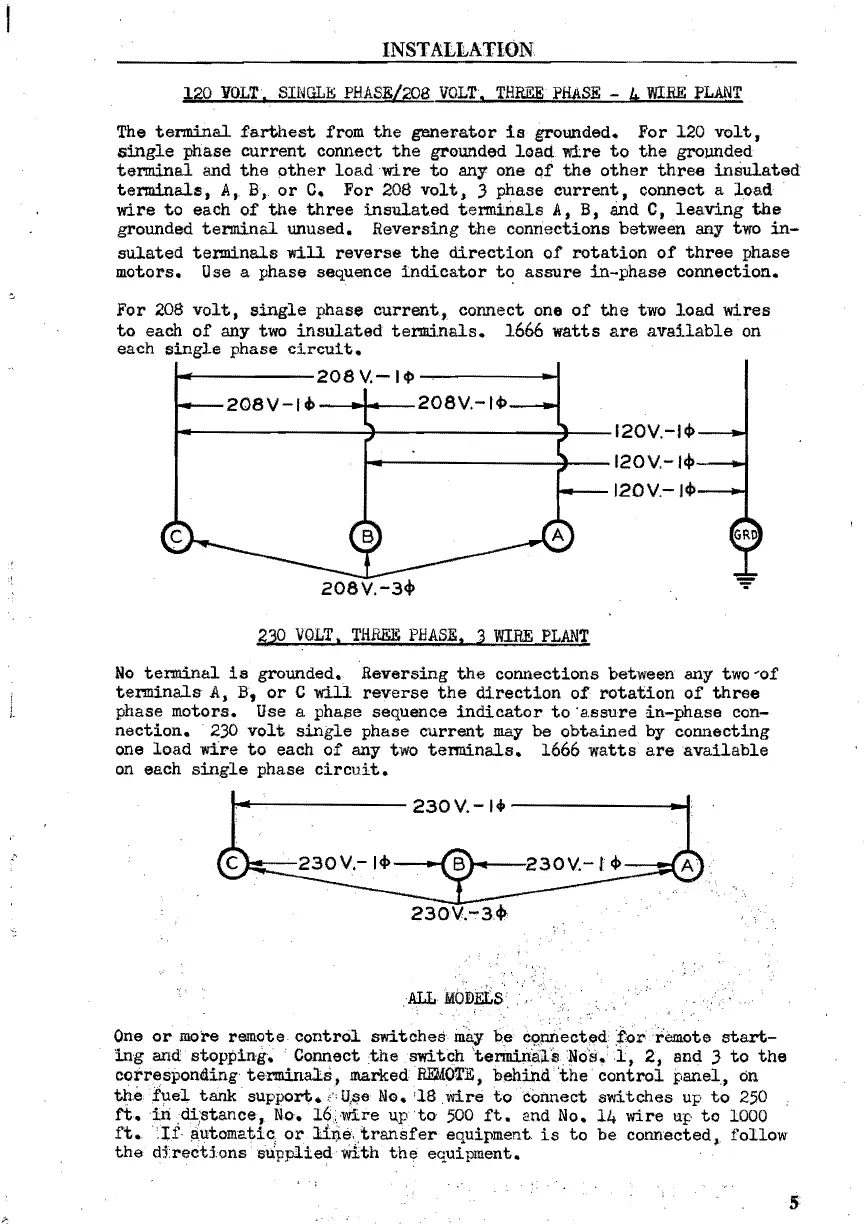

INSTALLATION
120 VOLT, SINGL:&; PHASE/20B VOLT. THREE PHASE - 4 WIRE PLANT
The terndnal farthest from the generator is grounded. For 120 volt,
single phase current connect the grounded load wire to the grounded
terndnal and the other load wire to anyone of the other three insulated
terminal!, A,. B, or C. For 208 volt, 3 phase current, connect a load
wire to each of the three insulat.ed terminals A, B, and C, leaving the
grounded terminal unused. Reversing the connections between any two in-
sulated terminals will reverse the direction of rotation of three phase
motors. Use a phase sequence indicator t~ assure in-phase connection.
For 208 volt, single phase current, connect one of the two load wires
to each of any two insulated terminals. 1666 watts are available on
each
sing~e phase circuit •
...... -----2o8 V. -I ¢I-------I ....
208V-lcI> 208V.-I¢I
t--------~------+-120V.-I4>
120V.- 14>
...... -------l--120V.-lcjI
208V.-3cj1
230 VOLT. THREE PHASE, :2 WIRE PLANT
No terminal is grounded. Reversing the connections between any two 'of
terminals A. B, or C will reverse the direction of rotation of three
phase motors. Use a phal'>e sequence indicator to 'B.ssure in-phase con-
nection. 230 volt single phase current may be obtained by connecting
one load wire to each of any two terminals. 1666 watts are available
on each single phase circuit •
..... ------ 230V. -1+ ------ ....
ALL MOIDEI;S .
One or more remote control switches m~ l>e c9.nn~cted.torr~te start-
ing and stopping •. Connect the switch 'terminals . .Nos~l, 2, and 3 to the
corresponding terminals, marked. REMOTE, b~ind· 'the . control panel, on
th.ef)le1 tank support •. U,l?e No. '18 .wiretocoilnect switches up to 250
ft·. in Ai;stance, No. 16.:.wire u.,pto 500 ft. and No. 14 wire up to 1000
ft.:U· Il,utomatic or lilje .. transfer equipment is to be connected~ fonow
the dtrectlons supplied With the eqUipment.
/'.-
