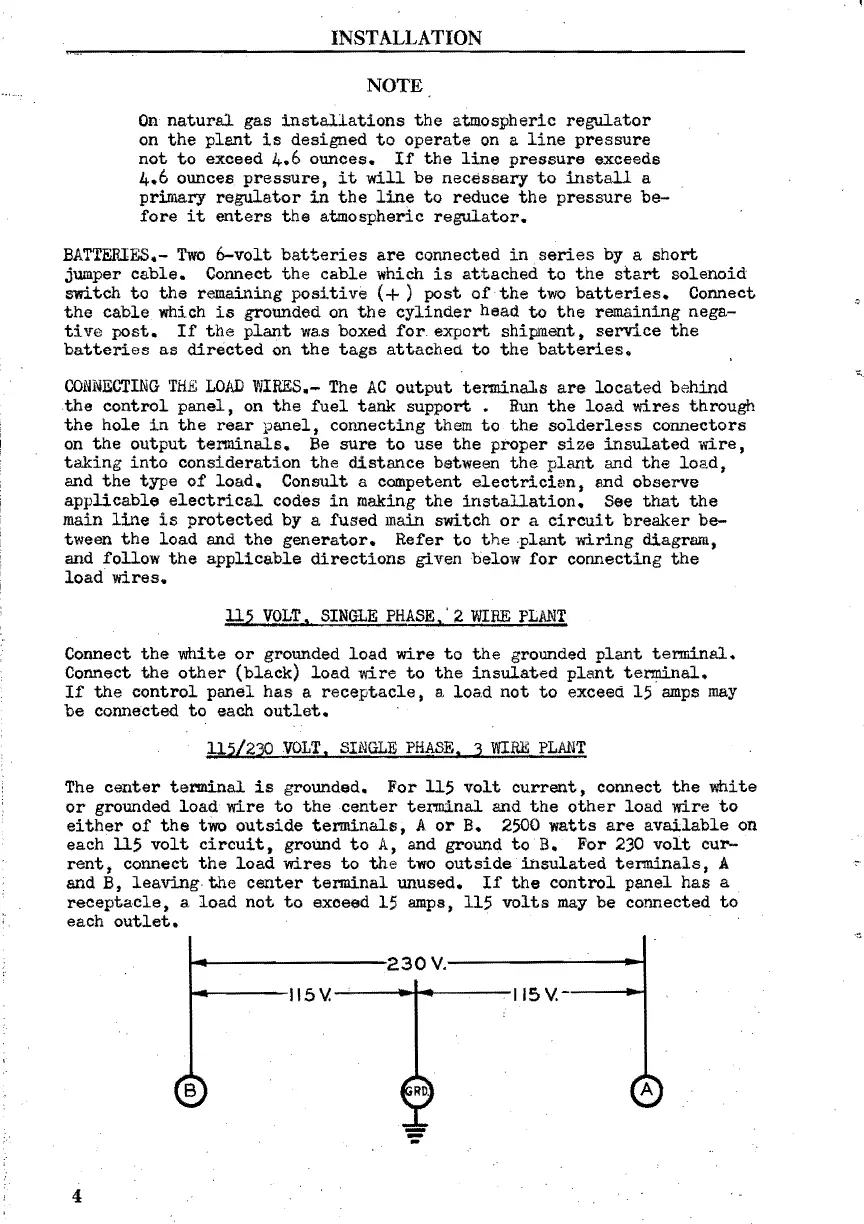

INSTALLATION
NOTE
On natural gas installations the atmospheric regulator
on the plant is designed to operate on a line pressure
not to exceed 4.6 ounces. If the line pressure exceeds
4.6 ounces pressure, it will be necessary to install a
primary
regulator in the line to reduce the pressure be-
fore it enters the atmospheric regulator.
BATTERIES.- Two 6-volt batteries are connected in.series by a short
jumper cable. Connect the cable which is attached to the start solenoid
switch to the remaining positive (+) post of the two batteries. Connect
the cable which is grounded on the cylinder head to the remaining nega-
ti va post. If the plant was boxed for. export shipment. service the
batteries as directed on the tags attached to the batteries.
CONNECTING THE LOAD 'l'lIRES.- The AC output terminals are located behind
the control panel, on the fuel tank support. Run the load wires through
the hole in the rear panel, connecting them to the solderless connectors
on the output terminals. Be sure to use the proper size insulated ~~re,
taking into consideration the distance between the plant and the load,
and the type of load. Consult a competent electrician, and observe
applicable electrical codes in making the installation. See that the
main line is protected by a fused main switch or a circuit breaker be-
tween the load and the generator. Refer to the .plant wiring diagram,
and
follow the applicable directions given below for connecting the
load wires.
115 VOLT, SINGLE PHASE)' 2 WIRE PLlINT
Connect the white or grounded load wire to the grounded plant terminal.
Connect the other (black) load wire to the insulated plant terminal.
If the control panel has a receptacle, a load not to exceed 15 amps may
be connected to each outlet.
llS/21O VOLT) SINGLE PHASE, 3 WIRE PLlINT
The center terminal is grounded. For 115 volt current, connect the white
or grounded load wire to the center terminal and the other load wire to
either of the two outside terminals, A or B. 2500 watts are available on
each 115 volt circuit, ground to A, and ground to B. For 230 volt cur-
rent, connect the load wires to the two outside insulated terminals, A
and B,
leaving the center terminal unused. If the control panel has a
receptacle, a load not to exoeed 15 amps, 115 volts may be connected to
each outlet •
...... -------230 V.----------I
...... ---115 v.......;....-- ....... -....,---115 V. --- ........
A
B
-
-
-
4
