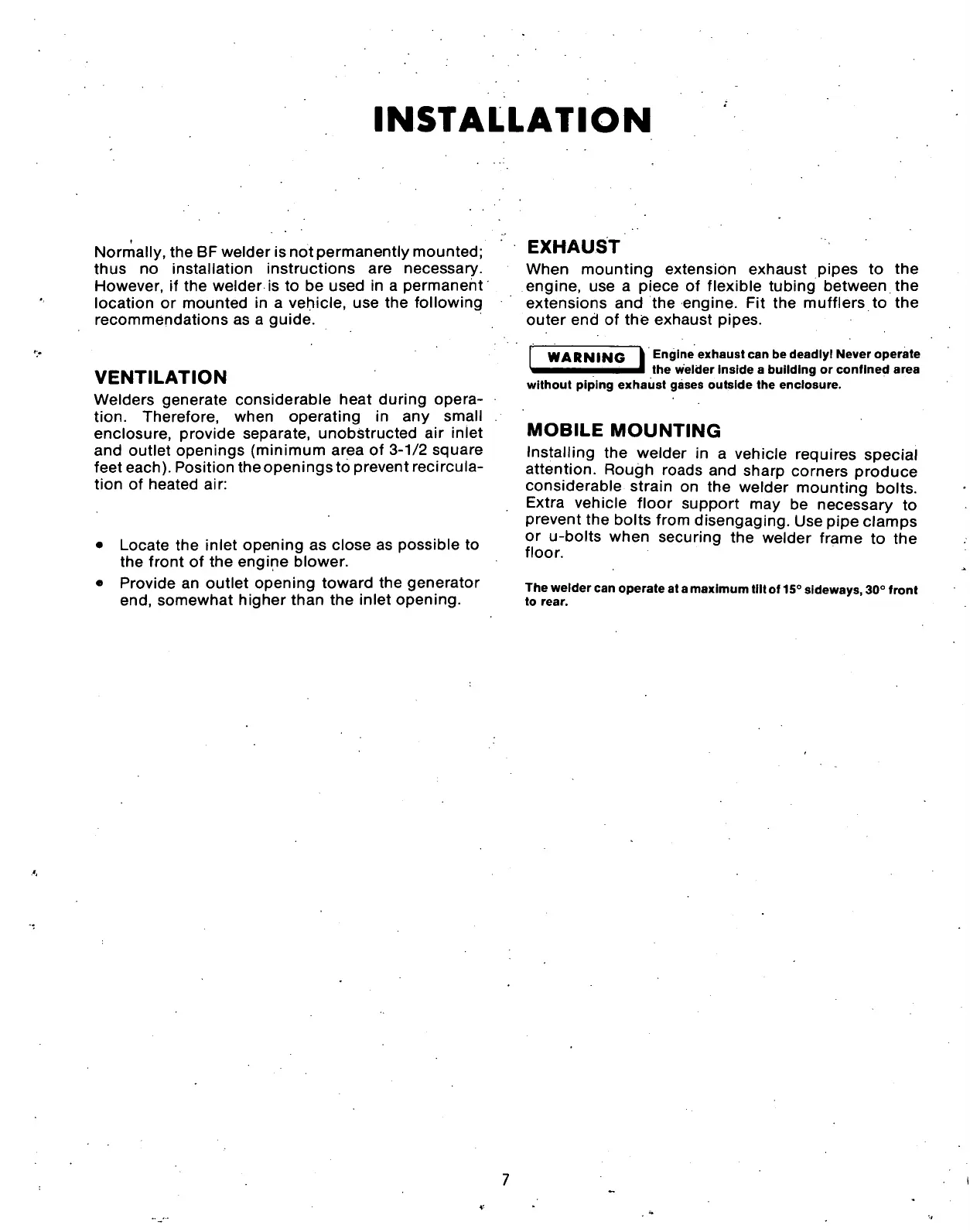

INSTALLATION
Normally, the BF welder is not permanently mounted;
thus no installation instructions are necessary.
However, if the welder is to be used in a permanent
location or mounted in a vehicle, use the following
recommendations as a guide.
VENTILATION
Welders generate considerable heat during opera-
tion.
Therefore, when operating in any small
enclosure, provide separate, unobstructed air inlet
and outlet openings (minimum area of 3-1/2 square
feet each). Position the openings to prevent recircula-
tion of heated air:
• Locate the inlet opening as close as possible to
the front of the engine blower.
• Provide an outlet opening toward the generator
end,
somewhat higher than the inlet opening.
EXHAUST
When mounting extension exhaust pipes to the
engine, use a piece of flexible tubing between the
extensions and the engine. Fit the mufflers to the
outer end of the exhaust pipes.
WARNING
Engine exhaust can be deadlyl Never operate
the welder inside a building or confined area
without piping exhaust gases outside the enclosure.
MOBILE
MOUNTING
Installing the welder in a vehicle requires special
attention.
Rough roads and sharp corners produce
considerable strain on the welder mounting bolts.
Extra vehicle floor support may be necessary to
prevent the bolts from disengaging. Use pipe clamps
or u-bolts when securing the welder frame to the
floor.
The welder can operate at a maximum tilt of 15° sideways, 30° front
to rear.
