FUEL
SYSTEM
CARBURETOR
CLEANING
AND
INSPEC-
TION
To clean
the
carburetor, soak
all
components
thoroughly
in a
good carburetor cleaner, following
the manufacturer's instructions. Be sure to remove all
carbon from carburetor bore, especially in the area of
the throttle valve. After soaking, clean
out all
passages with filtered, compressed
air.
Check
the
adjusting needles and nozzle
for
damage.
If
the
float
is
loaded with fuel
or
damaged, replace
it.
The float should
fit
freely
on its pin
without binding.
Check the choke and
th
rottle shafts for excessive side
play and replace
if
necessary.
Carburetor repair and gasket kits are available from your nearest
Onan Parts Center.
CHOKE
FLY
CHOKE SHAfT
AND LEVER
NOTE
ON SOME MODELS ENGINES FUEL
PUMP
IS
MOUNTED DIRECTLY
TO
CARBURETOR.
SLEEVE
ASSEMBLY
FLOAT VALVE
ASSEMBLY
FLOAT
AND
LEVER
ASSEMBLY
MAIN ADJUSTING
NEEDLE
IDLE ADJUSTING
NEEDLE
THROTTLE STOP SCREW
THROTTLE SHAFT
AND LEVER
CARBURETOR
INLET PLATE
FUEL INLET
THROTTLE
FLY

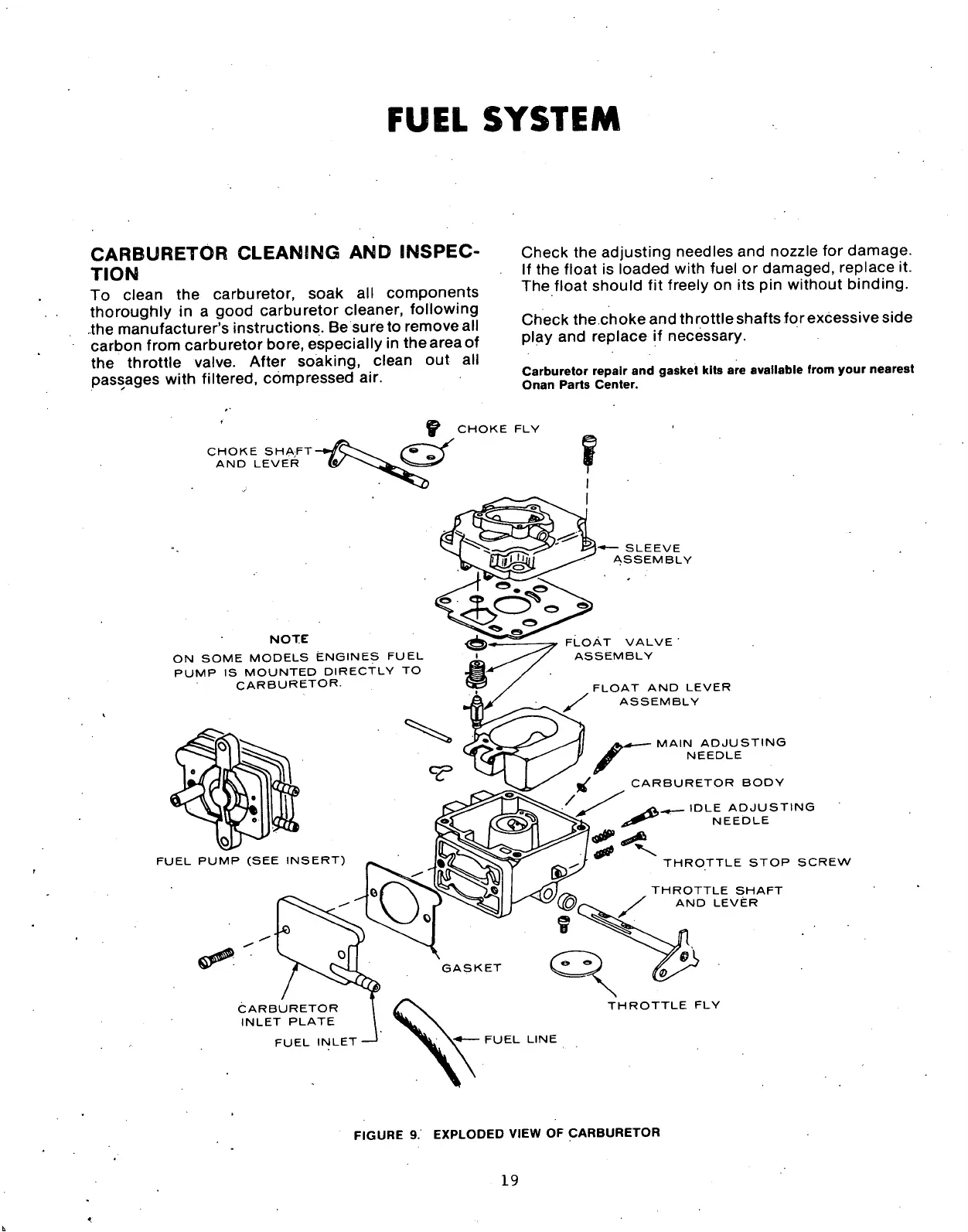

FIGURE 9. EXPLODED VIEW OF CARBURETOR
19
