Onan CCK Series User Manual

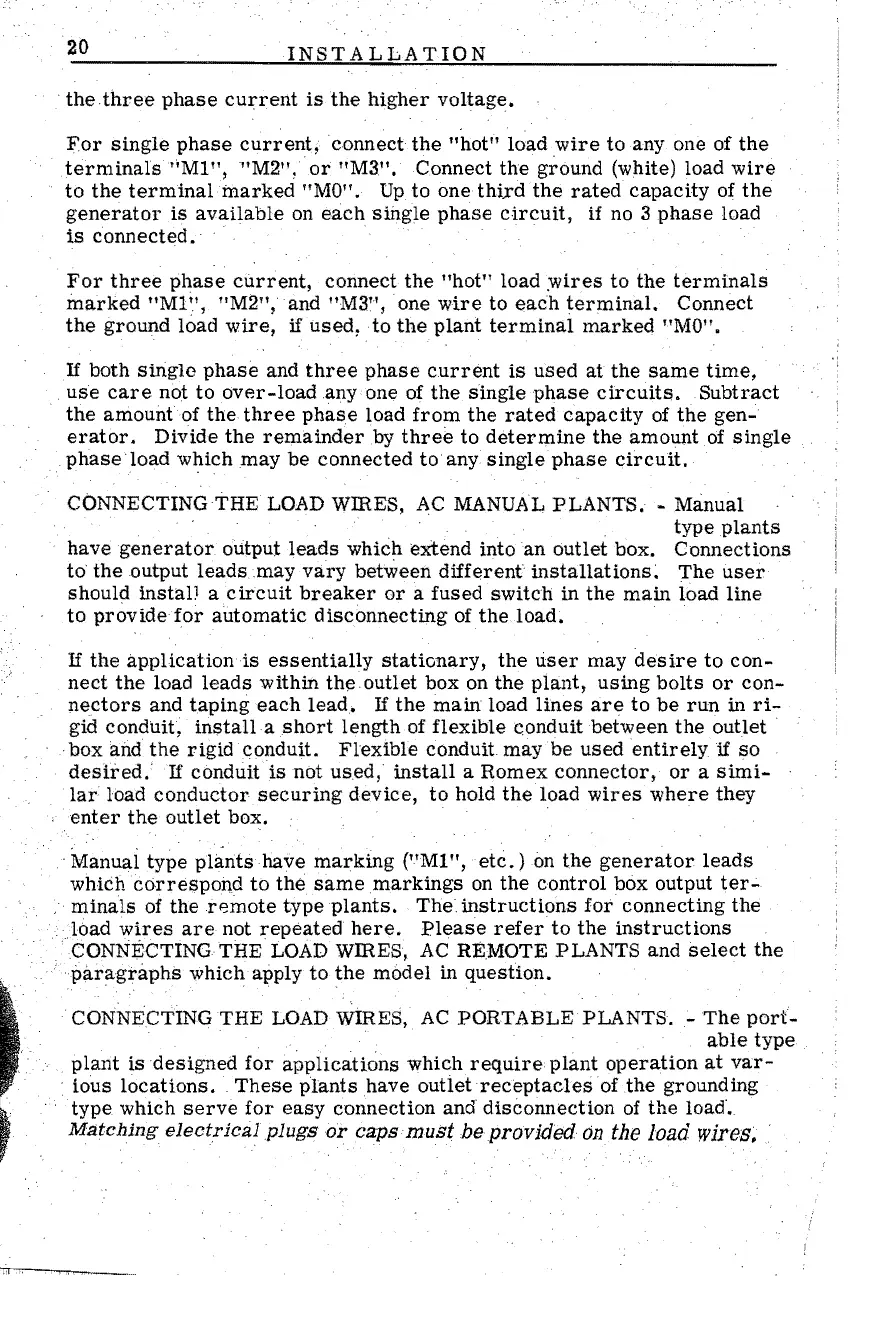

20
INSTALLATION
the three phase current is the higher voltage.
F'or single phase current, connect the "hot" load wire to anyone of the
terminals "Ml" ,"M2", or "Ma". Connect the ground (white) load wire
to the terminal marked "MO". Up to one thixd the rated capacity of the
generator is available on each sihgle phase circuit, if no 3 phase load
is connected.
For three phase current, connect the "hot" load :wires to the terminals
marked "Ml'.', "M2", and "M3", one wire to each terminal. Connect
the ground load wire, if used, to the plant terminal marked "MO".
If both Single phase and three phase current is used at the same time,
use care not to over-load .any one of the single phase circuits. Subtract
the amounfof the three phase load from the rated capacity of the gen-
erator. Divide the remainder by three to determine the amount of single
phase load which may be connected to any single phase circuit.
CONNECTING THE LOAD WillES, AC MANUAL PLANTS. - Manual
type
plants
have generator output leads which extend into an outlet box. Connections
to the output leads.may vary between different installations: The user
should instal! a circuit breaker or a fused switch in the main load line
to provide for automatic disconnecting of the load.
If the application is essentially stationary, the tiser may desire to con-
nect the load leads within the outlet box on the plant, using bolts or con-
nectors and taping each lead. If the main load lines are to be run in ri-
gid condUit, install a short length of flexible conduit between the outlet
·
box and the rigid conduit. Flexible conduit may be used entirely if so
desired. If conduit is not used, install a Romex connector, or a simi-
lar load conductor securing device, to hold the load wires where they
enter the outlet box. .
Manuai type
pla:ntshave marking ("M!", etc.) on the generator leads
which correspond to the. same markings on the control box output ter-
minals of the f8mote type plants. The. instructions for connecting the
load wires are not repeated here. Please refer to the instructions
· CONNECTING THE LOAD WillES, AC RE.MOTE PLANTS and select the
. paragraphs which apply to the model in question.
CONNECTING THE
LOAD WillES, AC PORTABLE PLANTS. - The port-
able type
plant is designed for applications which require plant operation at var-
· ious locations. These plants have outlet receptacles of the grounding
type which
serve for easy connection and disconnection of the load·,
Matching electrica,l plugs or caps must be provided on the load wires.

Onan CCK Series Specifications

General

Fuel Type	Gasoline
Fuel System	Carburetor
Frequency	60 Hz
RPM	1800 RPM
Starting System	Electric or Recoil
Starting Method	Electric or Recoil Start
Voltage	120/240V
Compression Ratio	6.5:1
Ignition System	Battery Ignition
Phase	Single-phase
