Onan CCK Series User Manual

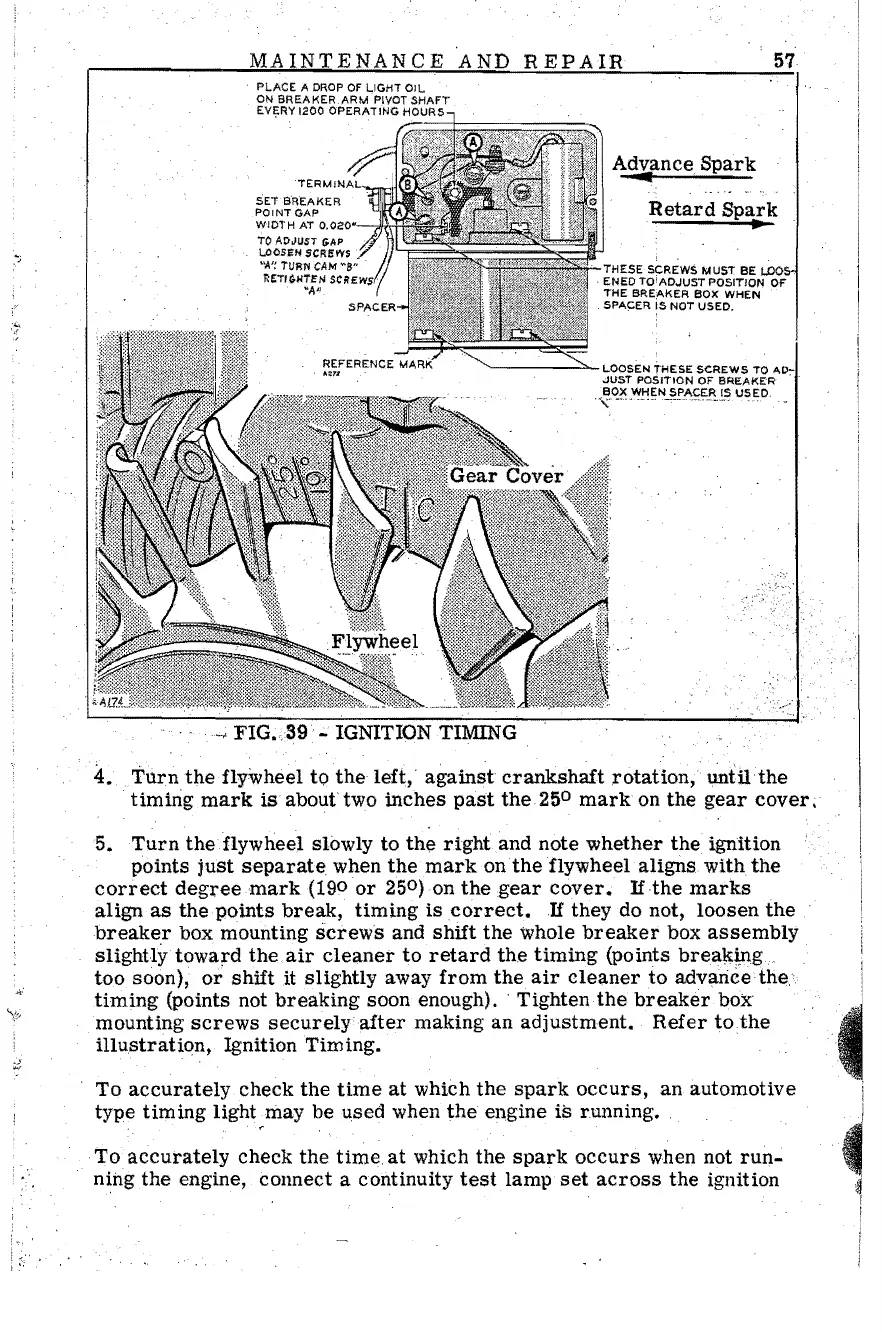

MAINTENANCE AND REPAIR 57
PLACE A DROP OF LIGHT OIL
ON BREAKER.ARM PIVOT
EV"'RY 1200
OPERATING
TERMJ
SETBREAKfR
POINT GAP
WIDTH AT 0,
TO ADJUST GAP
LOOSiH SCRE'I'IS
"A't TURN CAM
RETIGHTEN
"An
Ad,:.ance Spark
Retard Spark
..
THESE SCREWS MUST BE I..DO
. ENED TO'ADJUST POSITION OF
THE BREAKER BOX WHEN
SPACER
!S NOT USED.
'-----"'- LOOSEN THESE SCREWS TO AD-
.JUST POSITION OF BREAKER .
<~o.)( .W.He:N..!)P"'C:EB.~S USED
. .
. .
4. Turn the flywheel to the left, against crankshaft rotation, until the
timing mark is about two inches past the 25
0
mark on the gear cover;
5. Turn the flywheel slowly to the right and note whether the ignition
points just separate when the mark ontheflywheel aligns with the
correct degree mark (19
0
or 25
0
)
on the gear cover. If the marks
align as the points break, timing is correct. If they do not, loosen the
breaker box mounting screws and shift the whole breaker box assembly
slightly toward the air cleaner to retard the timing (points breairing
too soon), or shift it slightly away from the air cleaner to advaricethe,
timing (points not breaking soon enough) .. Tighten the breaker box
mounting screws securely after making an adjustment. Refer toihe
illustration, Ignition Timing.
To accurately check the time at which the spark occurs, an automotive
type timing light may be used when the engine is running.
To accurately check the time at which the spark occurs when not run-
ning the engine, connect a continuity test lamp set across the ignition

Onan CCK Series Specifications

General

Fuel Type	Gasoline
Fuel System	Carburetor
Frequency	60 Hz
RPM	1800 RPM
Starting System	Electric or Recoil
Starting Method	Electric or Recoil Start
Voltage	120/240V
Compression Ratio	6.5:1
Ignition System	Battery Ignition
Phase	Single-phase
