Onan CCK Series User Manual

56
MAINTENANCE AND REPAIR
BREAKER
MECHANISM
S~ARK~
~LUG~
WARNING
Use only a 6-volt
coil tester
J
HIGH /
TENSION
LEAD
S~ARK ~LUG

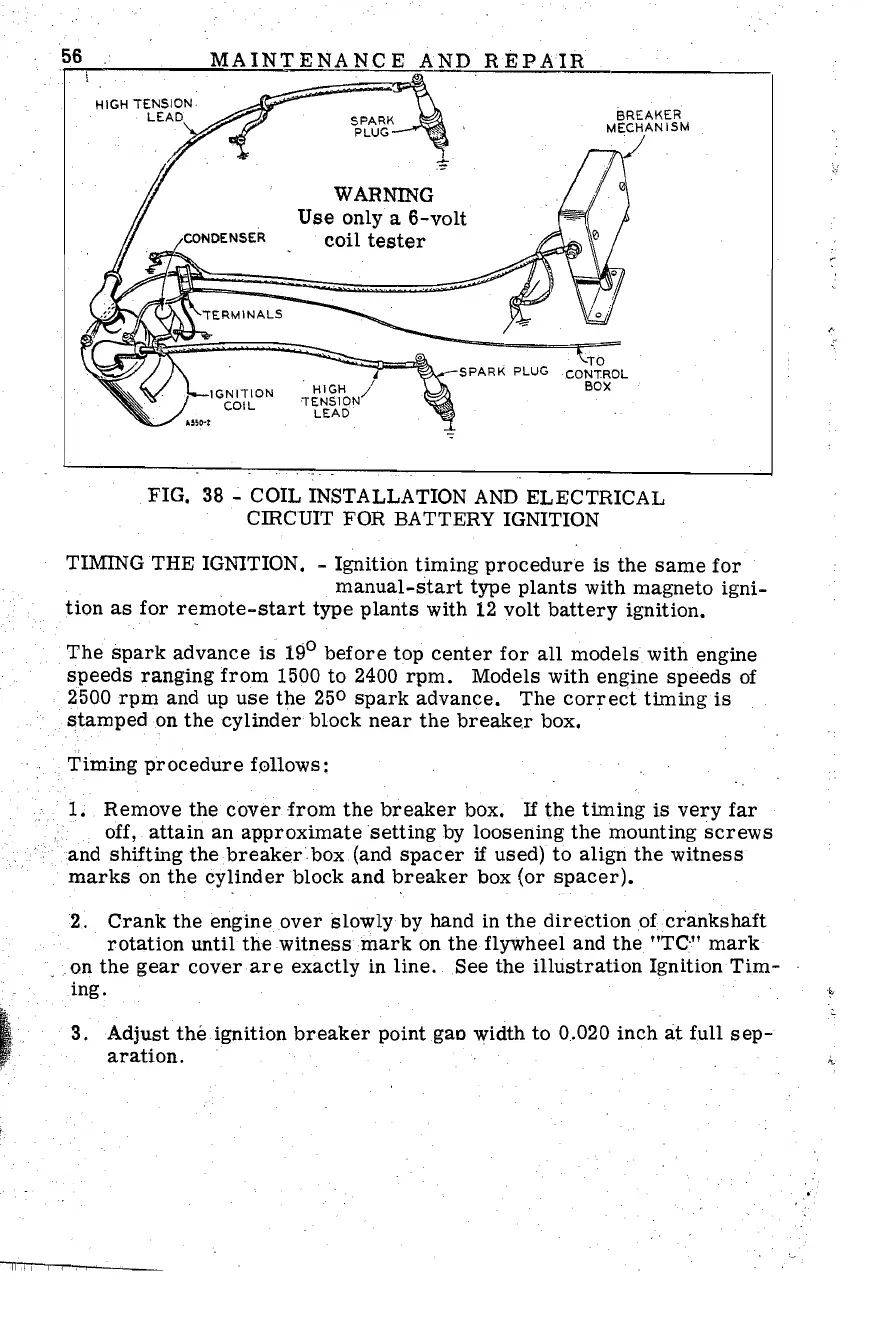

FIG. 38 - COIL INSTALLATION AND ELECTRICAL
CIRCUIT FOR BATTERY IGNITION
TIMING THE IGNITION. - Ignition
timing procedure is the same for
manual-start type plants with magneto igni-
tion as for remote-start type plants with 12 volt battery ignition.
The spark advance is 19
0
before top center for all models with engine
speeds ranging from 1500 to 2400 rpm. Models with engine speeds of
2500 rpm and up use the 25
0
spark advance. The correct timing is
stamped on the cylinder block near the breaker box.
Timing procedure follows:
1.
Remove the cover from the breaker box. If the timing is very far
off, attain an approximate setting by loosening the mounting screws
and shifting the breaker box (and spacer if used) to align the witness
marks on the cylinder block and breaker box (or spacer).
2. Crank the engine over slowly by hand in the direction of crankshaft
rotation until the witness mark on the flywheel and the "TC-" mark
. on the gear cover ar e exactly in line. See the illustration Ignition Tim-
ing.b
3. Adjust the ignition breaker point gao width to 0.020 inch at full sep-
aration.
II II i

Onan CCK Series Specifications

General

Fuel Type	Gasoline
Fuel System	Carburetor
Frequency	60 Hz
RPM	1800 RPM
Starting System	Electric or Recoil
Starting Method	Electric or Recoil Start
Voltage	120/240V
Compression Ratio	6.5:1
Ignition System	Battery Ignition
Phase	Single-phase
