MAINTENANCE AND REPAIR
55
--,-ri~,; USE OUTSIDE MOUNTING
I HOLES FOR 25° SPARK
! ADVANCE
-I-ii ..... :i-iii-r--f--fr--- usE: INSIDE MOUNTING
, If flywheel rubs on poles
loosen poleshoe mounting
screws, tap poleshoe, and
retighten mounting screws.
HOLES FOR 19° SPARK ,
ADVANCE,

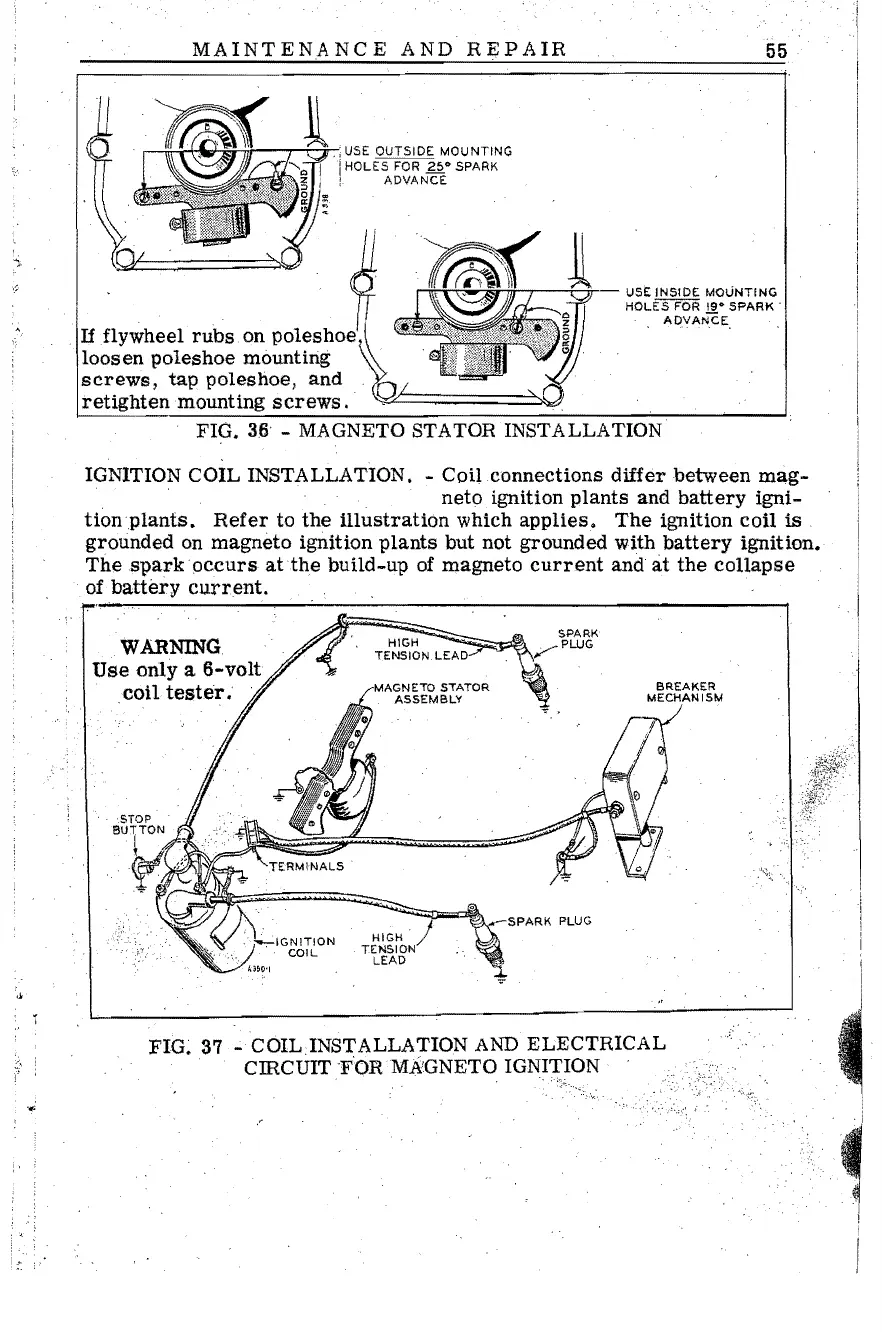

FIG. 36 - MAGNETO STATOR INSTALLATION
IGNITION COIL INSTALLATION. - Coil connections differ between mag-
, neto ignition plants and battery igni-
tionplants. Refer to the illustration which applies. The ignition coil is
grounded on magneto ignition plants but not grounded with battery ignition.
The spark occurs aUhe build-up of magneto current and at the collapse
of battery current.
HIGH
TENSION,LEAD
MAGNETO STATOR
BREAKER
ASSEMBLY
MECHANISM
SPARK PLUG
HIGH' )
TENSION
LEAD
WARNING
Use only a 6-volt
coil tester.
FIG~ 37 -COILINSTALLATION AND ELECTRICAL
CIRCUIT 'FORMA'GNETO IGNITION
.~
... ~

Onan CCK Series Specifications

General

Fuel Type	Gasoline
Fuel System	Carburetor
Frequency	60 Hz
RPM	1800 RPM
Starting System	Electric or Recoil
Starting Method	Electric or Recoil Start
Voltage	120/240V
Compression Ratio	6.5:1
Ignition System	Battery Ignition
Phase	Single-phase
