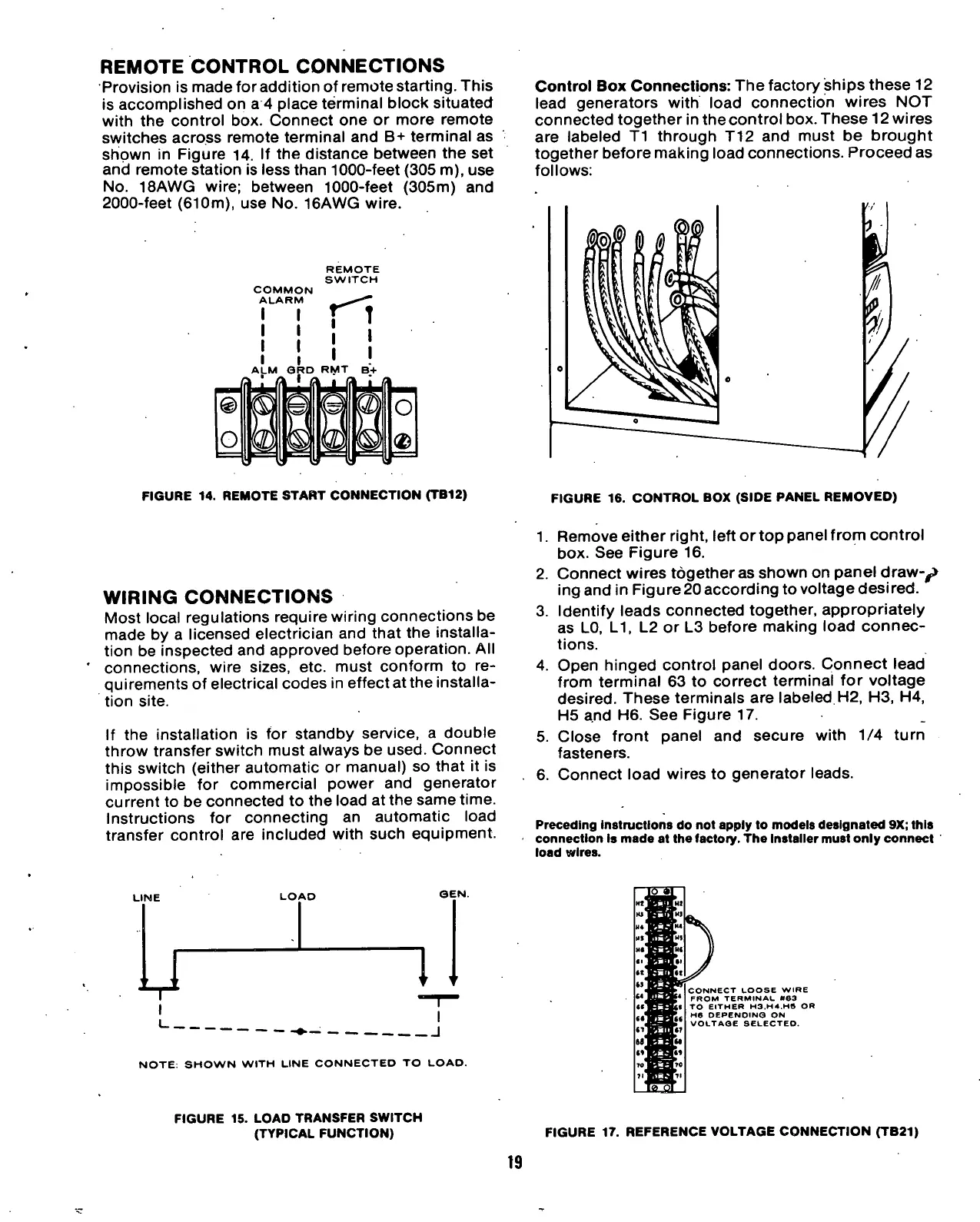

REMOTE
CONTROL
CONNECTIONS
Provision
is
made
for
addition
of
remote starting. This
is accomplished
on a 4
place terminal block situated
with
the
control
box.
Connect
one or
more remote
switches across remote terminal
and B+
terminal
as
shown
in
Figure
14. If the
distance between
the set
and remote station
is
less than 1000-feet (305 m),
use
No.
18AWG wire; between 1000-feet (305m)
and
2000-feet (610m),
use No.
16AWG wire.
COMMON
ALARM
I
Control
Box
Connections:
The
factory ships these
12
lead generators with load connection wires
NOT
connected together
in
the control box. These 12 wires
are labeled
Tl
through
T12 and
must
be
brought
together before making load connections. Proceed
as
follows:
FIGURE
14.
REMOTE START CONNECTION (TB12)
FIGURE
16.
CONTROL
BOX
(SlOE PANEL REMOVED)
WIRING CONNECTIONS
Most local regulations require wiring connections
be
made
by a
licensed electrician
and
that
the
installa-
tion
be
inspected
and
approved before operation.
All
connections, wire sizes,
etc.
must conform
to re-
quirements
of
electrical codes
in
effect
at
the installa-
tion site.
If
the
installation
is for
standby service,
a
double
throw transfer switch must always
be
used. Connect
this switch (either automatic
or
manual)
so
that
it is
impossible
for
commercial power
and
generator
current
to be
connected
to the
load
at
the same time.
Instructions
for
connecting
an
automatic load
transfer control
are
included with such equipment.
1.
Remove either right, left
or
top panel from control
box.
See
Figure
16.
2.
Connect wires together as shown
on
panel draw-^
ing and
in
Figure 20 according
to
voltage desired.
3. Identify leads connected together, appropriately
as
LO, Ll, L2 or L3
before making load connec-
tions.
4.
Open hinged control panel doors. Connect lead
from terminal
63 to
correct terminal
for
voltage
desired.
These terminals
are
labeled
H2,
H3, H4,
H5
and H6. See
Figure
17.
5. Close front panel
and
secure with
1/4
turn
fasteners.
6. Connect load wires
to
generator leads.
Preceding instructions
do not
apply
to
models designated 9X; this
connection
Is
made
at
the factory.
The
Installer must only connect
load wires.
LINE
LOAD
SEN.
NOTE.
SHOWN WITH LINE CONNECTED
TO
LOAD.
CONNECT LOOSE WIRE
FROM TERMINAL
063
TO EITHER H3.M4.HS
OR
He OEPENOINO
ON
VOLTAOE SELECTED.
FIGURE
15.
LOAD TRANSFER SWITCH
(TYPICAL FUNCTION)
FIGURE
17.
REFERENCE VOLTAGE CONNECTION (TB21)
