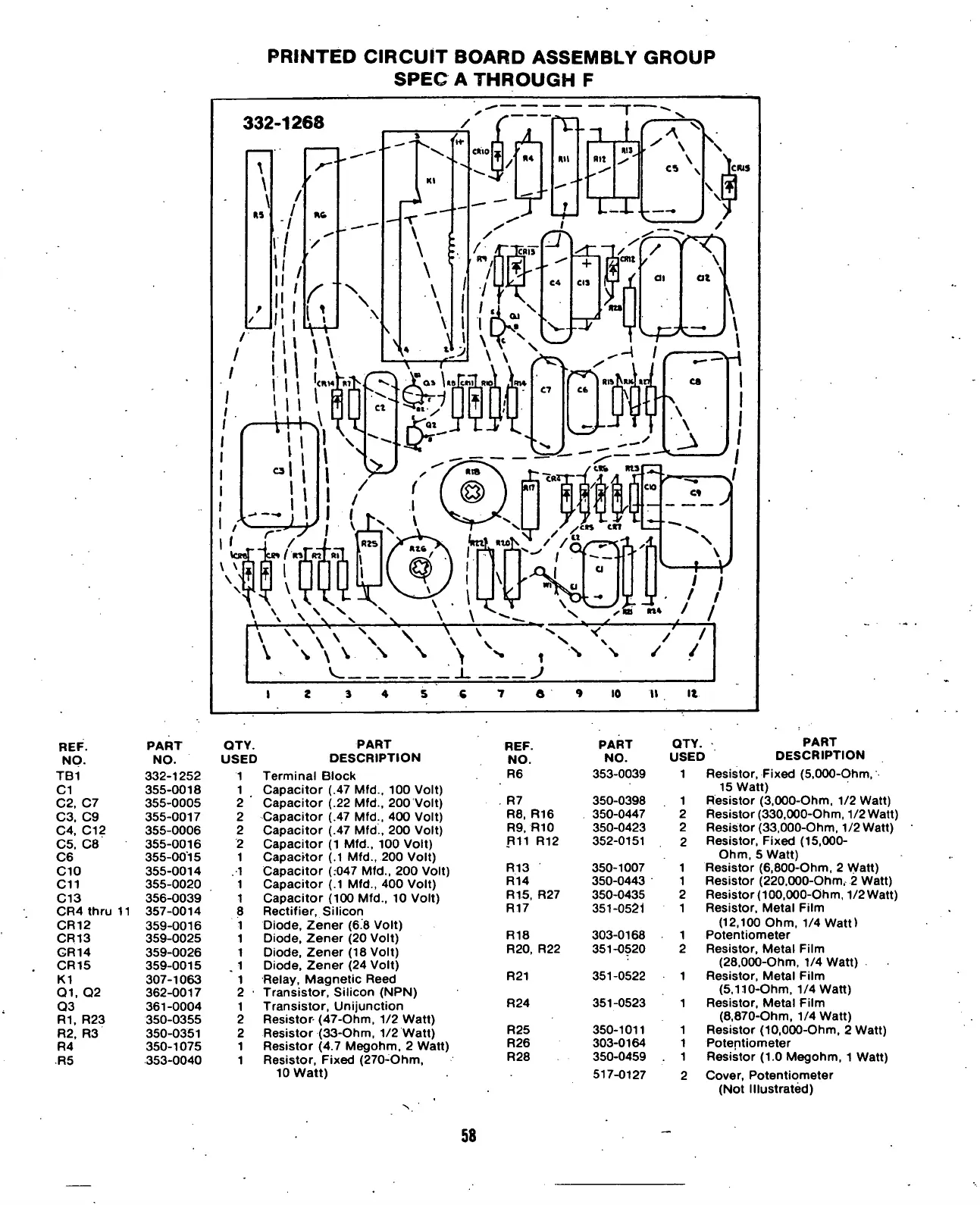

PRINTED CIRCUfT BOARD ASSEMBLY GROUP
SPEC A THROUGH F
332-1268
y-l
Kl
^
—•
-r
\
\
* ,
\
1
/
I
\
1
\
1
>
\ 1
t
r
-1 f
«.\
mt
«.\ «.\
10
It
REF.
PART
QTY.
PART
REF.
PART
QTY.
PART
NO.
NO.
USED
DESCRIPTION
NO.
NO.
USED DESCRIPTION
TBI 332-1252 1
Terminal Block
R6 353-0039
1
Resistor, Fixed (5,000-Ohm,
Cl
355-0018 1 Capacitor (.47 Mfd., 100 Volt)
15 Watt)
C2. C7 355-0005
2 Capacitor (.22 Mfd., 200 Volt)
R7 350-0398 1 Resistor (3,000-Ohm, 1/2 Watt)
C3. C9
355-0017 2 Capacitor (.47 Mfd., 400 Volt)
R8, R16 350-0447 2 Resistor (330.000-Ohm, 1/2 Watt)
C4, C12
355-0006
2 Capacitor (.47 Mfd., 200 Volt)
R9, R10 350-0423 2 Resistor (33,000-Ohm, 1/2 Watt)
C5, C8
355-0016
2
Capacitor (1 Mfd., 100 Volt)
RII R12 352-0151 2 Resistor, Fixed (15,000-
C6
355-0015
1
Capacrtor (.1 Mfd., 200 Volt)
Ohm, 5 Watt)
CIO
355-0014
.•1
Capacitor (.047 Mfd., 200 Volt)
R13 350-1007 1 Resistor (6,800-Ohm, 2 Watt)
Cll
355-0020 1
Capacitor (.1 Mfd., 400 Volt)
R14 350-0443 1 Resistor (220,000-Ohm, 2 Watt)
C13 356-0039 1 Capacitor (100 Mfd., 10 Volt)
R15, R27 350-0435 2 Resistor (100,000-Ohm, 1/2 Watt)
CR4 thru 11
357-0014
8 Rectifier, Silicon
R17 351-0521 1 Resistor, Metal Film
CR12
359-0016
1 Diode, Zener (6.8 Volt)
(12,100 Ohm, 1/4 Watt)
CR13 359-0025
1
Diode. Zener (20 Volt)
R18 303-0168 1 Potentiometer
GR14
359-0026
1 Diode. Zener (18 Volt)
R20, R22 351-0520 2 Resistor, Metal Film
CR15 359-0015
. 1
Diode, Zener (24 Volt)
(28,000-Ohm, 1/4 Watt)
Kl
307-1063 1
Relay, Magnetic Reed
R21 351-0522 1 Resistor, Metal Film
Ql. Q2
362-0017 2
Transistor, Silicon (NPN)
(5,110-Ohm, 1/4 Watt)
Q3
361-0004
1
Transistor, Unijunction
R24 351-0523 1 Resistor, Metal Film
Rl, R23 350-0355
2
Resistor (47-Ohm, 1/2 Watt) (8,870-Ohm, 1/4 Watt)
R2, R3 350-0351
2
Resistor (33-Ohm, 1/2 Watt)
R25 350-1011 1 Resistor (10,000-Ohm, 2 Watt)
R4 350-1075 1
Resistor (4.7 Megohm, 2 Watt)
R26 303-0164 1 Potentiometer
.R5
353-0040 1
Resistor, Fixed (270-Ohm,
R28 350-0459 . 1 Resistor (1.0 Megohm, 1 Watt)
10 Watt)
517-0127
2
Cover, Potentiometer
(Not Illustrated)
58
