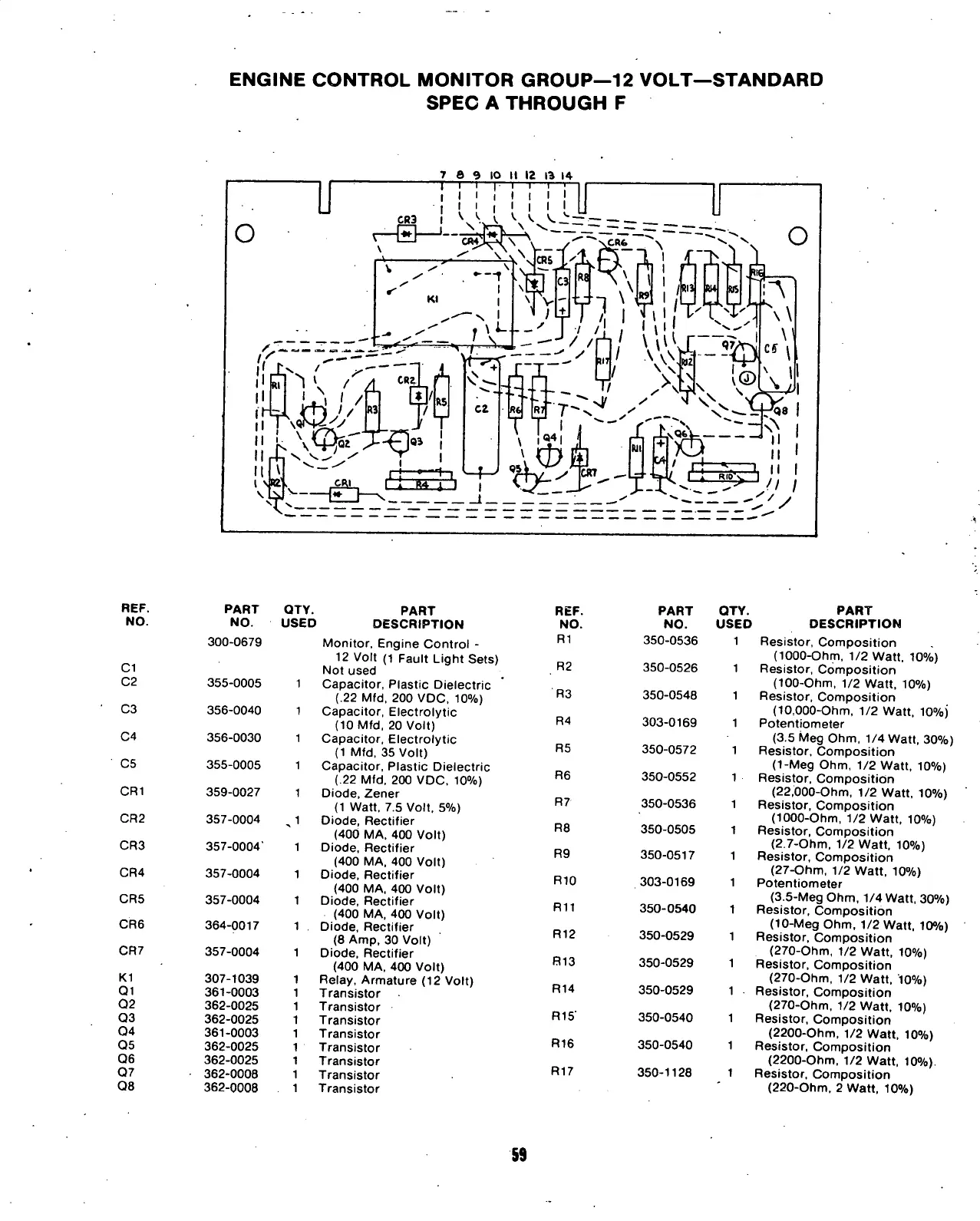

Onan DYC Series - Engine Control Monitor Group - 12 Volt - Standard - Spec a through F (300-0769)

ENGINE CONTROL MONITOR GROUP—12 VOLT—STANDARD
SPEC A THROUGH F
7 6 9 IO II 12 13 14
o
CR3
-ra
. ~i—r-i—i—r
liilii!
l ] l ' I I
i ^ S v ^ v. ^J:^—— —
REF. PART QTY. PART
NO. NO. USED DESCRIPTION
300-0679 Monitor, Engine Control -
12 Volt (i Fault Light Sets)
Cl Not used
C2 355-0005 1 Capacitor, Plastic Dielectric
(.22 Mfd, 200 VDC, 10%)
C3 356-0040 1 Capacitor, Electrolytic
(10 Mfd, 20 Volt)
C4 356-0030 1 Capacitor, Electrolytic
(1 Mfd, 35 Volt)
C5 355-0005 1 Capacitor, Plastic Dielectric
(.22 Mfd, 200 VDC, 10%)
CRI 359-0027 1 Diode, Zener
(1 Watt, 7.5 Volt, 5%)
CR2 357-0004 ^ 1 Diode, Rectifier
(400 MA, 400 Volt)
CR3 357-0004' 1 Diode, Rectifier
(400 MA, 400 Volt)
CR4 357-0004 1 Diode, Rectifier
(400 MA, 400 Volt)
CRS 357-0004 1 Diode, Rectifier
(400 MA, 400 Volt)
CR6 364-0017 1 . Diode, Rectifier
(8 Amp, 30 Volt)
CR7 357-0004 1 Diode, Rectifier
(400 MA, 400 Volt)
Kl 307-1039 1 Relay, Armature (12 Volt)
Ql 361-0003 1 Transistor .
Q2 362-0025 1 Transistor
Q3 362-0025 1 Transistor
Q4 361-0003 1 Transistor
Q5 362-0025 1 Transistor
Q6 362-0025 1 Transistor
Q7 362-0008 1 Transistor
Q8 362-0008 1 Transistor
REF.
NO.
Rl
R2
R3
R4
R5
R6
R7
R8
R9
R10
RII
R12
R13
R14
R15'
R16
R17
PART QTY. PART
NO. USEO DESCRIPTION
350-0536 1 Resistor, Composition
(1000-Ohm, 1/2 Watt, 10%)
350-0526 1 Resistor, Composition
(100-Ohm, 1/2 Watt, 10%)
350-0548 1 Resistor, Composition
(10,000-Ohm, 1/2 Watt, 10%)
303-0169 1 Potentiometer
(3.5 Meg Ohm, 1/4 Watt, 30%)
350-0572 1 Resistor, Composition
(1-Meg Ohm, 1/2 Watt, 10%)
350-0552 1 Resistor, Composition
(22,000-Ohm, 1/2 Watt, 10%)
350-0536 1 Resistor, Composition
(1000-Ohm, 1/2 Watt, 10%)
350-0505 1 Resistor, Composition
(2.7-Ohm, 1/2 Watt, 10%)
350-0517 1 Resistor, Composition
(27-Ohm, 1/2 Watt, 10%)
.303-0169 1 Potentiometer
(3.5-Meg Ohm, 1/4 Watt, 30%)
350-0540 1 Resistor, Composition
(10-Meg Ohm, 1/2 Watt, 10%)
350-0529 1 Resistor, Composition
(270-Ohm, 1/2 Watt, 10%)
350-0529 1 Resistor, Composition
(270-Ohm, 1/2 Watt, 10%)
350-0529 1 Resistor, Composition
(270-Ohm, 1/2 Watt, 10%)
350-0540 1 Resistor, Composition
(2200-Ohm, 1/2 Watt, 10%)
350-0540 1 Resistor, Composition
(2200-Ohm, 1/2 Watt, 10%).
350-1128 1 Resistor, Composition
(220-Ohm, 2 Watt, 10%)
59
