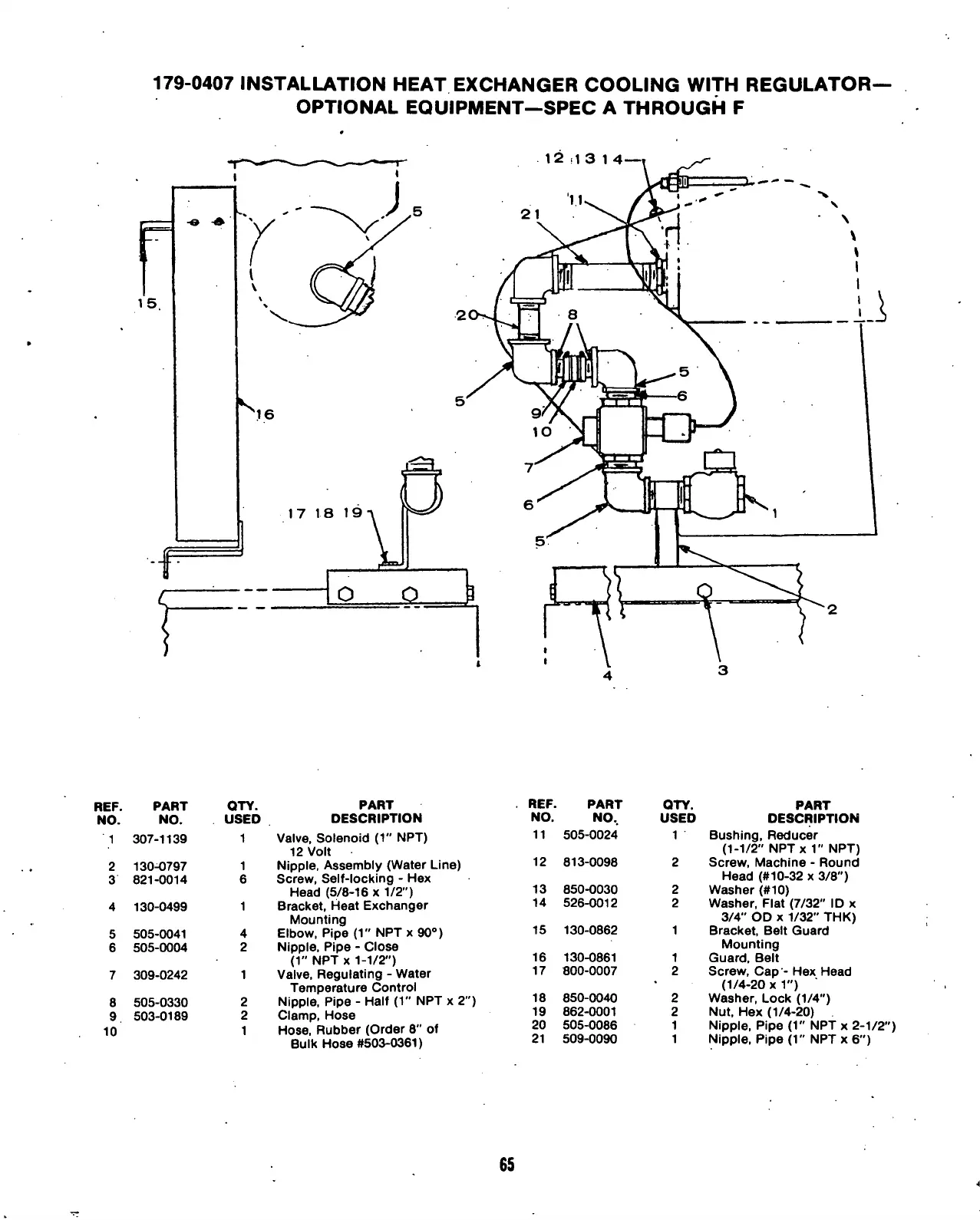

179-0407 INSTALLATION HEAT EXCHANGER COOLING WITH REGULATOR-
OPTIONAL EQUIPMENT—SPEC A THROUGH F
12 ,1 3 1 4
17 18 19-\
O O 3 O O 3
REF.
PART
QTY.
PART
NO.
NO.
USEO
DESCRIPTION
1 307-1139
1
Valve, Solenoid (1" NPT)
12 Volt
2 130-0797
1
Nipple, Assembly (Water Line)
3
821-0014
6 Screw, Self-locking - Hex
Head (5/8-16 x 1/2")
4
130-0499
1
Bracket, Heat Exchanger
Mounting
5
505-0041
4 Elbow, Pipe (1" NPT x 90°)
6
505-0004
2 Nipple, Pipe - Close
(1" NPT x 1-1/2")
7
309-0242 1
Valve, Regulating - Water
Temperature Control
8 505-0330
2 Nipple, Pipe - Half (1" NPT x 2")
9
503-0189
2 Clamp, Hose
10
1
Hose, Rubber (Order 8" of
Bulk Hose #503-0361)
REF.
PART
QTY.
PART
NO.
NO..
USEO DESCRIPTION
11
505-0024
1
Bushing, Reducer
(1-1/2" NPTx 1" NPT)
12
813-0098
2
Screw, Machine - Round
Head (#10-32 x 3/8")
13 850-0030 2 Washer (#10)
14
526-0012 2
Washer, Flat (7/32" ID x
3/4" OD x 1/32" THK)
15 130-0862 1
Bracket, Belt Guard
Mounting
16 130-0861 1
Guard, Belt
17 800-0007 2 Screw, Cap - Hex Head
•
(1/4-20 x 1")
18 850-0040 2 Washer, Lock (1/4")
19 862-0001 2
Nut, Hex (1/4-20)
20
505-0086
1 Nipple, Pipe (1" NPT x 2-1/2")
21 509-0090 1
Nipple, Pipe(1" NPT x 6")
65
