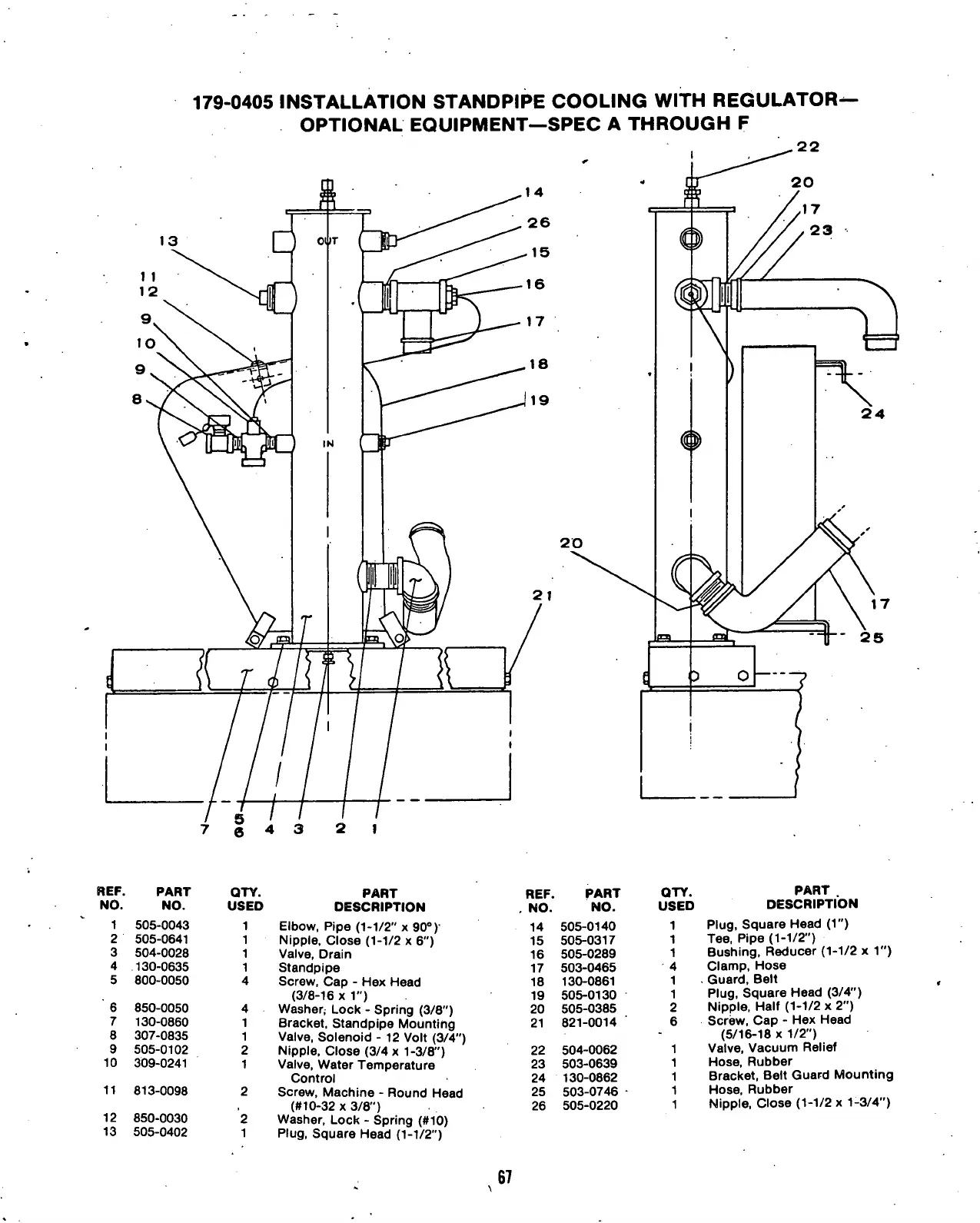

179-0405 INSTALLATION STANDPIPE COOLING WITH REGULATOR-
OPTIONAL EQUIPMENT—SPEC A THROUGH F
22
REF.
PART
QTY.
NO.
NO.
USED
1
505-0043
1
2
505-0641
1
3
504-0028
1
4
130-0635 1
5
800-0050 4
6
850-0050
4
7
130-0860 1
8
307-0835
1
9
505-0102
2
10
309-0241
1
11
813-0098 2
12
850-0030
2
13
505-0402 1
PART
DESCRIPTION
Elbow, Pipe (1-1/2" x 90°)
Nipple, Close (1-1/2 x 6")
Valve, Drain
Standpipe
Screw, Cap - Hex Head
(3/8-16 x 1")
Washer, Lock - Spring (3/8")
Bracket, Standpipe Mounting
Valve, Solenoid - 12 Volt (3/4")
Nipple. Close (3/4 x 1-3/8")
Valve, Water Temperature
Control
Screw, Machine - Round Head
(#10-32 x 3/8")
Washer, Lock - Spring (#10)
Plug, Square Head (1-1/2")
REF.
PART
QTY.
PART
NO.
NO.
USED
DESCRIPTION
14
505-0140
1
Plug, Square Head (1")
15
505-0317
1 Tee, Pipe (1-1/2")
16
505-0289
1
Bushing, Reducer (1-1/2 x 1")
17
503-0465
4 Clamp, Hose
18
130-0861
1
. Guard, Belt
19
505-0130
1 Plug, Square Head (3/4")
20
505-0385
2
Nipple. Half (1-1/2 x 2")
21
821-0014
6
Screw, Cap - Hex Head
-
(5/16-18 x 1/2")
22
504-0062
1
Valve, Vacuum Relief
23
503-0639
1
Hose, Rubber
24
130-0862
1
Bracket, Belt Guard Mounting
25 503-0746 •
1
Hose, Rubber
26
505-0220
1
Nipple, Close (1-1/2 x 1-3/4")
67
