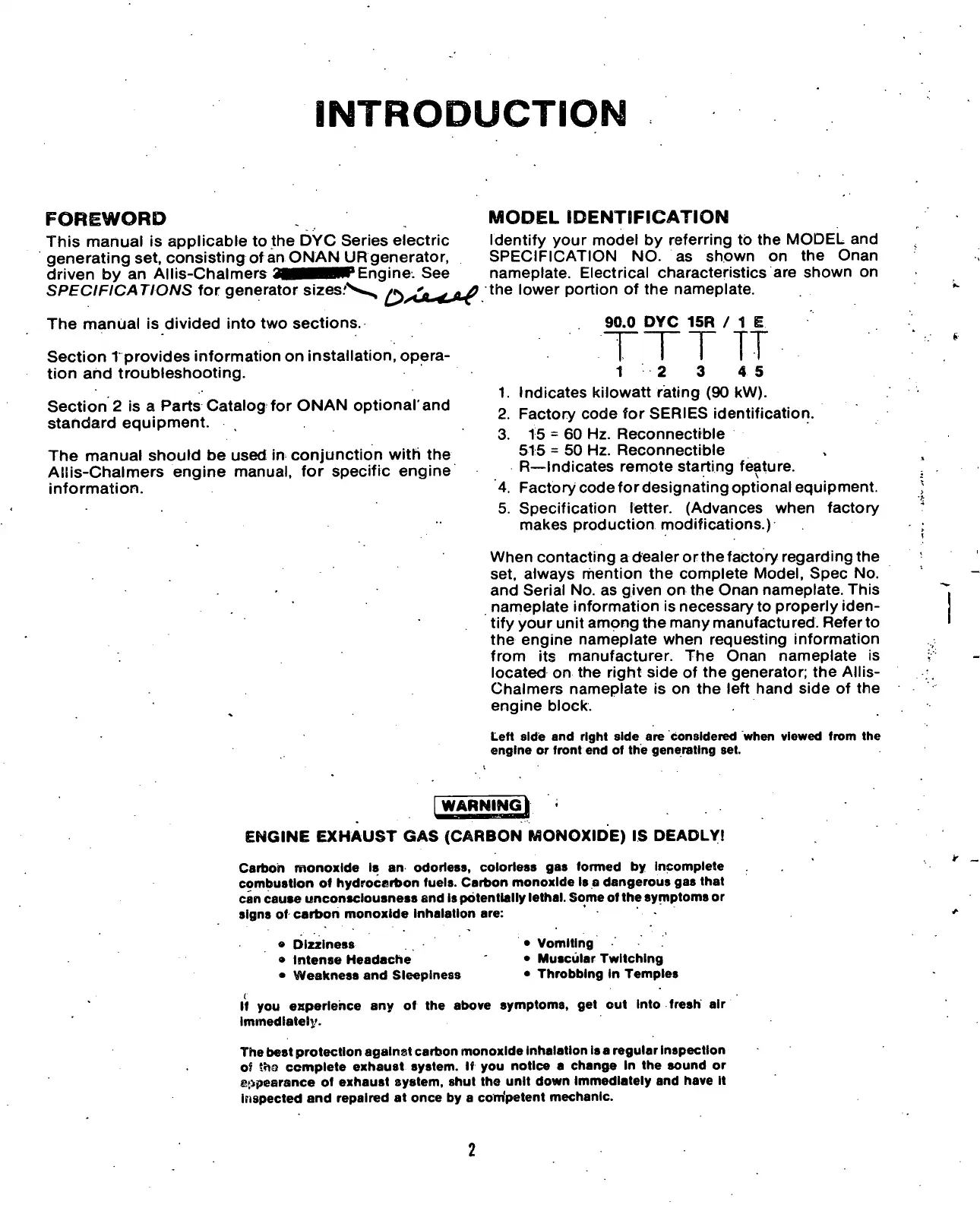

INTRODUCTION
FOREWORD
MODEL
IDENTIFICATION
This
manual is applicable to the DYC
Series
electric
Identify
your model by referring tb the MODEL and
generating set,
consisting
of an ONAN UR generator, SPECIFICATION NO. as shown on the Onan
driven by an
Allis-Chalmers
3iMHHMPEngine. See nameplate. Electrical characteristics are shown on
SPECIFICATIONS
for generator
sizes.'V^
f^
i
Xju4JL#
the lower
P
ortion of the
nameplate.
The
manual is divided into two
sections.
90.0 DYC 15R / 1
Section
T provides information on installation, opera-
tion
ahd troubleshooting.
Section
2 is a Parts Catalog for ONAN optional'and
stahdard
equipment.
The
manual should be used in conjunction
with
the
Allis-Chalmers
engine manual, for specific engine
information.
1 2 3 4 5
1. Indicates kilowatt rating (90 kW).
2.
Factory code for
SERIES
identification.
3. 15 = 60 Hz. Reconnectible
515 = 50 Hz. Reconnectible
R—Indicates
remote starting feature.
4. Factory codefordesignating optional equipment.
5. Specification
letter.
(Advances when factory
makes
production modifications.)
When contacting a dealer orthe factory regarding the
set,
always mention the complete Model,
Spec
No.
and Serial No. as given on the Onan nameplate. This
nameplate information is
necessaryto
properly iden-
tify
your unit among the many manufactured. Referto
the engine nameplate when requesting information
from
its manufacturer. The Onan nameplate is
located on the right side of the generator; the
Allis-
Chalmers
nameplate is on the
left
hand side of the
engine block.
Left side and right side are considered when viewed
from
the
engine or
front
end of the generating set.
WARNINGI
ENGINE
EXHAUST GAS (CARBON MONOXIDE) IS
DEADLY!
Carbon
monoxide Is an odorless, colorless gas fonned by incomplete
combustion
of hydrocerbon fuels. Carbon monoxide Is a dangerous gas
that
can
cause
unconsciousness
snd
is
potentially
lethal.
Some
of the
symptoms
or
signs
of carbon monoxide inhalation are:
• Dizziness
• Intense Headache
• Weakness and
Sleepiness
Vomiting
Muscular
Twitching
Throbbing In Temples
If you experience any of the above symptoms, get out into fresh air
immediately.
The
best
protection
against
carbon
monoxide Inhalation
is
a
regular
inspection
of ths complete exhaust
system.
If you notice a change In the sound or
appearance
of exhaust
system,
shut the unit down immediately and have It
inspected
and repaired at once by a competent mechanic.
