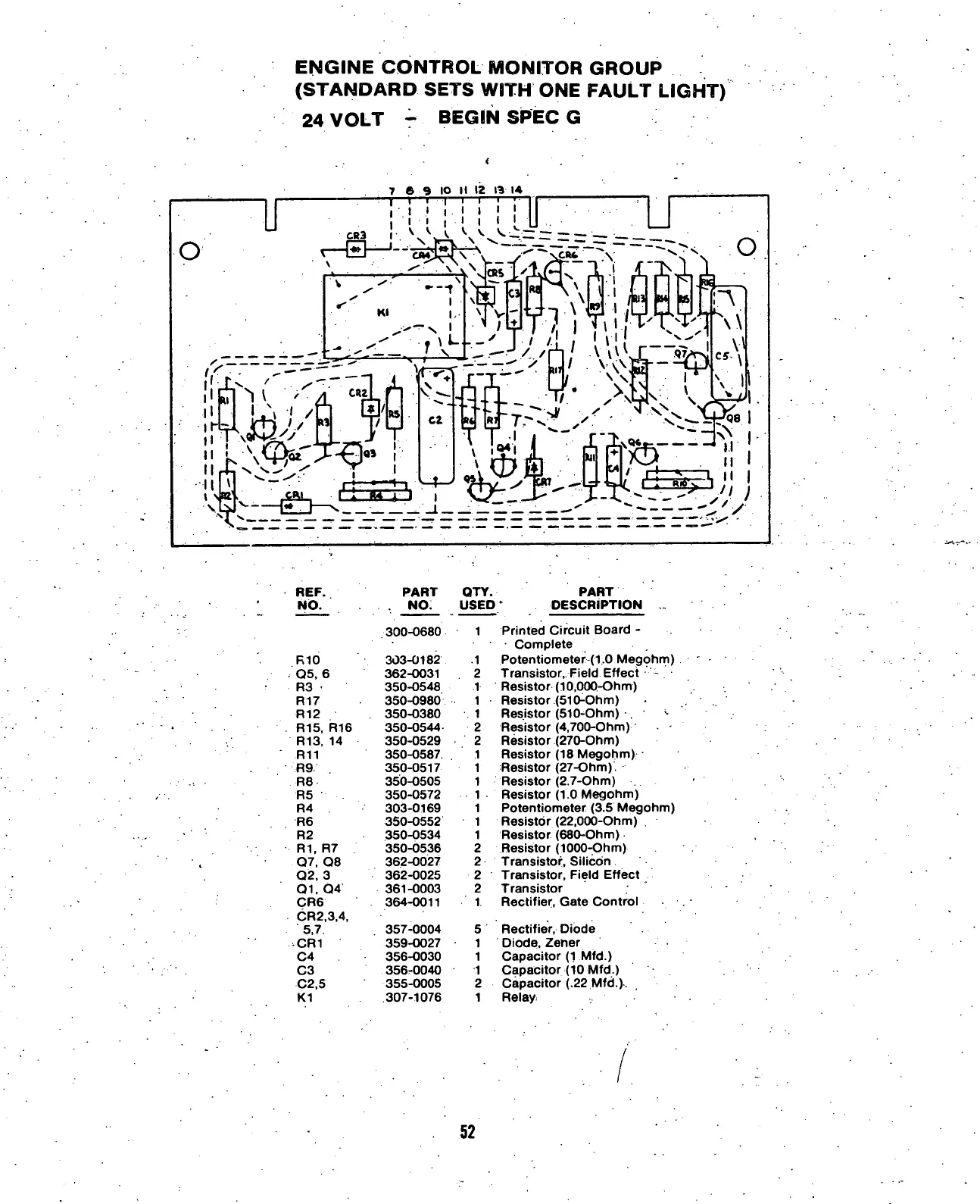

ENGINE CONTROL MONITOR GROUP
(STANDARD SETS WITH ONE FAULT LIGHT)
24 VOLT - BEGIN SPEC G
u
11
if
il
ll
II
V
/
i
"A
\\
V
REF. PART OTY. PART
NO.
. NO.
USED DESCRIPTION ..
300-0680
1
Prinfed Circuit Board-
• Complete
RIO
303-0182
1
Potentiometer (1.0 Megohm)
Q5, 6 362-0031
2
Transistor, Field Effect -
R3 •
350-0548
1
Resistor (10,000-Ohm)
R17 350-0980
1 Resistor (510-Ohm)
R12 350-0380 1
Resistor (510-Ohm) . ••
R15, R16
350-0544 2 Resistor (4,700-Ohm)
R13, 14
350-0529 2
Resistor (270-Ohm)
RII
350-0587. 1 Resistor (18 Megohm)
R9 .
350-0517
1
Resistor (27-Ohm) .
R8
350-0505 1 Resistor (2.7-Ohm)
R5
350-0572 1
Resistor (1.0 Megohm)
R4 303-0169
1 Potentiometer (3.5 Megohm)
R6 350-0552
1
Resistor (22,000-Ohm)
R2
350-0534 1
Resistor (680-Ohm)
R1,R7 350-0536
2 Resistor (lOOO-Ohm)
Q7, Q8
362-0027 2
Transistor, Silicon
Q2, 3 362-0025
2
Transistor, Field Effect
Ql, Q4
361-0003
2
Transistor
CR6 364-0011
1
Rectifier, Gate Control
CR2,3,4
1
5,7 357-0004 5 Rectifier, Diode
CRI
359-0027
1
Diode, Zener
C4 356-0030 1
Capacitor (1 Mfd.)
C3 356r0040 1
Capacitor (10 Mfd.)
C2,5
355-0005 2 Capacitor (.22 Mfd.).
Kl
307-1076 1 Relay:
52
