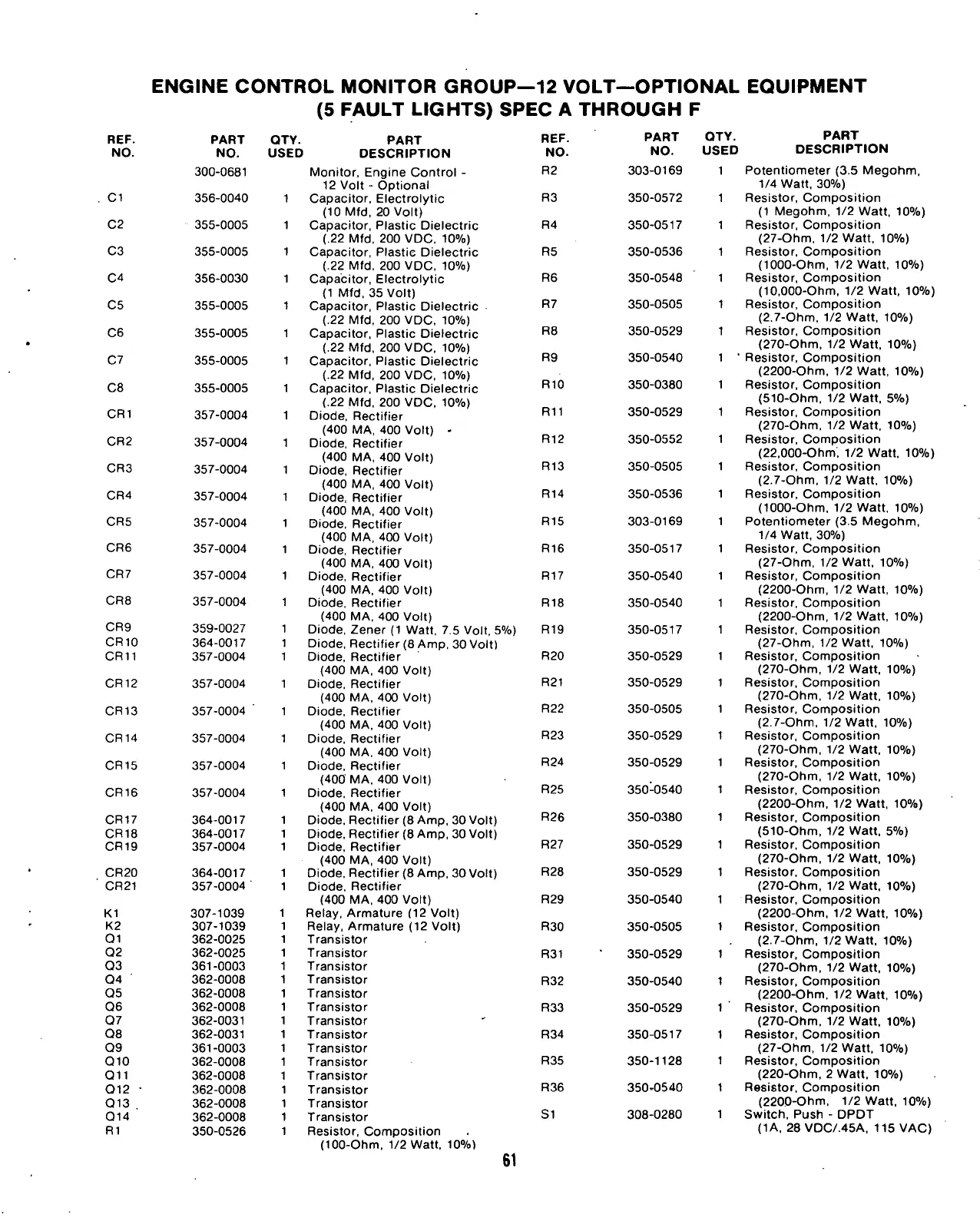

ENGINE
CONTROL
MONITOR
GROUP—12
VOLT—OPTIONAL EQUIPMENT
(5
FAULT
LIGHTS)
SPEC
A THROUGH F
REF.
PART
QTY.
PART
REF.
PART
QTY. PART
NO.
NO.
USEO
DESCRIPTION
NO.
NO.
USED DESCRIPTION
300-0681
Monitor, Engine Control -
R2 303-0169 1 Potentiometer (3.5 Megohm,
12 Volt - Optional
1/4 Watt, 30%)
Cl 356-0040 1 Capacitor, Electrolytic R3 350-0572 1 Resistor, Composition
(10 Mfd, 20 Volt) (1 Megohm, 1/2 Watt, 10%)
C2 355-0005 1 Capacitor, Plastic Dielectric R4 350-0517 1 Resistor, Composition
(.22 Mfd, 200 VDC, 10%)
(27-Ohm,
1/2 Watt, 10%)
C3 355-0005 1
Capacitor. Plastic Dielectric
R5 350-0536 1 Resistor, Composition
(.22 Mfd, 200 VDC, 10%)
(1000-Ohm, 1/2 Watt, 10%)
C4 356-0030 1
Capacitor, Electrolytic
R6 350-0548 1 Resistor, Composition
(1 Mfd, 35 Volt)
(10,000-Ohm, 1/2 Watt, 10%)
C5
355-0005 1
Capacitor, Plastic Dielectric
R7 350-0505 1 Resistor, Composition
(.22 Mfd, 200 VDC, 10%)
(2.7-Ohm,
1/2 Watt, 10%)
C6
355-0005 1
Capacitor, Plastic Dielectric
R8 350-0529 1 Resistor, Composition
(.22 Mfd, 200 VDC, 10%)
(270-Ohm,
1/2 Watt, 10%)
C7
355-0005
1
Capacitor, Plastic Dielectric
R9 350-0540 1 ' Resistor, Composition
(.22 Mfd, 200 VDC, 10%)
(2200-Ohm, 1/2 Watt, 10%)
C8
355-0005 1
Capacitor, Plastic Dielectric
R10 350-0380 1 Resistor, Composition
(.22 Mfd, 200 VDC, 10%)
(510-Ohm,
1/2 Watt, 5%)
CRI
357-0004 1
Diode, Rectifier
RII 350-0529 1 Resistor, Composition
(400 MA, 400 Volt) -
(270-Ohm,
1/2 Watt, 10%)
CR2
357-0004
1
Diode, Rectifier
R12 350-0552 1 Resistor, Composition
(400 MA, 400 Volt)
(22,000-Ohm, 1/2 Watt, 10%)
CRS
357-0004
1
Diode, Rectifier
R13 350-0505 1 Resistor, Composition
(400 MA, 400 Volt)
(2.7-Ohm,
1/2 Watt, 10%)
CR4
357-0004
1
Diode, Rectifier
R14 350-0536 1 Resistor, Composition
(400 MA, 400 Volt)
(1000-Ohm, 1/2 Watt, 10%)
CRS 357-0004 1
Diode, Rectifier
R15 303-0169 1 Potentiometer (3.5 Megohm,
(400 MA, 400 Volt)
1/4 Watt, 30%)
CR6 357-0004 1
Diode, Rectifier
R16 350-0517 1 Resistor. Composition
CR7
(400 MA, 400 Volt)
(27-Ohm,
1/2 Watt, 10%)
CR7
357-0004 1
Diode, Rectifier
R17 350-0540 1 Resistor, Composition
CRS
(400 MA, 400 Volt)
(2200-Ohm, 1/2 Watt, 10%)
CRS
357-0004 1 Diode, Rectifier R18 350-0540 1 Resistor, Composition
CR9
(400 MA, 400 Volt)
(2200-Ohm, 1/2 Watt, 10%)
CR9
359-0027 1
Diode, Zener (1 Watt, 7.5 Volt, 5%)
R19 350-0517 1 Resistor, Composition
CRIO 364-0017 1
Diode, Rectifier (8 Amp. 30 Volt)
(27-Ohm,
1/2 Watt, 10%)
CRII 357-0004 1 Diode, Rectifier R20 350-0529 1 Resistor, Composition
(400 MA, 400 Volt)
(270-Ohm,
1/2 Watt, 10%)
CR12 357-0004 1
Diode, Rectifier
R21 350-0529 1 Resistor, Composition
(400 MA, 400 Volt)
(270-Ohm,
1/2 Watt, 10%)
CR13
357-0004 ' 1
Diode, Rectifier
R22 350-0505 1 Resistor, Composition
(400 MA, 400 Volt)
(2.7-Ohm,
1/2 Watt, 10%)
CRM
357-0004
1
Diode, Rectifier
R23 350-0529 1 Resistor, Composition
(400 MA. 400 Volt)
(270-Ohm,
1/2 Watt, 10%)
CR15
357-0004 1
Diode, Rectifier
R24 350-0529 1 Resistor, Composition
(400 MA, 400 Volt)
(270-Ohm,
1/2 Watt, 10%)
CR16 357-0004 1
Diode, Rectifier
R25 350-0540 1 Resistor, Composition
(400 MA, 400 Volt)
(2200-Ohm, 1/2 Watt, 10%)
CR17
364-0017 1
Diode, Rectifier (8 Amp, 30 Volt)
R26 350-0380 1 Resistor, Composition
CR18
364-0017
1
Diode, Rectifier (8 Amp, 30 Volt)
(510-Ohm,
1/2 Watt, 5%)
CR19
357-0004 1
Diode, Rectifier
R27 350-0529 1 Resistor, Composition
(400 MA, 400 Volt)
(270-Ohm,
1/2 Watt, 10%)
CR20 364-0017 1
Diode, Rectifier (8 Amp, 30 Volt)
R28 350-0529 1 Resistor, Composition
CR21 357-0004 1 Diode. Rectifier
(270-Ohm,
1/2 Watt, 10%)
(400 MA, 400 Volt) R29 350-0540 1 Resistor, Composition
Kl 307-1039
1
Relay, Armature (12 Volt) (2200-Ohm, 1/2 Watt, 10%)
K2 307-1039 1 Relay, Armature (12 Volt) R30 350-0505 1 Resistor, Composition
Ql 362-0025 1 Transistor
(2.7-Ohm,
1/2 Watt, 10%)
Q2 362-0025 1 Transistor
R31 350-0529 1 Resistor, Composition
Q3 361-0003 1 Transistor
(270-Ohm,
1/2 Watt, 10%)
Q4 362-0008 1 Transistor
R32
350-0540
1 Resistor, Composition
QS 362-0008 1 Transistor
(2200-Ohm, 1/2 Watt, 10%)
Q6 362-0008 1 Transistor R33 350-0529 1 ' Resistor, Composition
Q7 362-0031 1 Transistor
(270-Ohm,
1/2 Watt, 10%)
Q8 362-0031 1 Transistor R34 350-0517 1 Resistor, Composition
Q9
361-0003
1
Transistor
(27-Ohm,
1/2 Watt, 10%)
QIO 362-0008 1 Transistor
R35 350-1128 1 Resistor, Composition
Q11 362-0008
1 Transistor
(220-Ohm,
2 Watt, 10%)
Q12 •
362-0008 1 Transistor
R36 350-0540 1 Resistor, Composition
Q13 362-0008
1
Transistor
(2200-Ohm, 1/2 Watt, 10%)
Q14
362-0008
1 Transistor
SI 308-0280 1 Switch, Push - DPDT
Rl
350-0526
1 Resistor, Composition
(IA, 28VDC/.45A, 115 VAC)
(100-Ohm,
1/2 Watt, 10%)
61
