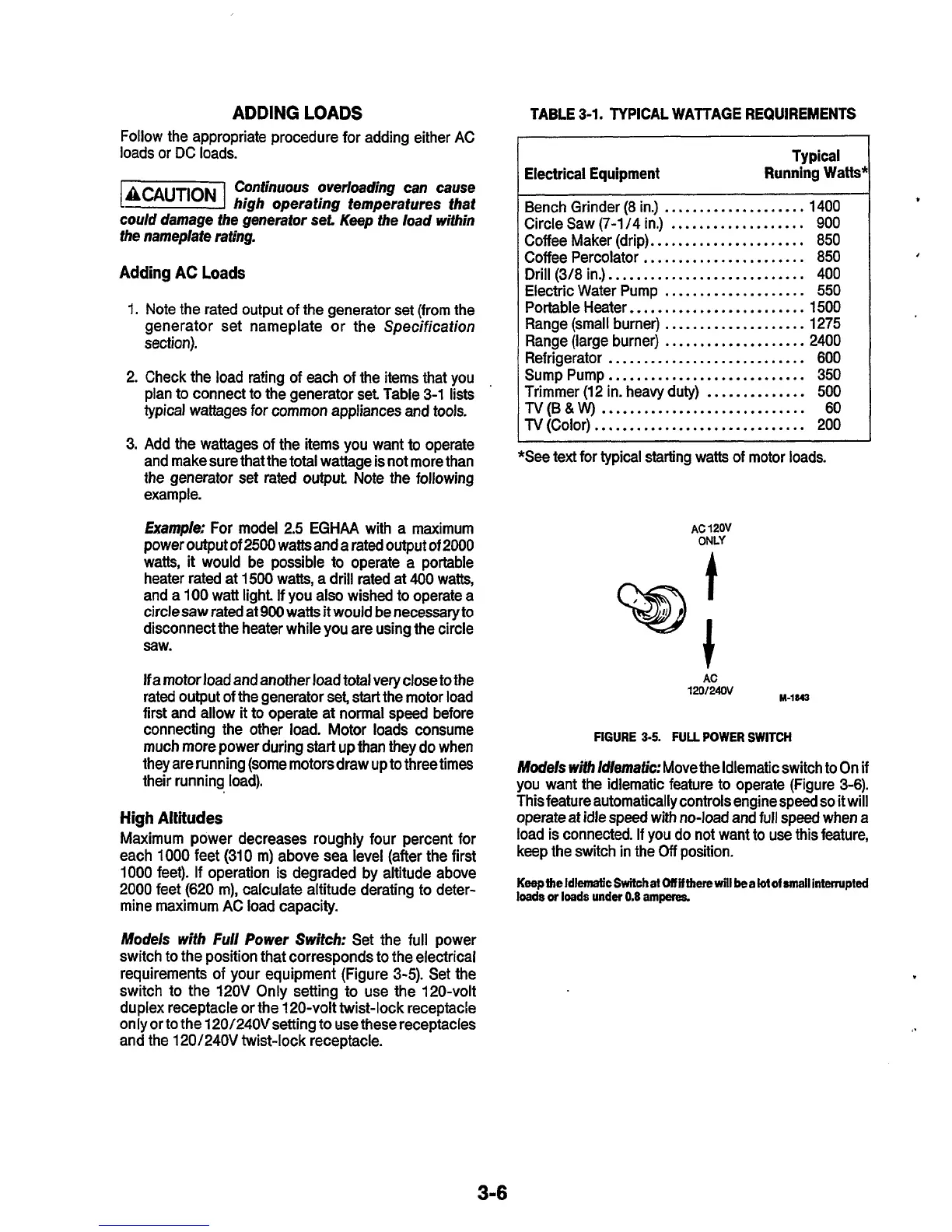

ADDING
LOADS
Follow
the appropriate procedure for adding either AC
loads or
DC
loads.
Continuous overloading
can
cause
kiBi3I
high operating temperatures that
could damage fhe generator set. Keep the load within
the nameplate rating.
Adding AC
Loads
1.
Note the rated output
of
the generator set (from the
generator set nameplate or the Specification
section).
2. Check the load rating of each
of
the items that you
plan to connect to the generator set Table 3-1 lists
typical wattages for common appliances and tools.
3. Add the wattages of the items you want to operate
and make sure that the total wattage is not more than
the generator set rated output Note the following
example.
Example:
For model 2.5
EGHAA
with a maximum
power output of
2500
wattsand a rated output of 2000
watts, it would be possible to operate a portable
heater rated at
1500
watts, a drill rated at
400
watts,
and a
100
watt light. If you also wished to operate a
circlesaw rated at
900
watts
it
would be necessary to
disconnect the heater while
you
are using the circle
Saw.
If
a motor load and another load total very close to the
rated output of the generator set, start the motor load
first and allow it to operate at normal speed before
connecting the other load. Motor loads consume
much more power during
start
up than they do when
they are running (some motors draw
up
to three times
their running load).
High
Altitudes
Maximum power decreases roughly four percent for
each 1000 feet (310 m) above sea level (after the first
1000 feet).
If
operation is degraded by altitude above
2000 feet (620
m),
calculate altitude derating to deter-
mine maximum AC load capacity.
Models
wifh
Full Power
Switch:
Set the full power
switch to the position that corresponds to the electrical
requirements
of
your equipment (Figure
3-5).
Set the
switch to the 120V Only setting to use the 120-volt
duplex receptacle or the 120-volt twist-lock receptacle
only or to the 120/240Vsetting to use these receptacles
and the 120/240V twist-lock receptacle.
TABLE
3-1.
TYPICAL WATTAGE REQUIREMENTS
Typical
Bench Grinder
(8
in.)
....................
1400
Circle Saw (7-1
/4
in.)
...................
900
Coffee Maker (drip).
.....................
850
Coffee Percolator
.......................
850
Drill (3/8 in.).
...........................
400
Electric Water Pump
....................
550
Range (small burner)
....................
1275
Range (large burner)
....................
2400
Sump Pump
............................
350
TV(B&W)
.............................
60
TV(Color)
..............................
200
Electrical
Equipment
Running Watts'
Portable Heater..
.......................
1500
Refrigerator
............................
600
Trimmer (1 2 in. heavy duty)
..............
500
*See
text for typical starting watts
of
motor loads.
AC
12Ov
ONLY
qjJ
t
+
AC
120124ov
M-1843
FlGURE
3-5.
FULL
POWER SWITCH
Models
wifh
/d/mafic:
Movethe ldlematic switch to On if
you want the idlematic feature to operate (Figure 3-6).
This feature automatically controlsenginespeed
so
it
will
operate at idle speed with no-load and full speed when a
load is connected. If you do not want to use this feature,
keep the switch in the
Off
position.
Keeptheldlematic
Switchat
O?fifLerewill
bea
lot
of
mall
intmpted
loads
or
loads under
0.8
amperes.
3-6
