Onan MicroLite 2800 Series User Manual

BT I
--p11-
RI
I I
I__-
P2
-< 3 t----,
I----
K5
K4
K3
R2
Z
T1
s3
s2
s1
R1
P2
P1
M2
M1
K2
K1
H1
G2
G1
F1,FZ
E2
El
DSl
CR3
CR2
CR1
CB1
c1
ET1
E1
A2
A1
Relay
Solenoid
Relay
Resistor
- Ballast
Splice
Ignition Coil
Switch-Start/Stop Remote
Switch-Low
Oil Level
Switch-Start/Stop
Resistor-C harging
Plug-Remote
Plug-Voltage Regulator
Meter-Total
Run Time
Meter-Battery Condition
Start Disconnect Relay
Start Solenoid
Choke
Magneto-Ignition
Generator
Fuse-SA
Fuel Pump
Spark Plug
Lamp-Remote
Diode
Diode
Diode
Circuit Breaker
Capacitor
Battery
Starter Motor
Deluxe Remote Control
Standard Remote Control
*R2 and CR3 may not be used in
later production sets.

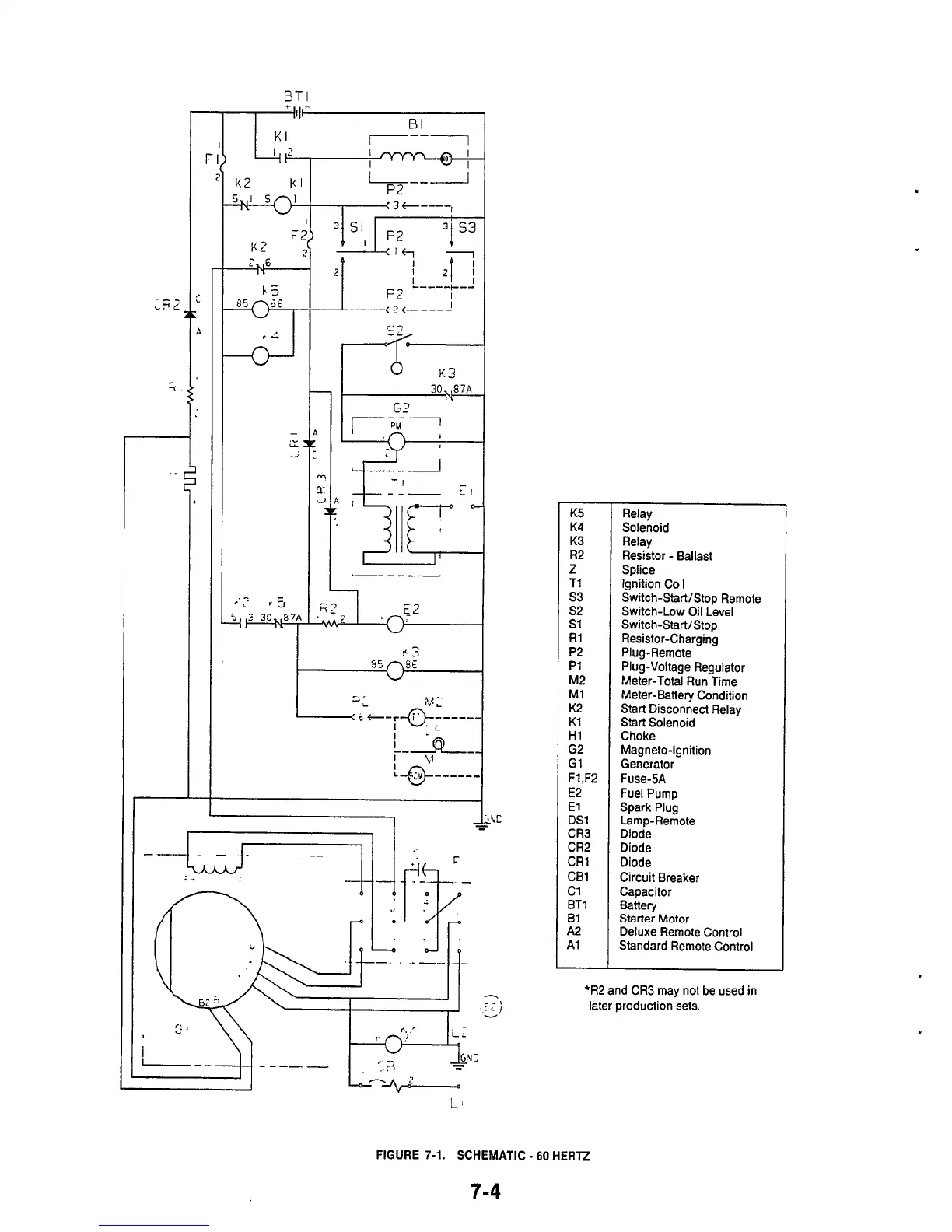

FIGURE 7-1.
SCHEMATIC - 60 HERTZ
7-4

Onan MicroLite 2800 Series Specifications

General

Rated AC Frequency	60 Hz
Fuel Type	Gasoline
Rated AC Output	2800 Watts
AC Voltage	120V
Engine	OHV
Noise Level at 23 ft	68 dB
DC Output	12V
Outlets	2x 120V 20A
