Onbon OVP-M1X User Manual

www.onbonbx.com Page 15
1. Input EDID
It offers EDID editing function of DVI/HDMI input signal source, means, the
recommended resolution of input signal source. In WIN7 system, when the “input EDID
(recommended)” is modified which is read by PC, the output resolution of PC will be
modified too;But for WIN10 system, output resolution of PC won’t be changed, users need
to operate manually.

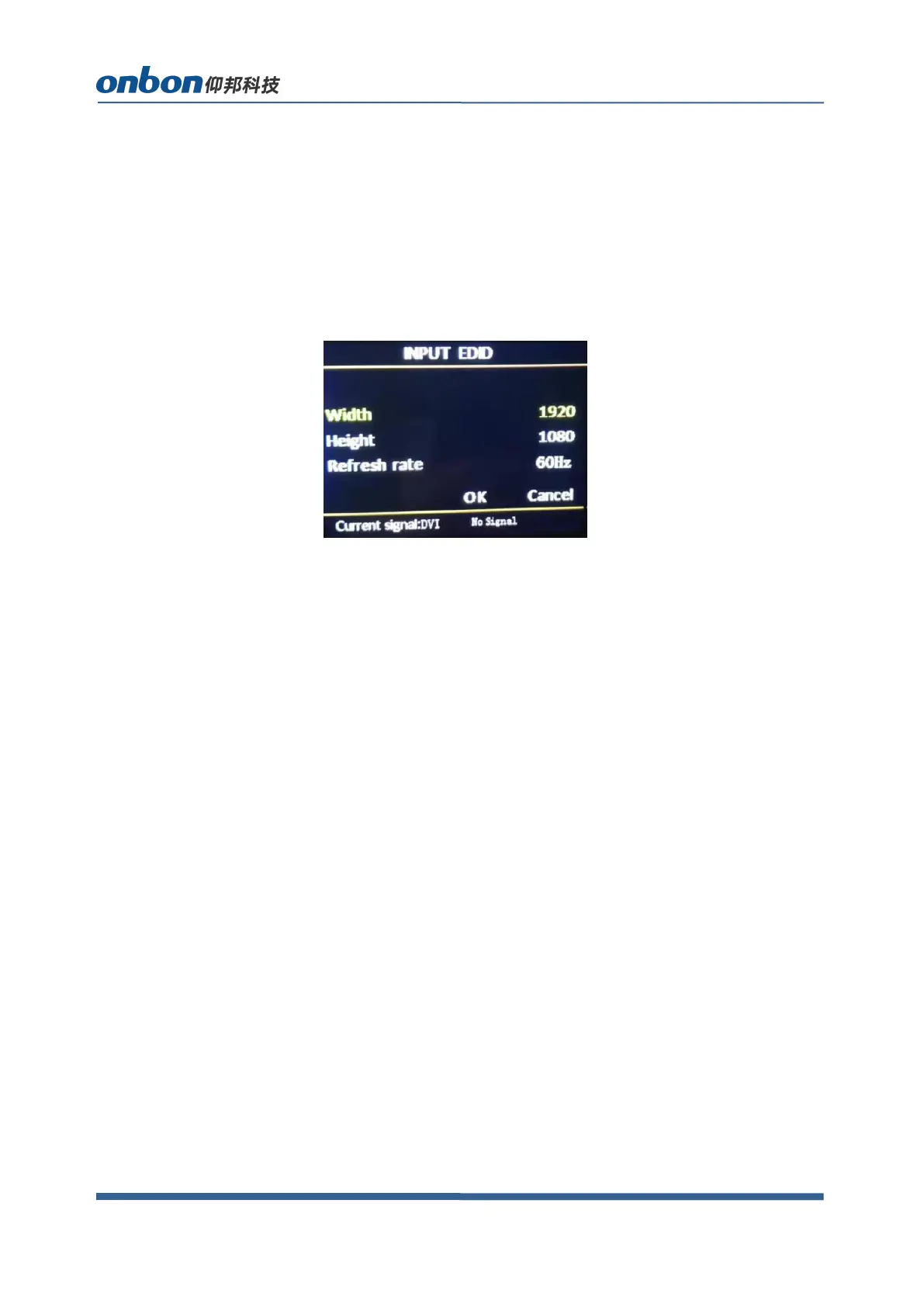

By “INPUT EDID”, users can get good resolution effect in the range of 4K*2K. As below:
 Width：adjust range 640-1920
 Height：adjust range 480-2500
 Refresh rate：adjust range 60 or 30
Note:
（1）The real adjust range is limited by port type and input bandwidth, for this equipment, it
can reach to the highest input EDID, cause input source HDMI adopts HDMI 1.4. So, it can
reach:1920*1080@60Hz.
（2）In 1920*1080@60Hz, input refresh rate should be 30Hz.
2. Input hot spare
Select “input hot spare”in “OPTION”, users can choose different backup signal
source. So, if some of image input signal is lost, system can switch to backup signal source
immediately.
3. VGA setting
Select “VGA SETTING”,as below:
