Physical Instruction

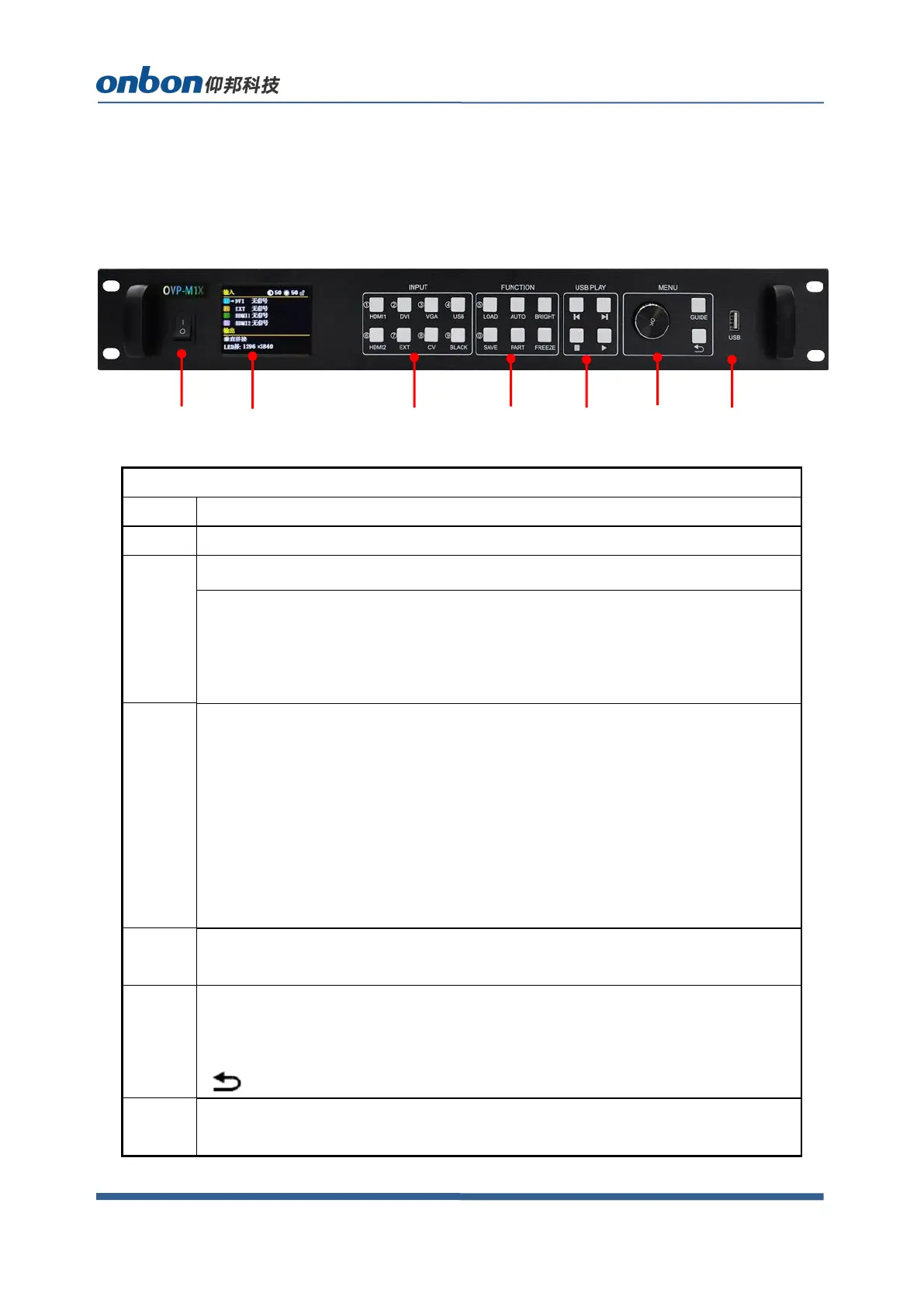

Front board
Interface
1
Turn on/off button for power supply
2
2.8" full color LCD screen(320*240)
3
LCD screen operation area, show status of system.
INPUT area
Buttons for inputting signals. There are 8 buttons from [DVI] ~ [USB].
Note: Output will be in black status if you press BLACK and LED indicator
light is on.
4
FUNCTION area
Part of functions and menu, 6 buttons:
[LOAD]：Switch to user mode menu.
[AUTO] ：Automatic calibration for VGA input.
[BRIGHT]：Switch to brightness adjustment menu.
[SAVE]：Switch to user mode saving menu.
[PART]：Display part or full.
[FREEZE]：Freeze photo,as to display photo statically.
5
USB PLAY area
U disk operation area, it includes four buttons: Last one, next one, stop, play.
6
MENU area
Short press rotating[OK]button: enter into main menu or confirm inputting.
[GUIDE]：Switch to “intelligent guiding”
[ ]：Return.
7
USB port
Display by U disk
○
1
○
2
○
3
○
4
○
5
○
6
○
7
