Onkyo A-7 Service Manual

A-/

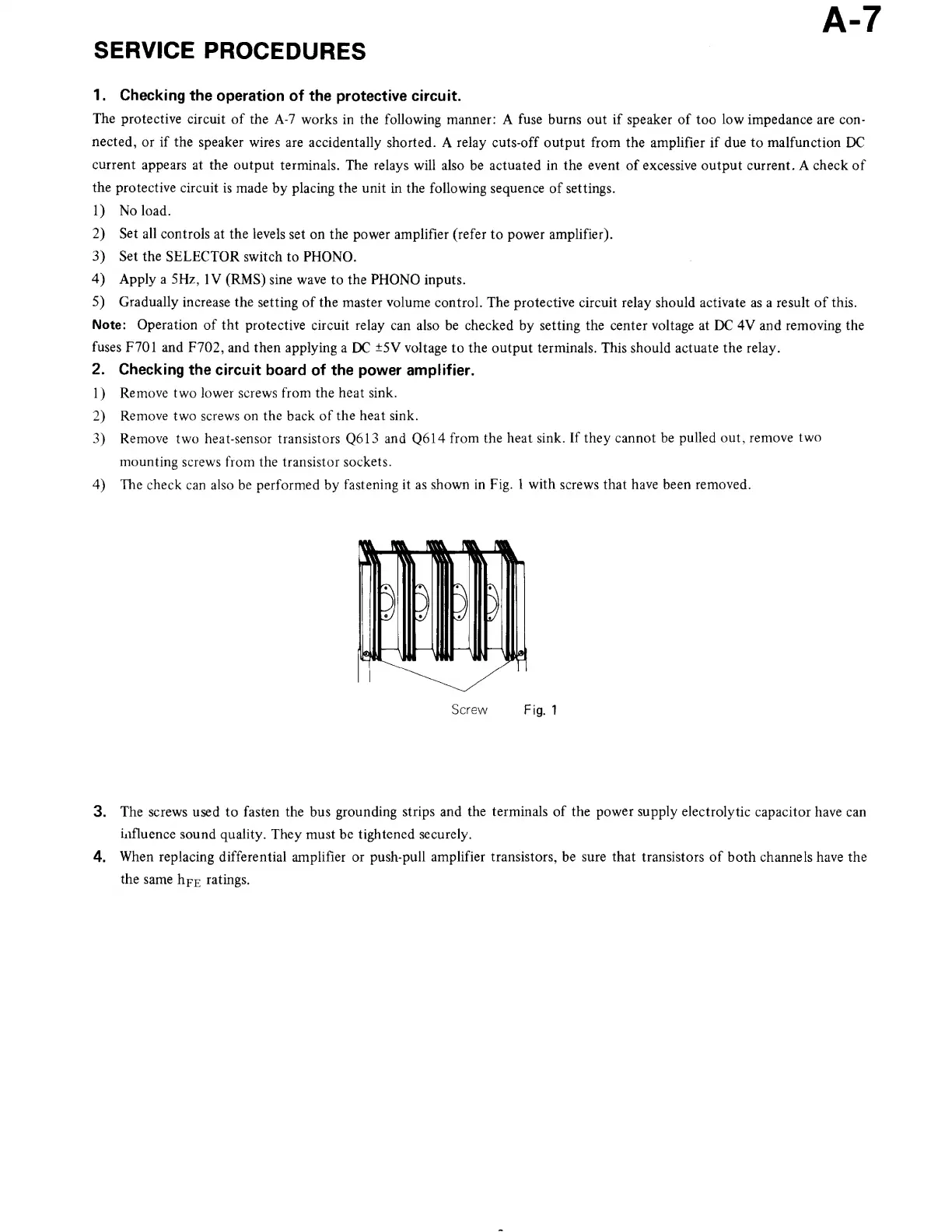

SERVICE PROCEDURES
1.
Checking the operation of the protective circuit.
The protective circuit of the A-7 works in the follawing manner: A fuse burns out if speaker of too low impedance are con-
nected, or if the speaker wires are accidentally shorted. A relay cuts-off output from the amplifier if due to malfunction DC
current appears at the output terminals. The relays will also be actuated in the event of excessive output current. A check of
the protective circuit is made by placing the unit in the following sequence of settings.
1)
2)
3)
4)
5)
No load.
Set all controls at the levels set on the power amplifier (refer to power amplifier).
Set the SELECTOR switch to PHONO.
Apply a 5Hz, 1V (RMS) sine wave to the PHONO inputs.
Gradually increase the setting of the master volume control. The protective circuit relay should activate as a result of this.
Note: Operation of tht protective circuit relay can also be checked by setting the center voltage at DC 4V and removing the
fuses F701 and F702, and then applying a DC +5V voltage to the output terminals. This should actuate the relay.
2.
1)
2)
3)
4)
Checking the circuit board of the power amplifier.
Remove two lower screws from the heat sink.
Remove two screws on the back of the heat sink.
Remove two heat-sensor transistors Q613 and Q614 from the heat sink. If they cannot be pulled out, remove two
mounting screws from the transistor sockets.
The check can also be performed by fastening it as shown in Fig. 1 with screws that have been removed.
Screw Fig. 1
The screws used to fasten the bus grounding strips and the terminals of the power supply electrolytic capacitor have can
influence sound quality. They must be tightened securely.
When replacing differential amplifier or push-pull amplifier transistors, be sure that transistors of both channels have the
the same hrg ratings.
