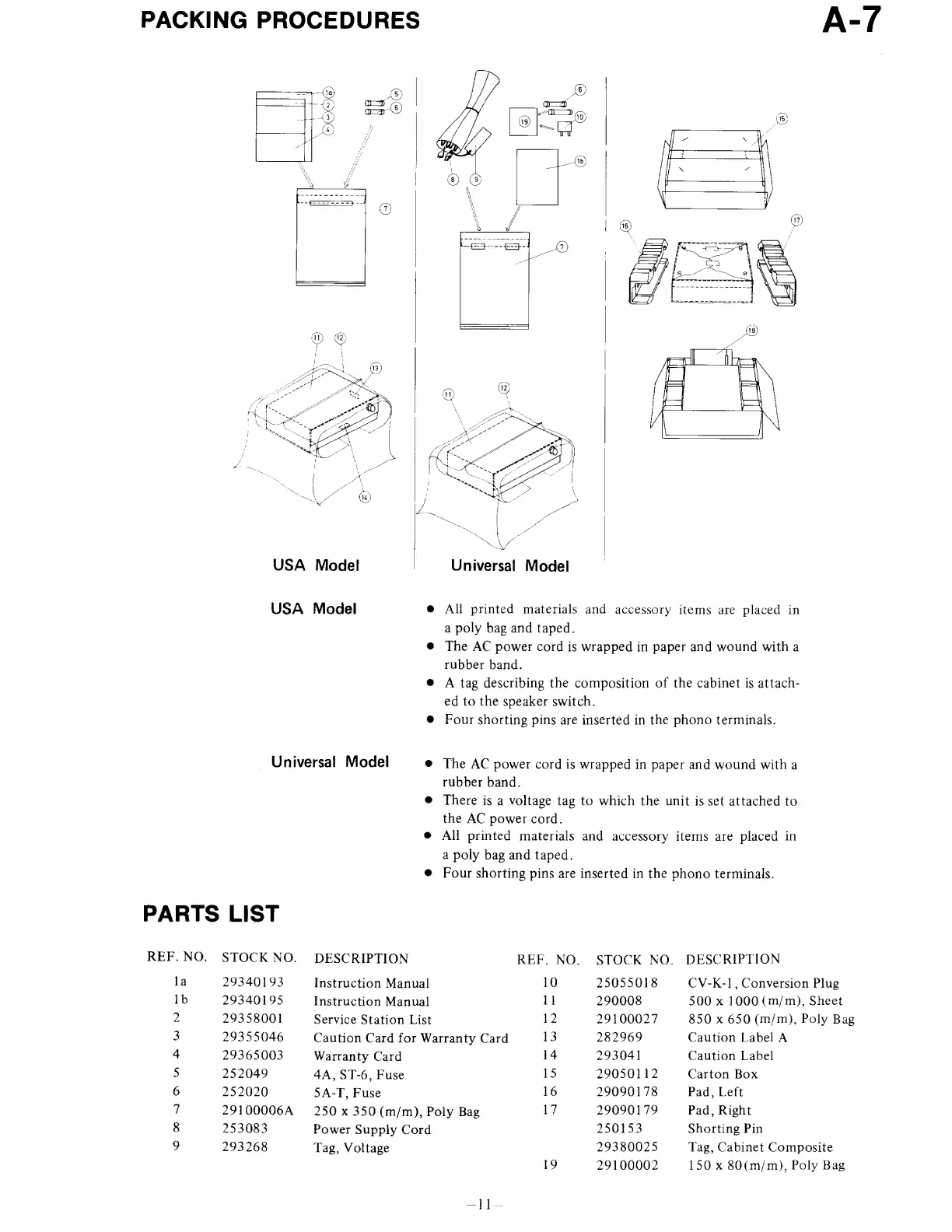

Onkyo A-7 Service Manual

PACKING PROCEDURES
USA Model Universal Model
USA Model @ Ali printed materials and accessory items are placed in
a poly bag and taped.
@ The AC power cord is wrapped in paper and wound with a
rubber band.
@ A tag describing the composition of the cabinet is attach-
ed to the speaker switch.
@ Four shorting pins are inserted in the phono terminals.
_ Universal Model @ The AC power cord is wrapped in paper and wound with a
rubber band.
@ There is a voltage tag to which the unit is set attached to
the AC power cord.
@ All printed materials and accessory items are placed in
a poly bag and taped.
@ Four shorting pins are inserted in the phono terminals.
PARTS LIST
REF.NO. STOCK NO. DESCRIPTION REF, NO. STOCK NO. DESCRIPTION
la 29340193 Instruction Manual 10 25055018 CV-K-], Conversion Plug
lb 29340195 Instruction Manual 11 290008 500 x 1000 (m/m), Sheet
2 29358001 Service Station List 12 29100027 850 x 650 (m/m), Poly Bag
3 29355046 Caution Card for Warranty Card 13 282969 Caution Label A
4 29365003 Warranty Card 14 293041] Caution Label
5 252049 4A, ST-6, Fuse 15 29050112 Carton Box
6 252020 SA-T, Fuse 16 29090178 Pad, Left
7 29100006A 250 x 350 (m/m), Poly Bag 17 29090179 Pad, Right
8 253083 Power Supply Cord 250153 Shorting Pin
9 293268 Tag, Voltage 29380025 Tag, Cabinet Composite
19 29100002 150 x 80(m/m), Poly Bag
—||]—
