Onkyo A-7 Service Manual

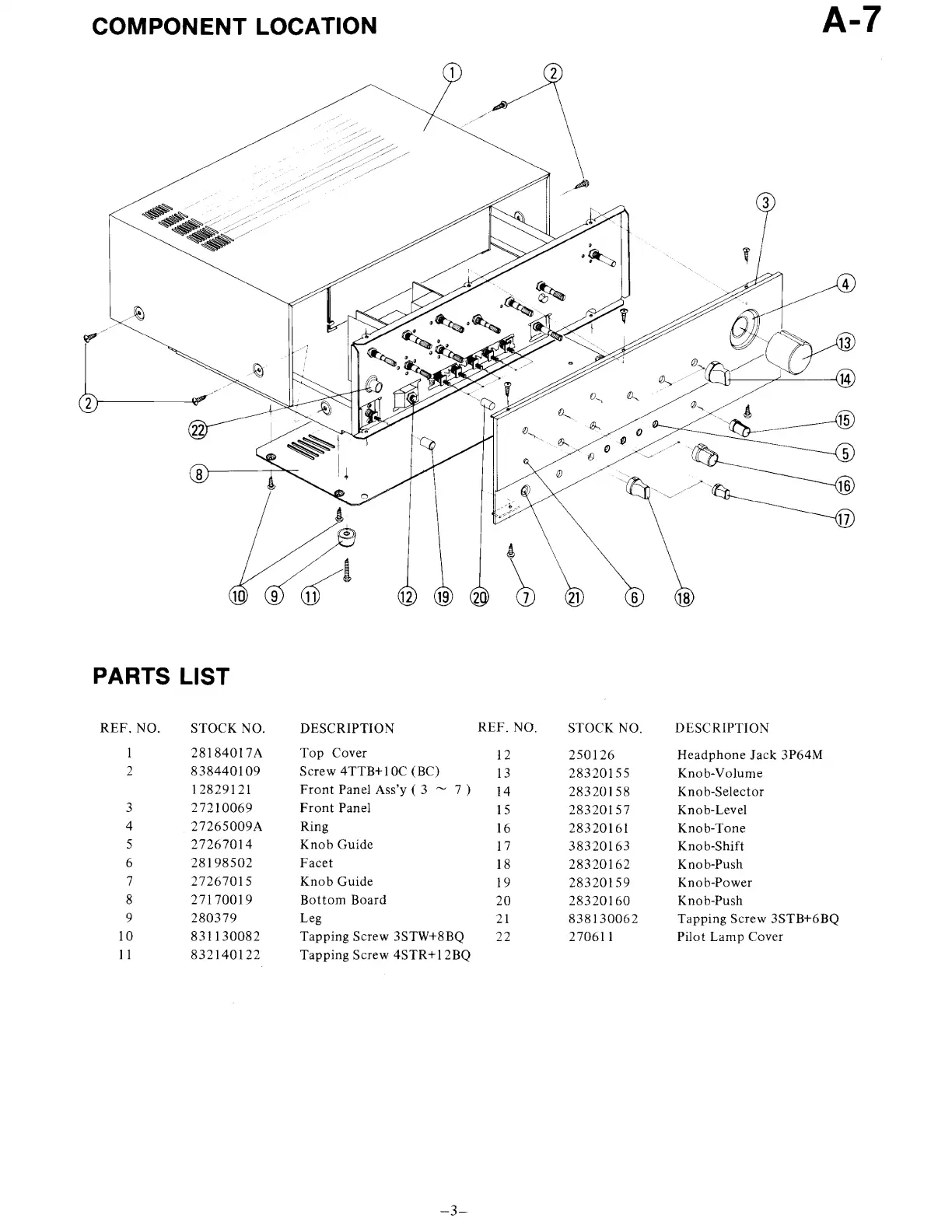

COMPONENT LOCATION
Tapping Screw 4STR+12BQ
PARTS LIST
REF. NO. STOCK NO. DESCRIPTION REF. NO. STOCK NO. DESCRIPTION
l 28184017A Top Cover 12 250126 Headphone Jack 3P64M
2 838440109 Screw 4TTB+10C (BC) 13 28320155 Knob-Volume
12829121 Front Panel Ass'y(3 ~ 7) 14 28320158 Knob-Selector
3 27210069 Front Panel 15 28320157 Knob-Level
4 —27265009A Ring 16 28320161 Knob-Tone
5 27267014 Knob Guide 17 38320163 Knob-Shift
6 28198502 Facet 18 28320162 Knob-Push
7 27267015 Knob Guide 19 28320159 Knob-Power
8 27170019 Bottom Board 20 28320160 Knob-Push
9 280379 Leg 21 838130062 Tapping Screw 3STBt6BQ
10 831130082 Tapping Screw 3STW+8BQ 22 270611 Pilot Lamp Cover
11 832140122
