Onkyo A-7022 Service Manual

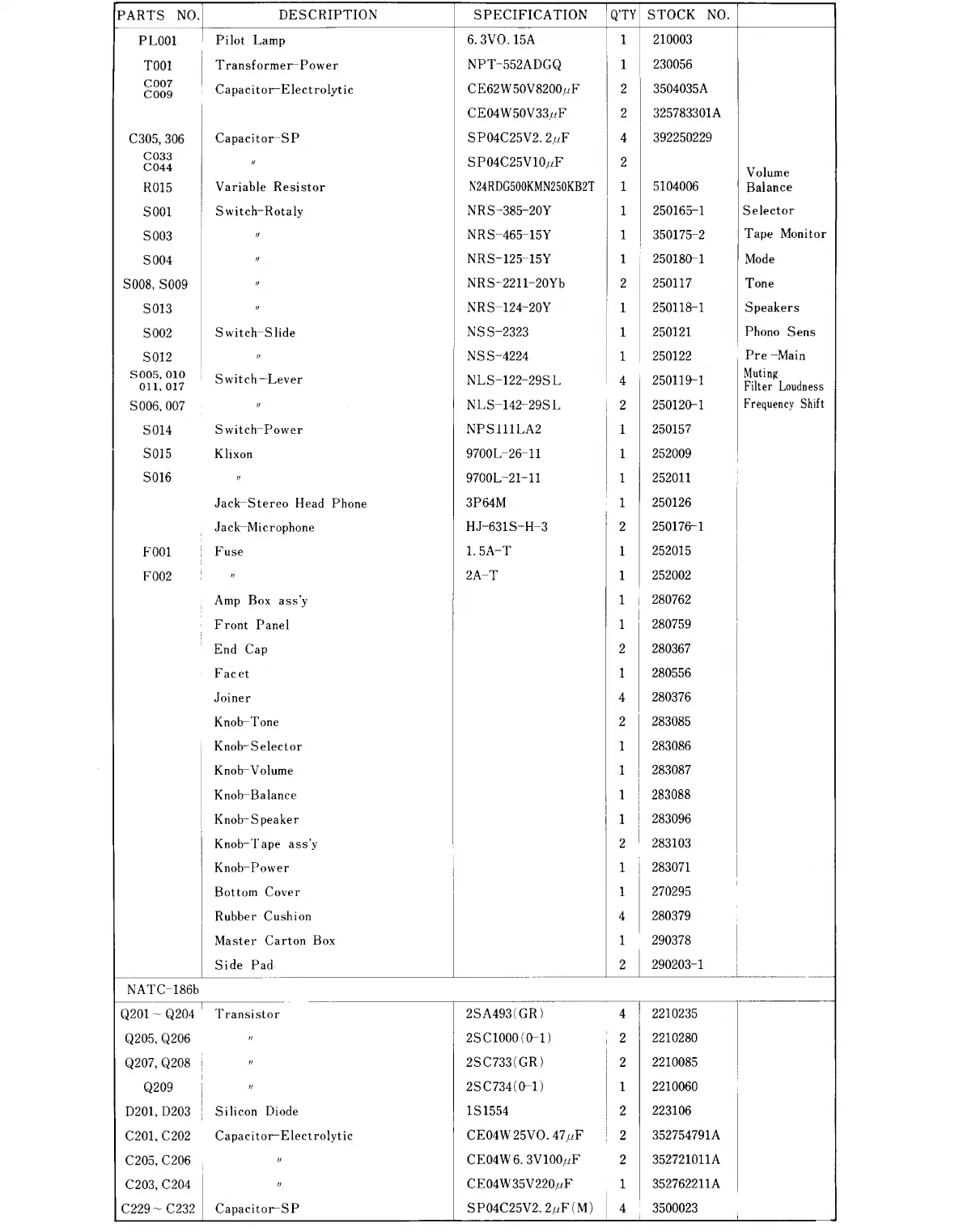

PARTS NO. DESCRIPTION SPECIFICATION (QTY STOCK NO.
PL0O1 Pilot Lamp 6.3V0.15A 1 210003
T001 Transformer-Power NPT-552ADGQ 1 230056
ore Capacitor-Electrolytic CE62W50V8200uF 2 | 3504035A
CE04W50V33uF 2 | 325783301A
C305, 306 | Capacitor-SP SP04C25V2. 2uF 4 | 392250229
cea8 V SP04C25V10uF 2 Volume
RO15 Variable Resistor N24RDGSOOKMN250KB2T | 1 | 5104006 Balance
S001 S witch-Rotaly NRS-385-20Y 1 | 250165-1 Selector
S003 " NRS~465-15Y 1 | 350175-2 Tape Monitor
S004 " NRS-125-15Y 1 250180-1 Mode
S008, S009 ” NRS-2211-20Yb 2 250117 Tone
S013 ¥ NRS-124-20Y 1 250118-1 Speakers
S002 Switch-Slide NSS-2323 1 | 250121 Phono Sens
S012 " NSS-4224 1 250122 Pre Main
$005,010 Switch—Lever NLS-122-29S L 4 | 2501191 Mvtng adness
S006, 007 y NLS~-142-29S L 2 | 250120-1 Frequency Shift
S01 S witch-Power NPS111LA2 1 | 250157
S015 Klixon 9700L-26-11 1 | 252009
S016 " 9700L-21-11 1 | 252011
Jack-Stereo Head Phone 3P64M 1 250126
Jack-Microphone HJ-631S-H-3 2 | 250176~1
F001 Fuse 1.5A-T 1 | 252015
F002 " 2A-T 1 | 252002
Amp Box ass’y 1 | 280762
Front Panel 1 | 280759
End Cap 2 280367
Facet 1 | 280556
Joiner 4 | 280376
Knob-Tone 2 | 283085
Knob-Selector 1 | 283086
Knob-Volume 1 | 283087
Knob-Balance 1 | 283088
Knob-S peaker 1 283096
Knob-Tape ass'y 2 283103
Knob-Power 1 283071
Bottom Cover 1 270295
Rubber Cushion 4 | 280379
Master Carton Box 1 290378
Side Pad 2 | 290203-1
NATC-186b OO
Q201~ Q204' Transistor — 25 A493(GR) 4 | 2210235 =| _
Q205, Q206 ” 25C1000(0-1) 2 | 2210280
Q207, Q208 | " 25C733(GR) 2 | 2210085
Q209 " 2SC734(0-1) 1 | 2210060
D201, D203 | Silicon Diode 1S1554 2 | 223106
C201,C202 Capacitor-Electrolytic CE04W 25V0. 47uF 2 | 352754791A
C205, C206 q CE04W6. 3V100uF 2 | 352721011A
C203, C204 | n CE04W35V220uF 1 | 352762211A
C229 ~ C232 SP04C25V2.2uF(M) 4 3500023
Capacitor-SP
