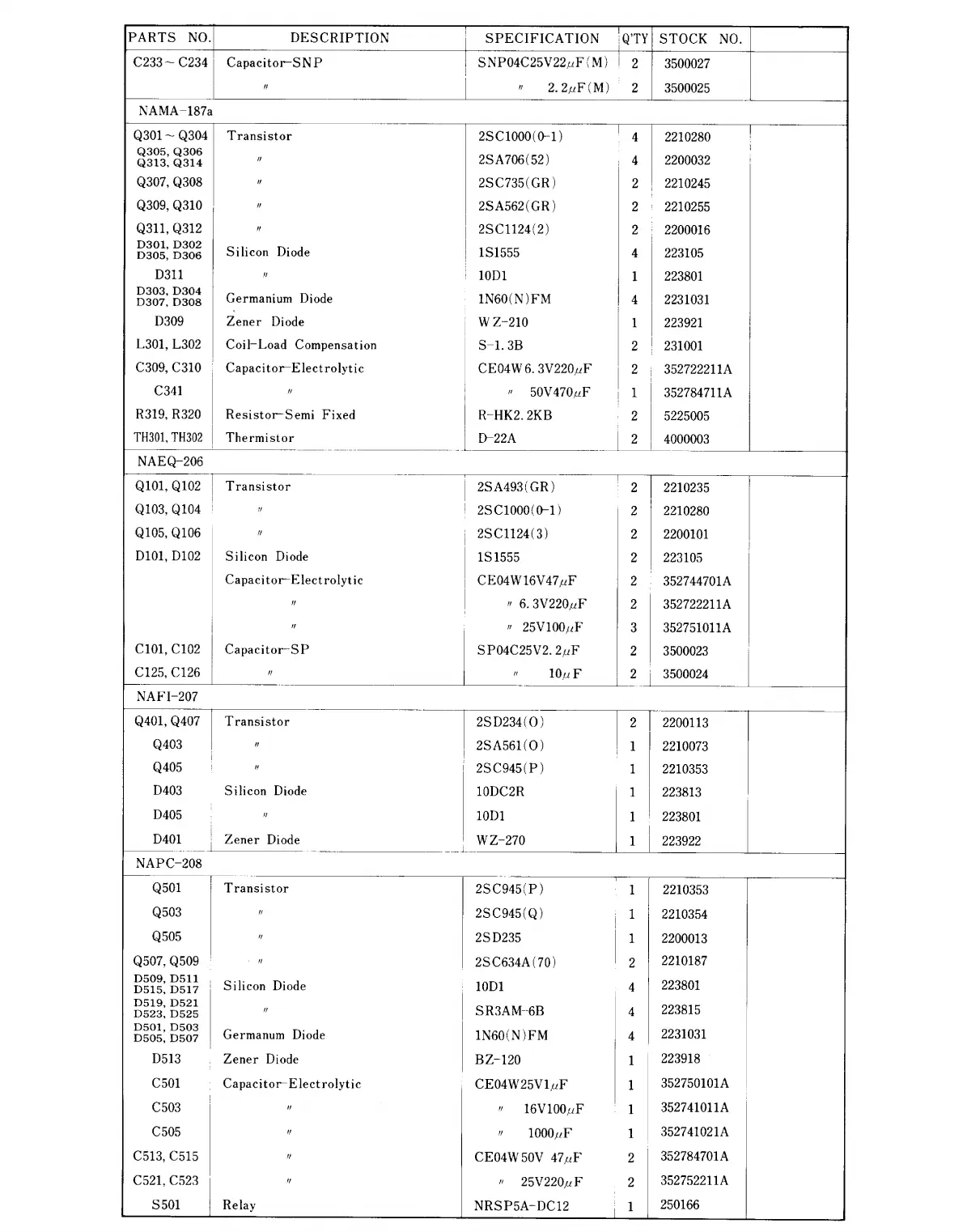

Onkyo A-7022 Service Manual

Relay
PARTS NO. DESCRIPTION SPECIFICATION (Q’TY| STOCK NO.
C233~ C234] Capacitor-SNP | SNP04C25V22uF(M) | 2 | 3500027
y | » 2.2uF(M) 2 | 3500025
NAMA-187a -
Q301~ Q304| Transistor 25C€1000(0-1) 4 | 2210280
313 Q314 ” 2S A706(52) 4 | 2200032
Q307, Q308 y 2SC735(GR) 2 | 2210245
Q309, Q310 | » 25 A562(GR) 2» 2210255
Q311, Q312 y 25C1124(2) 2 2200016
Paes, Dane | Silicon Diode 1$1555 4 | 223105
D311 1 10D1 1 | 223801
Dag” Daog | Germanium Diode 1N60(N)FM 4 | 2231031
D309 Zener Diode W Z-210 1 | 223921
1.301, L302 Coil-Load Compensation S-1. 3B 2 231001
C309, C310 Capacitor-Electrolytic CE04W 6. 3V220uF 2 | 352722211A
C341 " " 50V470uF | 1 | 352784711A
R319, R320 | Resistor-Semi Fixed R-HK2. 2KB 2 | 5225005
TH301, TH302 | Thermistor D-22A | 2 | 4000003
NAEQ-206
Q101, Q102 | Transistor 2SA493(GR) 2 2210235
Q103, Q104 | n 2SC1000(0-1) | 2 | 2210280
Q105, Q106 | " 2SC1124(3) 2 | 2200101
D101, D102 Silicon Diode 181555 2 223105
Capacitor—Electrolytic CE04W 16V47uF 2 352744701A
" ” 6,3V220uF 2 | 352722211A
" » 25V100uF 3 | 352751011A
C101, C102 | Capacitor-SP SP04C25V2. 2uF 2 | 3500023
C125, C126 " " 10uF 2 } 3500024
NAFI-207 -
Q401,Q407 Transistor 25D234(0) 2 | 2200113 |
Q403— | " 2SA561(0) 1 | 2210073
Q405 ” 25C945(P) 1 | 2210353
D403 Silicon Diode 10DC2R 1 | 223813
D405 " 10D1 1 | 223801
D401 Zener Diode | WZ-270 1 | 223922
NAPC-208
Q501. | Transistor 25C945(P) "1 | 200353 =]
Q503 n 2$C945(Q) 1 | 2210354
Q505 " 2SD235 | 1 | 2200013
Q507, Q509 | 4 2S C634A (70) 2 | 2210187
Dae’ Deis | Silicon Diode 10D1 4 223801
D523) D525 ' SR3AM-6B 4 | 223815
Des. Deon | Germanum Diode 1N60(N)FM 4 2231031
D513 | Zener Diode BZ-120 1 223918 ©
C501 Capacitor-Electrolytic CE04W25V1uF 1 | 392750101A
C503 " » 16V100uF 1 352741011A
C505 y ” — 1000uF 1 | 352741021A
C513, C515 " CE04W50V 47uF 2 | 302784701A
C521, C523 n » 25V220uF 2 | 392752211A
S501 NRSP5A-DC12 1 | 250166
