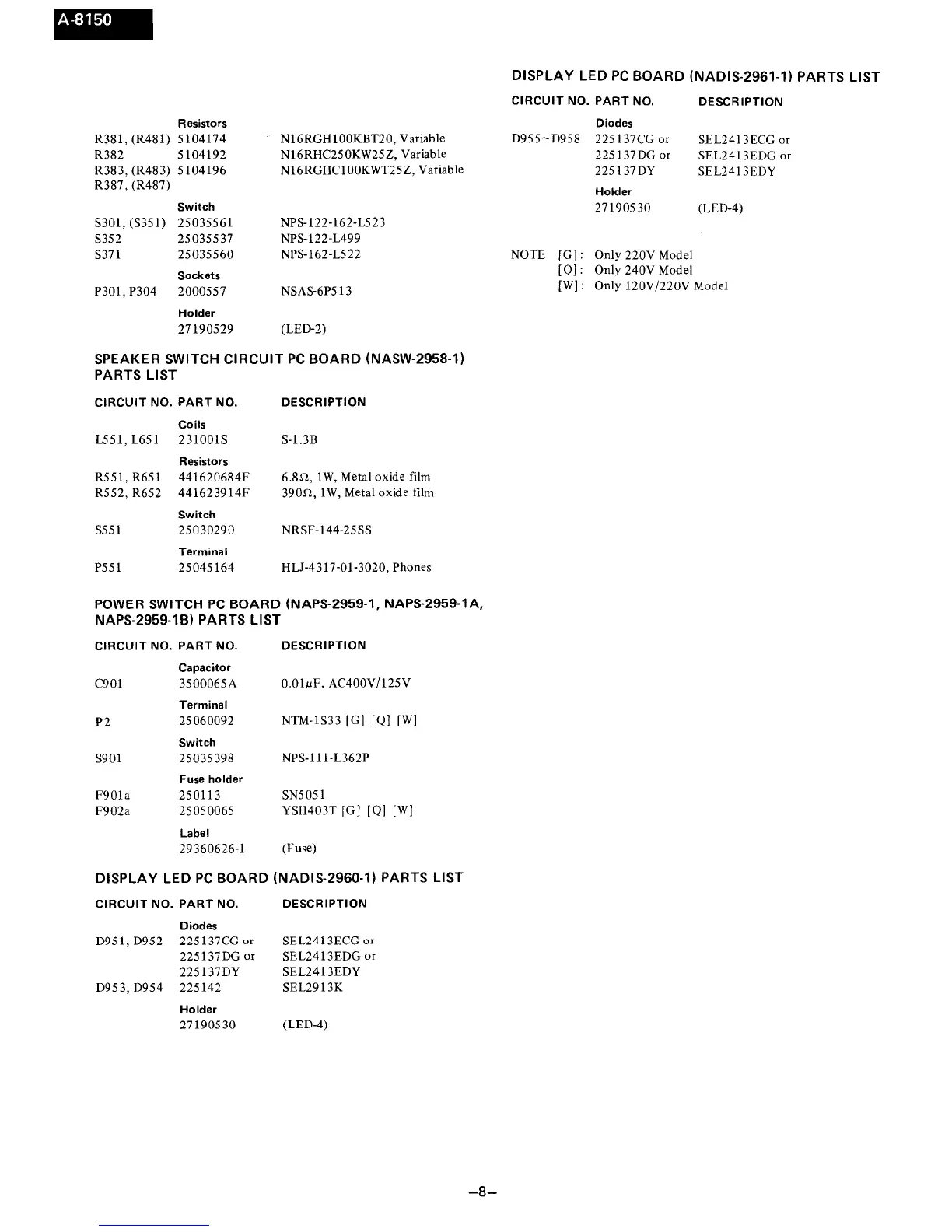

Onkyo A-8150 Service Manual

A-8150
Resistors
R381, (R481) 5104174
R382 5104192
R383, (R483) 5104196
R387, (R487)
N16RGH100KBT20, Variable
N16RHC250KW25Z, Variable
N16RGHClOOKWT25Z, Variable
Switch
S301, (S351) 25035561
S352 25035537
S371 25035560
NPS-122-162-L523
NPS-122-L499
NPS-162-L522
Sockets
P301,P304 2000557
NSAS-6P513
Holder
27190529
(LED-2)
SPEAKER SWITCH CIRCUIT PC BOARD (NASW-2958-1)
PARTS LIST
CIRCUIT NO. PART NO. DESCRIPTION
Coils
L551, L651 231001S S-1.3B
Resistors
R551, R651 441620684F
6.8n, 1W, Metal oxide film
R552, R652
441623914F 390n, 1W, Metal oxide film
Switch
S551
25030290
NRSF-144-25SS
Terminal
P551 25045164
HLJ-4317-01-3020, Phones
POWER SWITCH PC BOARD (NAPS-2959-1, NAPS-2959-1A,
NAPS-2959-1B) PARTS LIST
CIRCUIT NO. PART NO.
DESCRIPTION
Capacitor
C901
3500065A O.DlJ.lF,AC400V!125V
Terminal
P2
25060092
NTM-1S33 [G] [Q] [W]
Switch
S901
25035398
NPS-111-L362P
Fuse holder
F901a 250113 SN5051
F902a 25050065
YSH403T [G] [Q] [W]
Label
29360626-1
(Fuse)
DISPLAY LED PC BOARD (NADIS-2960-1) PARTS LIST
CIRCUIT NO. PART NO.
DESCRIPTION
Diodes
0951,0952 225137CG or
SEL2413ECG or
225137DG or SEL2413EOG or
2251370Y
SEL2413EOY
0953, D954
225142 SEL2913K
Holder
27190530
(LEO-4)
CIRCUIT NO. PART NO.
DISPLAY LED PC BOARD (NADIS-2961-1) PARTS LIST
DESCRIPTION
Diodes
0955-0958 225137CG or
2251370G or
2251370Y
Holder
27190530
SEL24l3ECG or
SEL2413EOG or
SEL24l3EOY
(LED-4)
NOTE [G]: Only 220V Model
[Q]: Only 240V Model
[W]: Only 120V!220V Model
-8-
