Onkyo A-9050 Service Manual

A-9030 / 9050 / M-5010 / ADM-20.4
Service Procedure

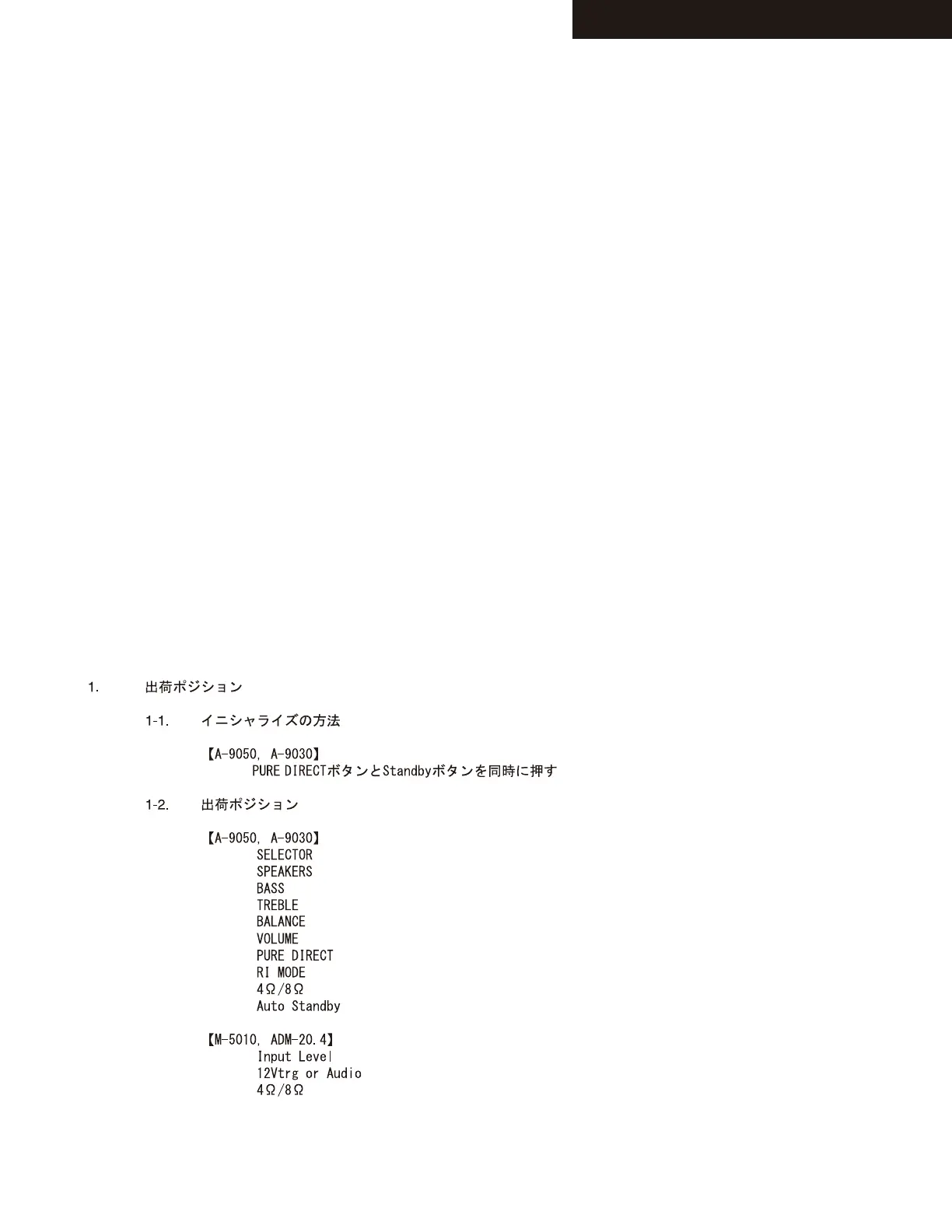

1. Setting for shipping
1-1. Initialization of memories
[A-9050, A-9030]
Push PURE DIRECT button and Standby at same time.
1-2. Initial setting
[A-9050, A-9030]
SELECTOR
SPEAKERS
BASS
TREBLE
BALANCE
VOLUME
PURE DIRECT
RI MODE
4ohm/8ohm
Auto Standby
[M-5010, ADM-20.4]
Input Level
12Vtrg or Audio
4ohm/8ohm
Auto Standby

Onkyo A-9050 Specifications

General

Output level	175 mV
Damping factor	60
Amplifier class	A
Output impedance	2200 Ω
Audio output channels	2.0 channels
Peak power per channel	75 W
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.08 %
AC (power) in	Yes
Audio (L/R) in	5
Audio (L/R) out	1
Digital audio coaxial in	2
Speakers connectivity type	RCA
Purpose	Home
Product color	Silver
Volume control	Rotary
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	160 W
Package weight	10500 g

Weight and Dimensions

Depth	330.3 mm
Width	435 mm
Height	139 mm
Weight	820 g
