CONNECTIONS
EN
Analogue 7.1ch/5.1ch audio signals can be output from AUDIO OUTPUT (ANALOG 7.1ch) jacks.

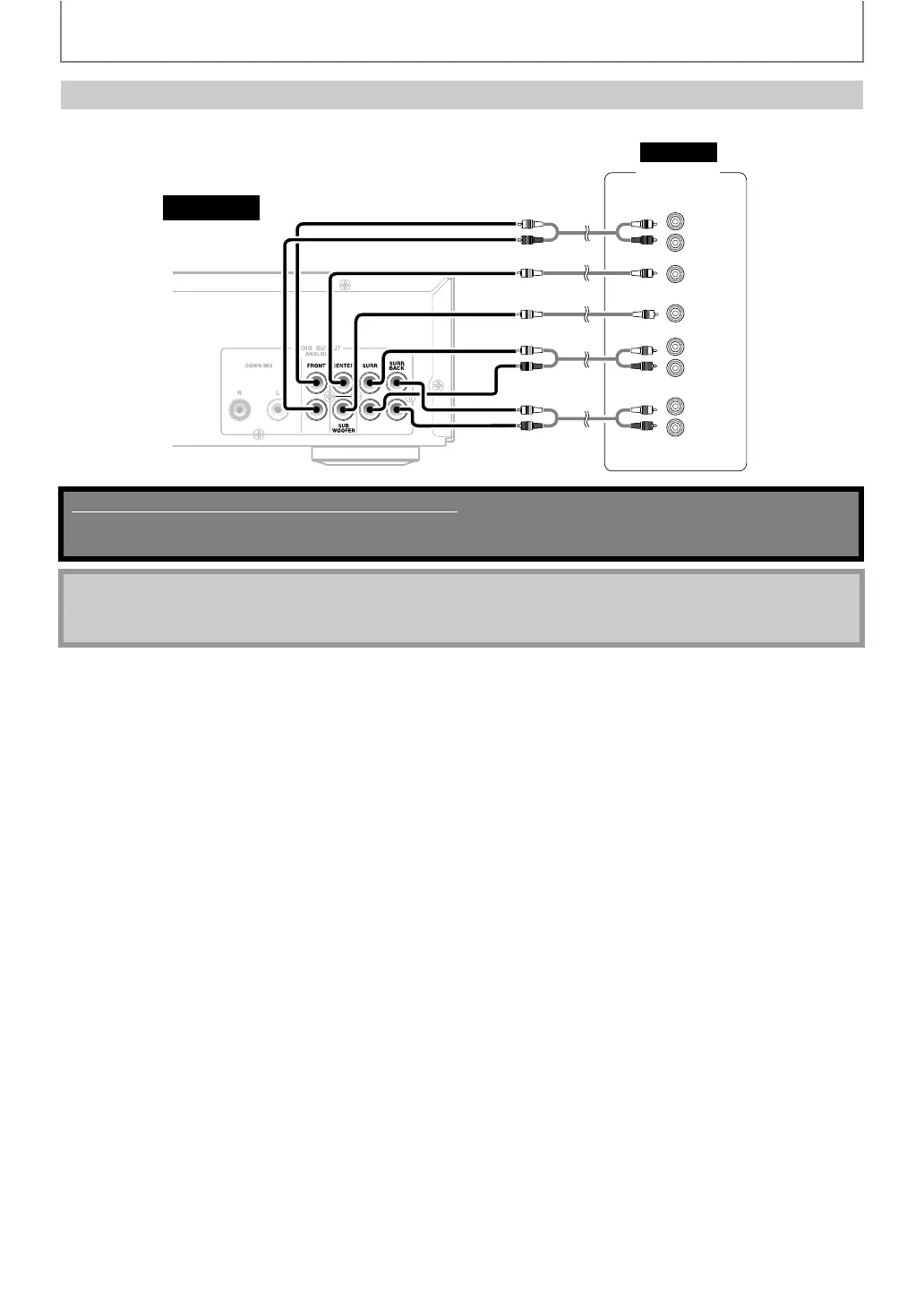

Surround Connections to a Device with 7.1/5.1-channels of Analogue Audio Inputs
CENTER
SUB-
WOOFER
R
SURROUND
L
R
SURROUND
BACK
L
R
L
FRONT
AV amplifier
this unit
audio
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
Note
• If you connect to 5.1-channel surround system, do not connect to SURR BACK L/R jacks, then set “Surround Back” in
“Speaker Size” to “None”.
