S Digital out setting
When “Audio Mute” is selected in “HDMI Audio Out” setting, HDMI audio signal will be muted and the audio signals
output from AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks change depending on “Digital Out” setting.
• This setting is not effective when the HDMI audio signal is output.
• When both HDMI OUT jack and AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks are connected to other devices, the
audio signals currently output from the HDMI OUT jack will be output from the AUDIO OUTPUT (DIGITAL OPTICAL/
COAXIAL) jacks as well, except that HDMI 2ch signal will be output from HDMI OUT jack, when connected device does
not support Dolby Digital and DTS.
• When “BD Audio Mode” is set to “Mix Audio Output”, the audio output from AUDIO OUTPUT (DIGITAL OPTICAL/
COAXIAL) jacks will follow the setting in the “HDMI Audio Out”. (When outputting Multi PCM from HDMI OUT, 2ch
Downmix PCM will be output from AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks.)
• Refer to pages 15 - 17 for more information of audio settings.
S Speaker setting
This unit allows you to enjoy multi-channel surround sound such as 7.1-channel / 5.1-channel surround.
To make the most of its feature, set up your speakers appropriately by referring to the following table.
Speaker setting options are available at the following locations;
<Speaker setting for the audio signal output from HDMI OUT jack>
(Available when you have HDMI cable connected to HDMI OUT jack)
Quick A HDMI Audio Out A HDMI Multi(LPCM)
Custom A Audio A HDMI Audio Out A HDMI Multi(LPCM)
<Speaker setting for the audio signal output from AUDIO OUTPUT (ANALOG 7.1ch) jacks>
(Available when you have HDMI cable connected to HDMI OUT jack)
Quick A 7.1ch Audio Out A Multi Channel
Custom A Audio A 7.1ch Audio Out A Multi Channel
Digi
Quick A HDMI Audio Out A Audio Mute A Digital Out
Bitstream*:
When playing back discs recorded in Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD, the
corresponding core stream (Dolby Digital or DTS) are output.
LPCM:
Full decoded 2ch PCM signal will be output from AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks.

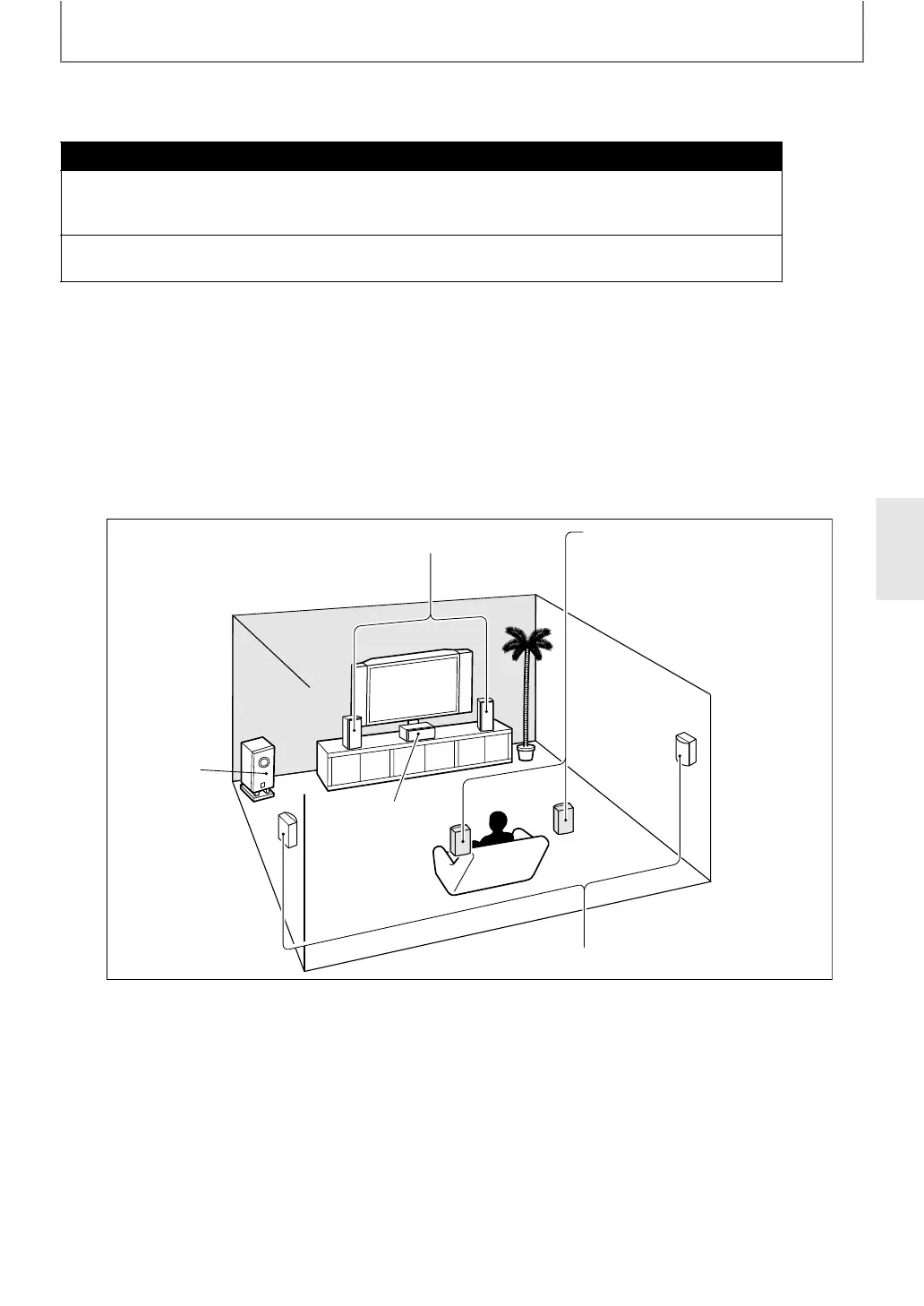

e.g.) basic layout with 7.1-channel surround system
Front left and right speakers
Centre speaker
Subwoofer
Surround left and right speakers
Surround back left and right speakers
