Onkyo BD-SP809 Instruction Manual

EN
11

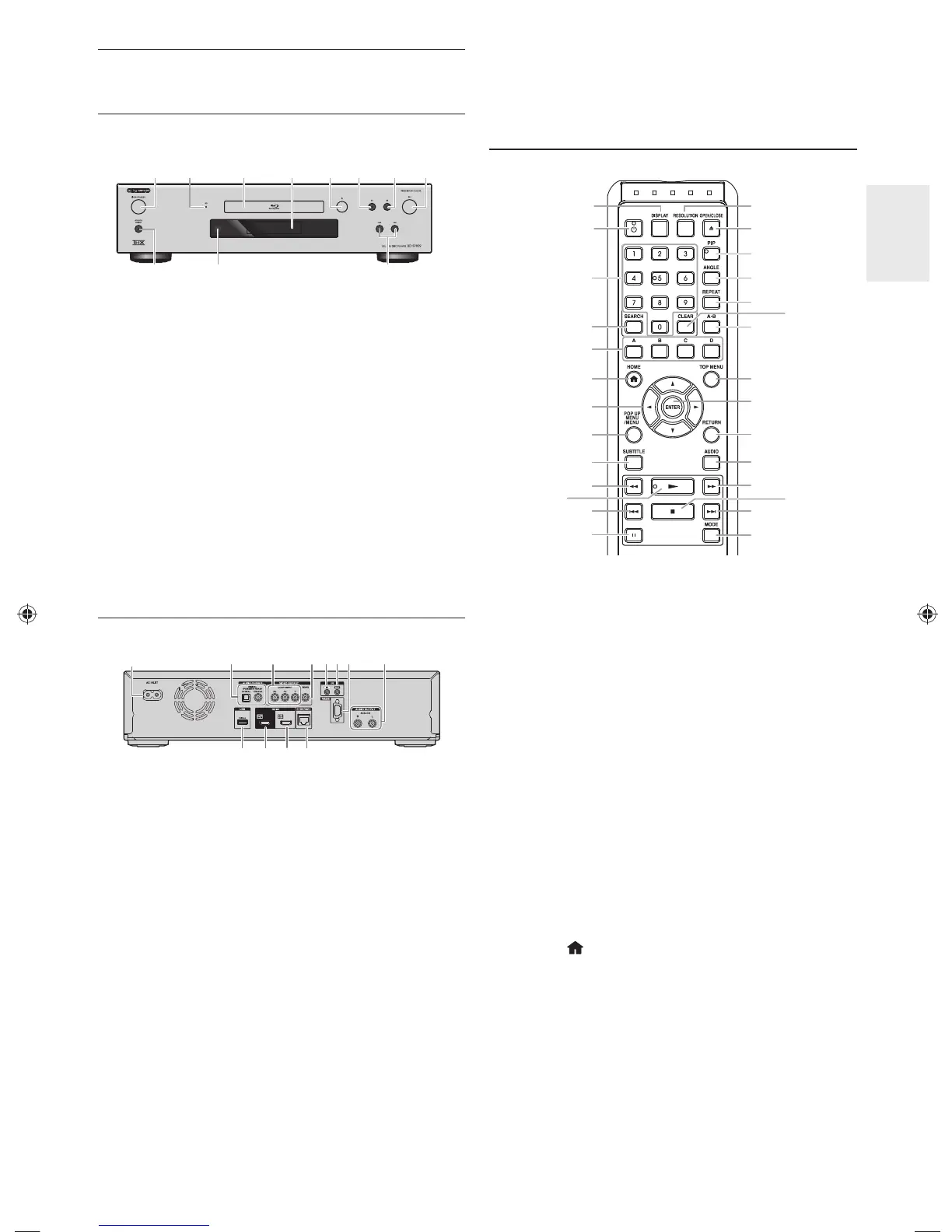

4. FUNCTIONAL OVERVIEW
4.1 Front Panel
911
1 2 3 4 5* 6 7 8*
10
* The unit can also be turned on by pressing these
buttons.
1. . ON/STANDBY button
2. 3D indicator
3. Disc tray
4. Display
5. fl (open/close) button*
6. Δ (pause) button
7. Ê (stop) button
8. B (play) button*
9. H / G (skip down / up) buttons
10. Infrared sensor window
11. SOURCE DIRECT button
4.2 Rear Panel
2
1
67
8
345
101112
9
1. AC INLET terminal
2. AUDIO OUTPUT (DIGITAL OPTICAL / COAXIAL)
jacks
3. VIDEO OUTPUT (COMPONENT) jacks
4. VIDEO OUTPUT (VIDEO) jack
5. IR IN jack
6. IR OUT jack
7. CONTROL CONNECTOR (RS-232)
8. AUDIO OUTPUT (ANALOG L / R) jacks
9. ETHERNET terminal
10. HDMI OUT SUB jack
11. HDMI OUT MAIN jack
12. USB input
C Caution
• Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause permanent
damage to the unit.
• This unit does not have an RF modulator.
• Do not connect any device other than USB flash drive,
USB card reader or USB hub into USB input. (e.g. PC,
external HDD, MP3 player, digital camera, keyboard,
mouse, etc.)
4.3 Remote Control
1
3
6
9
13
5
4
17
18
20
21
25
26
14
16
15*
22
23
24
12
11*
2
19
10
7
8
27
28
* The unit can also be turned on by pressing these
buttons.
1. DISPLAY button
• Press to display the on-screen display menu.
2. . (on/standby) button
• Press to turn on the unit, or to turn the unit into
the standby mode. (To completely shut down the
unit, you must unplug the AC power cord.)
3. Number buttons
• Press to select a chapter during playback.
• Press to enter numbers in the input field.
4. SEARCH button
• Press to display the search menu.
5. A / B / C / D buttons
• Press to activate shortcut keys on some BD-video
functions.
• When file list / thumbnail list is shown, press to
switch between pages.
6. HOME
button
• Press to display the home menu.
7. Î / ï / Í / Æ buttons
• Press to select items or settings.
8. POP UP MENU / MENU button
Blu-ray Disc™:
• Press to display the pop-up menu.
DVD:
• Press to display the disc menu.
9. SUBTITLE button
• Press to select subtitles on a disc.
E5WB0UDENBook.indb11E5WB0UDENBook.indb11 2011/06/0211:48:162011/06/0211:48:16

Onkyo BD-SP809 Specifications

General

3D	Yes
Depth	313 mm
Wi-Fi	No
Width	435 mm
Height	104 mm
Weight	4700 g
Display	-
Device type	Blu-Ray player
Package depth	411 mm
Package width	551 mm
Product color	Silver
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS-HD
Package height	217 mm
Package weight	6100 g
Cables included	AV
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Dimensions (WxDxH)	- mm
Disc types supported	BD-R, BD-RE, BD-ROM, CD, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW
Dynamic range (1kHz)	98 dB
USB 2.0 ports quantity	1
Audio formats supported	MP3, WMA
Image formats supported	JPG
Video formats supported	AVCHD, DIVX, MKV, MPEG1, MPEG2
Power consumption (standby)	0.1 W
Power consumption (typical)	23 W
Signal-to-Noise Ratio (SNR)	100 dB
Audio output channels	5.1 channels
Total Harmonic Distortion (THD)	0.005 %
