Onkyo CR-185 Service Manual

102
10}
4)

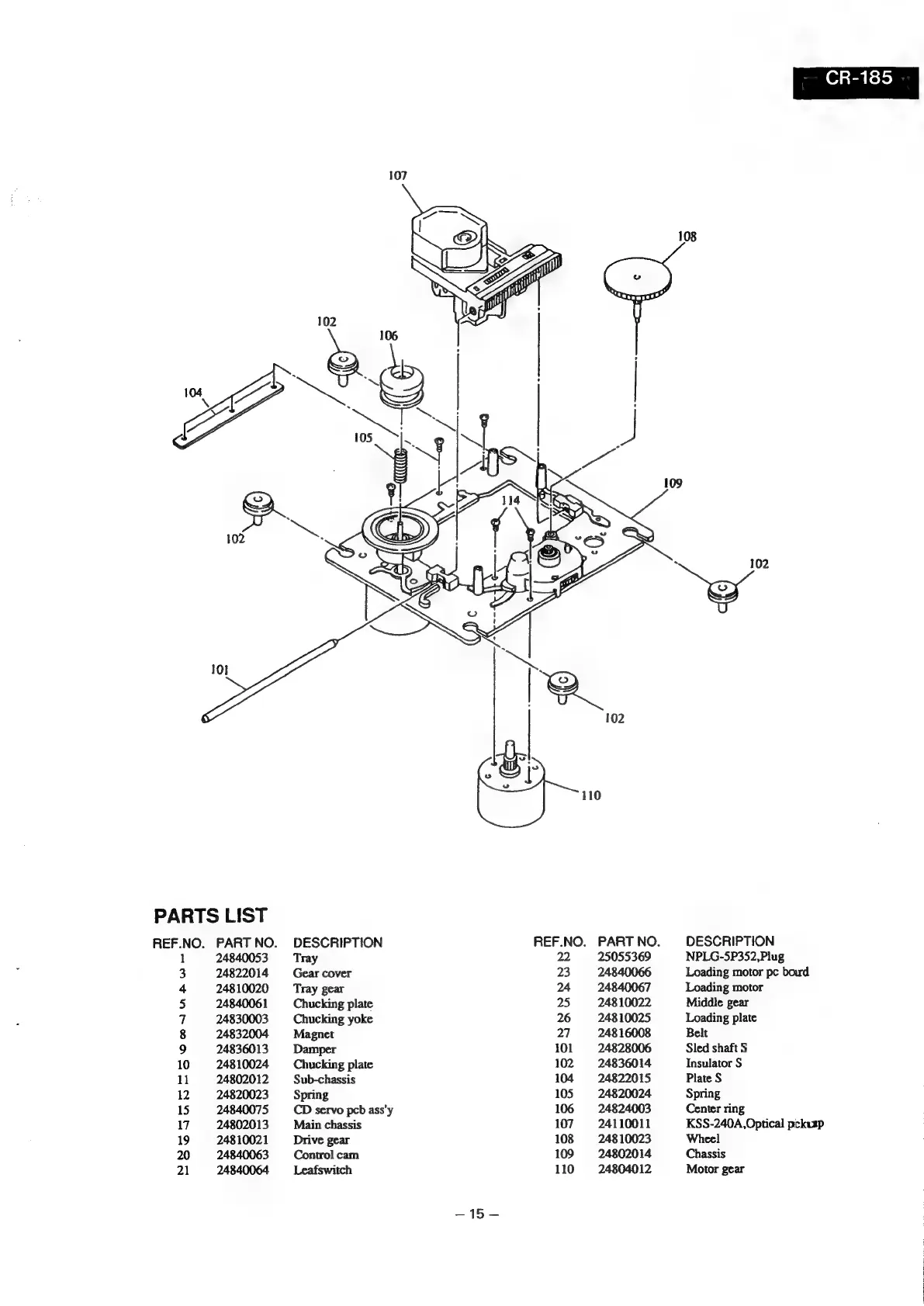

PARTS LIST
REF.NO. PART NO.
1 24840053
3 24822014
4 24810020
5 24840061
7 24830003
8 24832004
9 24836013
10 24810024
11 24802012
12 24820023
15 24840075
17 24802013
19 24810021
20 24840063
21 24840064
107
{
Ch)
:
© RI2
Pe
Sey
ARs [Ud
DESCRIPTION
Tray
Gear cover
Tray gear
Chucking plate
Chucking yoke
Magnet
Damper
Chucking plate
Sub-chassis
Spring
CD servo pcb ass'y
Main chassis
Drive gear
Control cam
Leafswitch
—15—
102
110
REF.NO. PART NO.
22 25055369
23 24840066
24 24840067
25 24810022
26 24810025
27 248 16008
101 24828006
102 =. 24836014
104 =. 24822015
105 24820024
106 24824003
107 24110011
108 24810023
109 24802014
110 24804012
CR-185
108
DESCRIPTION
NPLG-5P352,Plug
Loading motor pe bourd
Loading motor
Middle gear
Loading plate
Belt
Sled shaft S
Insulator S
Plate S
Spring
Center ring
KSS-240A, Optical pckusp
Wheel
Chassis
Motor gear
