Onkyo CR-185 Service Manual

CR-185
PROTECTION
OF
EYES
FROM
LASER
BEAM
DURING
SERVICING

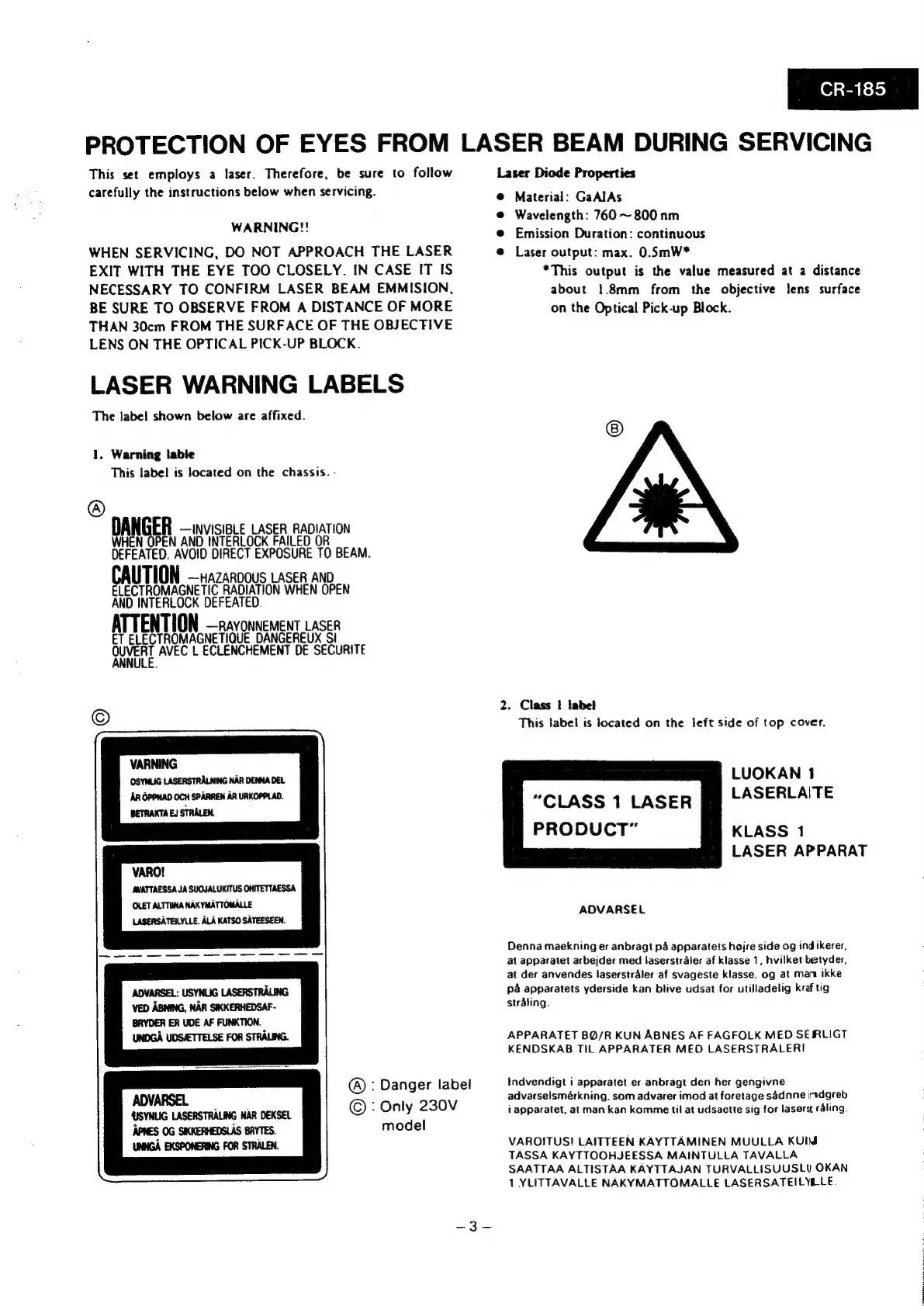

This set employs a laser. Therefore, be sure to follow
carefully the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMMISION,
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.
LASER WARNING LABELS
The label! shown below are affixed.
1. Warning lable
This label is located on the chassis. -
DANGER INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCK OR
TEE Ae REC EXPOSURE 10 BEAM,
CAUTION —sazaroous Laser AND
PLECTROMAGNETIC RADIATION WHEN OPEN
AND INTERLOCK DEFEATED.
ENTION _RAVONNEMENT LASER
ET ELECTROMAGNE HQUE DANGE
QUVERT AVEC L ECLENCHEMENT DE SeCURITE
VARNING
OSYNLIG LASERSTRALNING NAR DENNA DEL
AR OPPNAD OCH SPARREN AR URKOPPLAD.
BETRAKTA EJ STRALEN.
VARO!
ANATTAESSA JA SUOJALUKITUS OHITETTAESSA
OLET ALTTUNA NAKYMATTOMALLE
LASERSATEILYLLE. ALA KATSO SATEESEEN.
ADVARSEL: USYNUG LASERSTRALING
VED ABNING, NAR SIKKERHEDSAF-
BRYDER ER UDE AF FUNKTION.
UNDGA UDS/ETTELSE FOR STRALING.
® : Danger label
© : Only 230V
model
ADVARSEL
{USYNLIG LASERSTRALING NAR DEKSEL
APNES OG SIKKERHEDSLAS BRYTES.
UNNGA EKSPONERING FOR STRALEN.
Laser Diode Properties
@ Material: GaAlAs
@ Wavelength: 760 ~ 800 nm
@ Emission Duration: continuous
@ Laser output: max. 0.5mW*
*This output is the value measured at a distance
about 1.8mm from the objective lens surface
on the Optical Pick-up Block.
2. Class I label
This label is located on the left side of top cover.
LUOKAN 1
“CLASS 1 LASER LASERLAITE
PRODUCT” KLASS 1
LASER APPARAT
ADVARSEL
Denna maekning er anbragt pd apparatets hojre side og ind ikerer,
at apparatet arbejder med jaserstraler af klasse 1, hvilket betyder,
at der anvendes laserstraler af svageste klasse, og at man ikke
pa apparatets yderside kan blive udsat for utilladelig kraf tig
straling.
APPARATET BQ@/R KUN ABNES AF FAGFOLK MED SE RLIGT
KENDSKAB TIL APPARATER MED LASERSTRALER!
Indvendigt i apparatet er anbragt den her gengivne
advarselsmérkning, som advarer imod at foretage sadnne isdgreb
i apparatet, at man kan komme til at udsaette sig for lasers raling.
VAROITUS! LAITTEEN KAYTTAMINEN MUULLA KUIN
TASSA KAYTTOOHJEESSA MAINTULLA TAVALLA
SAATTAA ALTISTAA KAYTTAJAN TURVALLISUUSLY OKAN
1 YLITTAVALLE NAKYMATTOMALLE LASERSATEILYELE.
