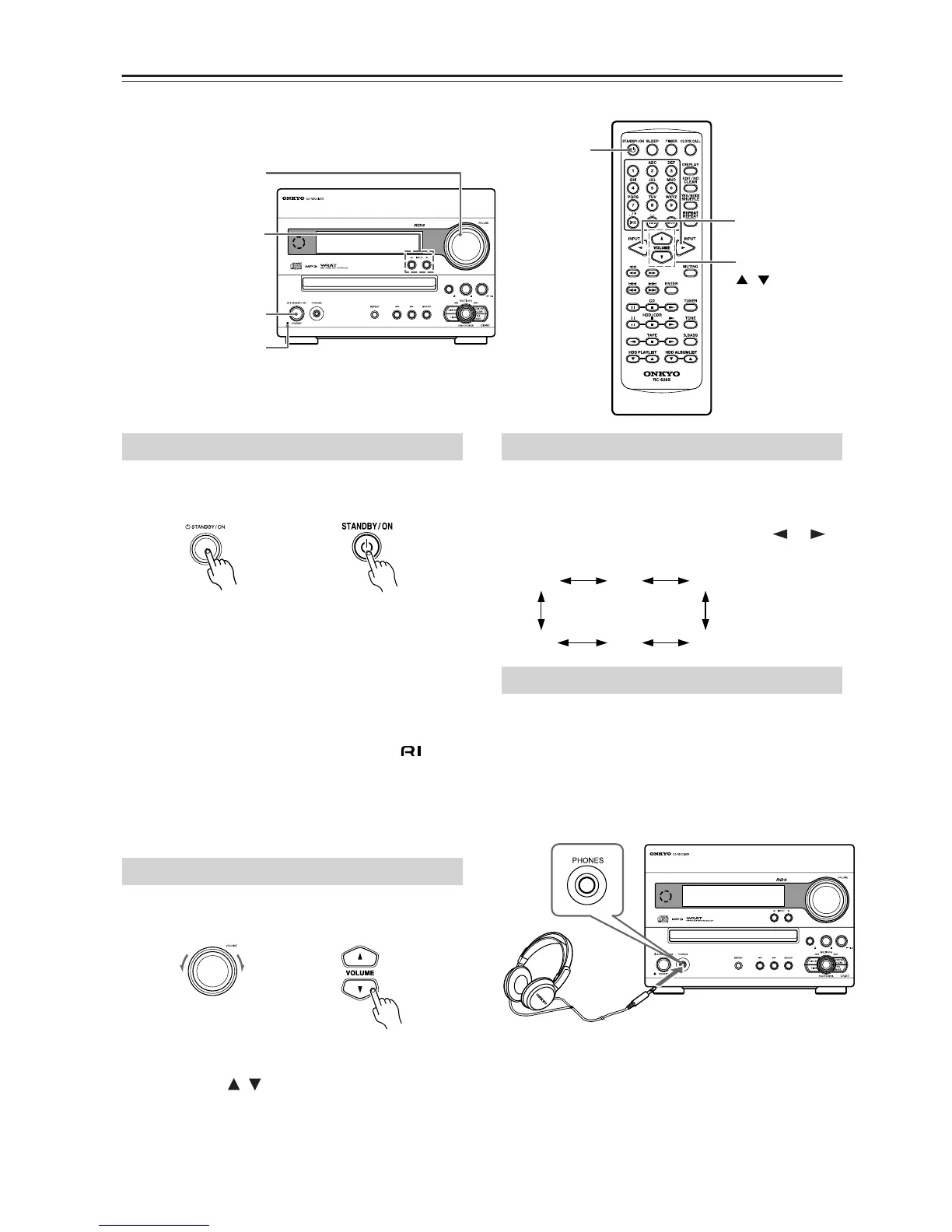

Understanding Common Operations
Press STANDBY/ON on the unit or on the remote con-
troller.
If you press the same button again, the unit will turn
off and enter Standby mode.
Tip:
• When you start playing (or turn on the power to) an
Onkyo RI Dock, CD recorder or cassette tape deck
that is connected to the CD receiver via an cable
and analog audio cables, the power to the CD receiver
is automatically turned on. Also, if you turn on or off
the power to the CD receiver, the power to such a
device is automatically turned on or off (standby).
Turn VOLUME clockwise to increase the volume or
counterclockwise to decrease the volume on the unit.
Press VOLUME on the remote controller.
You can select CD, FM, AM, or connected external
audio/video equipment (HDD, TAPE, LINE) as the
audio source.
To select the audio source, press the INPUT or
button repeatedly.
Decrease the volume, then connect the stereo head-
phones mini plug to the PHONES jack.
You can adjust the volume and mute the sound as
described above.
The speakers will reproduce no sound while the head-
phones are connected.
VOLUME
STANDBY/ON
VOLUME
/
STANDBY/
ON
INPUT buttons
INPUT buttons
STANDBY
indicator
Turning the Unit On and Standby
Adjusting the Volume
Remote
controller
CD receiver
Remote
controller
CD receiver
/
Selecting a Source
Listening through the Headphones
CD FM AM
HDDTAPELINE
To PHONES jack

Onkyo CR-N7 Specifications

Power

power supply	AC 230–240 V, 50 Hz
power consumption	68 W
stand-by power consumption	0.3 W

Audio Inputs and Outputs

analog inputs	LINE, TAPE, HDD
digital outputs	Optical: 1
analog outputs	TAPE, HDD

Amplifier Specifications

power output	14 W + 14 W (8 Ω, 40 Hz–20 kHz THD, 0.4%)
dynamic power	26 W + 26 W (4 Ω, JEITA)
damping factor	25 (8 Ω)

Tuner Specifications

fm tuning frequency range	87.5 MHz–108 MHz
am tuning frequency range	522 kHz–1611 kHz
stereo separation	40 dB (1 kHz)

CD Specifications

frequency response	10 Hz–20 kHz
audio dynamic range	92 dB
thd (total harmonic distortion)	0.009 %

Weight and Dimensions

dimensions	205 W x 147 H x 356 D mm
weight	4.3 kg
