16
CONNECTIONS
EN
• When you change the connections, all devices should be turned off.
• Refer to the manual accompanying external devices for more information.

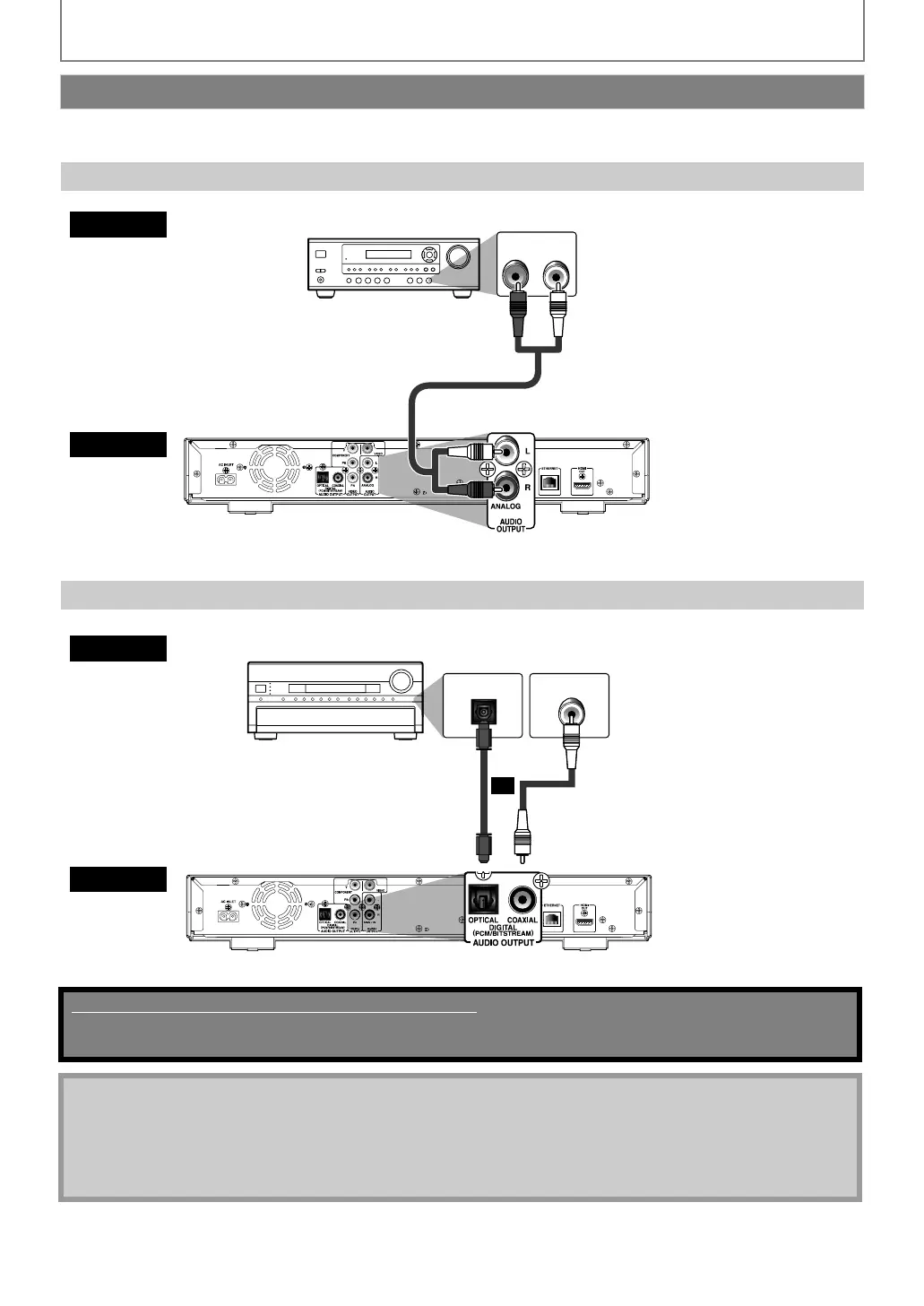

Connection to an Audio System
2-Channel Analogue Audio Connection
AUDIO IN
LR
audio
AUDIO OUTPUT (ANALOG L/R)
analogue audio input jacks
RCA audio cable
stereo system
this unit
Digital Audio Connection
COAXIAL
DIGITAL AUDIO INPUT
OPTICAL
DIGITAL AUDIO INPUT
audio
or
AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL)
digital audio
optical input jack
digital audio
optical cable
AV receiver / amplifier
this unit
digital audio
coaxial cable
digital audio
coaxial input jack
Supplied cables used in these connections are as follows:
• RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
Note for Digital Audio Optical Cable
• Digital audio optical cable may be damaged when bent at sharp angles. Ensure cables are coiled in loops with a
diameter of 15cm or more when storing them.
• Use a cable which is 3m or shorter.
• Insert cable plugs firmly into the connectors when making connections.
• If a plug has dust or is dirty, clean it with a soft cloth before inserting it into a connector.
E5L50ED_EN.book Page 16 Wednesday, June 10, 2009 1:02 PM
