FUNCTION SETUP
EN
S Digital out setting
When “Audio Mute” is selected in “HDMI Audio Out” setting, HDMI audio signal will be muted and the audio signals
output from AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks change depending on “Digital Out” setting.
• This setting is not effective when the HDMI audio signal is output.
S Speaker setting
This unit allows you to enjoy multi-channel surround sound such as 7.1-channel / 5.1-channel surround.
To make the most of its feature, set up your speakers appropriately by referring to the following table.
Speaker setting options are available at the following locations;
<Speaker setting for the audio signal output from HDMI OUT jack>
(Available when you have HDMI cable connected to HDMI OUT jack)
Quick A HDMI Audio Out A HDMI Multi(LPCM)
Custom A Audio A HDMI Audio Out A HDMI Multi(LPCM)
Quick A HDMI Audio Out A Audio Mute A Digital Out
Bitstream*:
When playing back discs recorded in Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD, the
corresponding core stream (Dolby Digital or DTS) are output.
LPCM:
LPCM signal will be output from AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks.

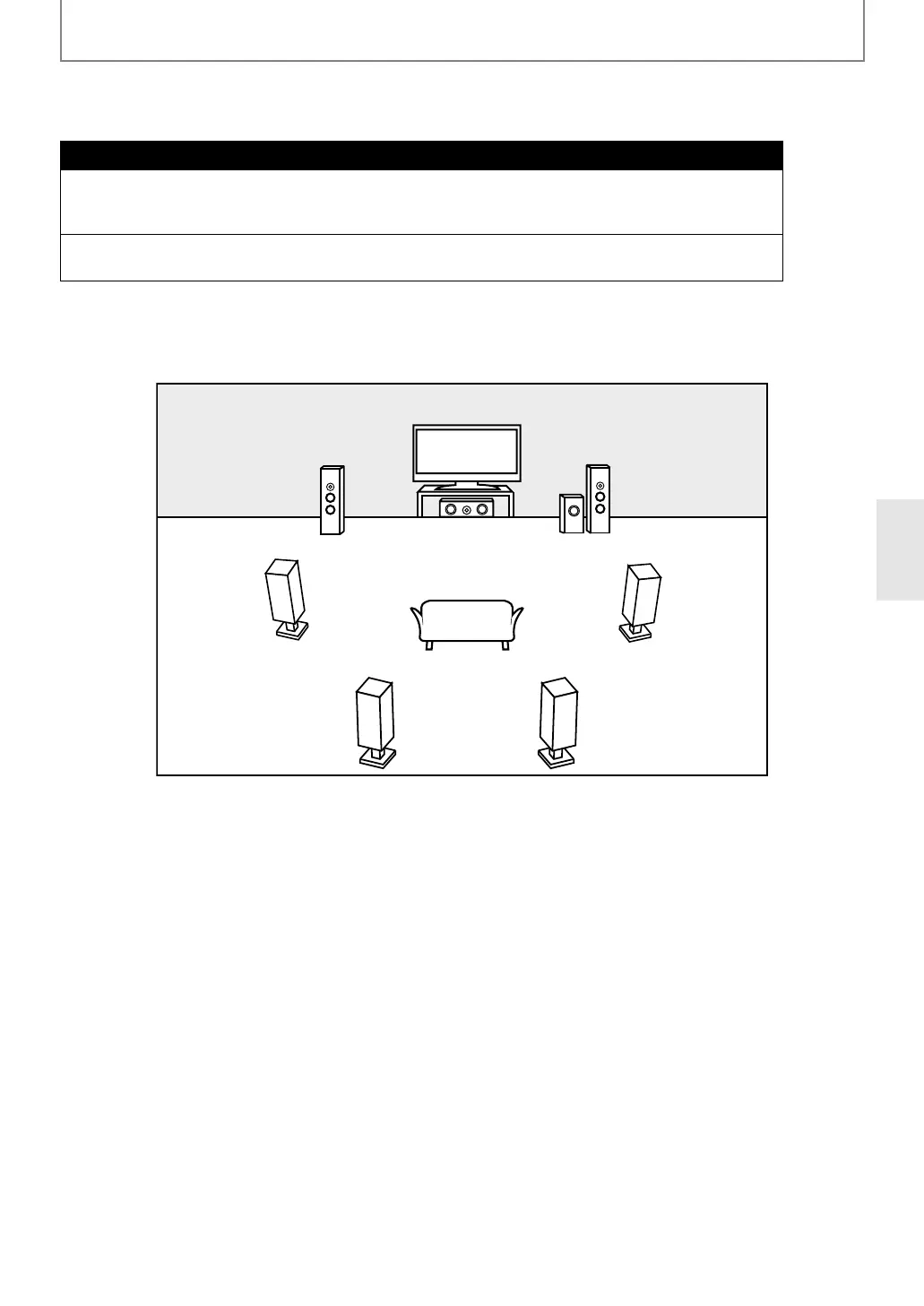

e.g.) basic layout with 7.1-channel surround system
Front speaker (left)
Front speaker (right)
Centre speaker
Subwoofer
Surround speaker (left)
Surround speaker (right)
Surround back speaker (left)
Surround back speaker (right)
Digi
