Onkyo DV-SP500 Service Manual

1 Spindle Motor VXM1088
(or VXM1089)
2 Stepping Motor VXM1090
(CARRIAGE) (or VXM1091)
3 Pickup Assy-S OXX8003
4 Skew Screw VBA1080
5 Skew Spring VBH1335
6 Guide Bar VLL1514
7 Sub Guide Bar VLL1515
8 Hold Spring
VNC1017
12
8
3
7
1
18
18
13
16
19
4 (Adjustment Screw)
4 (Adjustment Screw)
18
10
10
6
5
5
11
15
14
9
16
2
17 (Torque : 0.12+/- 0.01 N m)
17 (Torque : 0.12+/- 0.01 N m)
17
(Torque : 0.12+/- 0.01 N m)
9 Joint Spring VNC1019
10 Support Spring VNC1020
NSP 11 Mechanism Chassis VNE2248
12 Slider VNL1811
13 Spacer VNL1913
14 Joint VNL1914
15 FFC Holder VNL1915
16 Screw BBZ20P050FZK
17 Screw OBA8009
18 Screw PMA26P100FMC
19 Damper Sheet VEB1335
Mark No. Description Part No.
TRAVERSE MECHANISM ASSY-S PARTS LIST
Mark No. Description Part No.
.
.
.
NSP : Not service part
DV-SP500

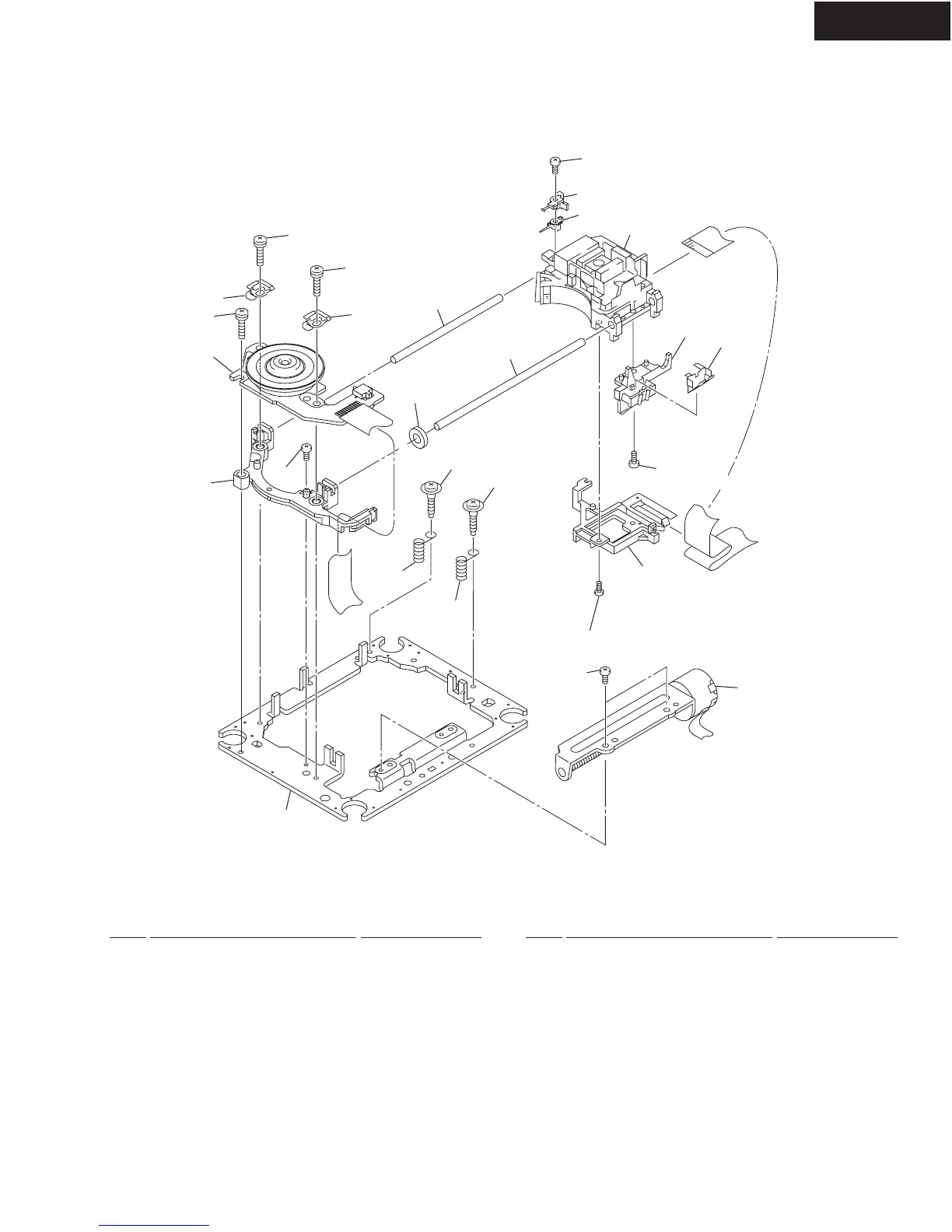

EXPLODED VIEW / PARTS LIST
TRAVERSE MECHANISM ASSY
