Onkyo DV-SP500 Service Manual

DV-SP500
ADJUSTMENT PROCEDURE-1
1
1 2
2
3
Tangential
adjustment
screw
12
Radial
adjustment
screw
Screwdriver (large)
TV monitor
Precise screwdriver
Screwdriver (medium)
ADJUSTMENT ITEMS AND
LOCATION
Adjustment Items
[Mechanism Part]
[Electrical Part]
Tangential and Radial Height Coarse Adjustment
DVD Jitter Adjustment
Initialize the Focus Sweep Setting
Electrical adjustments are not required.
JIGS AND MEASURING
INSTRUMENTS

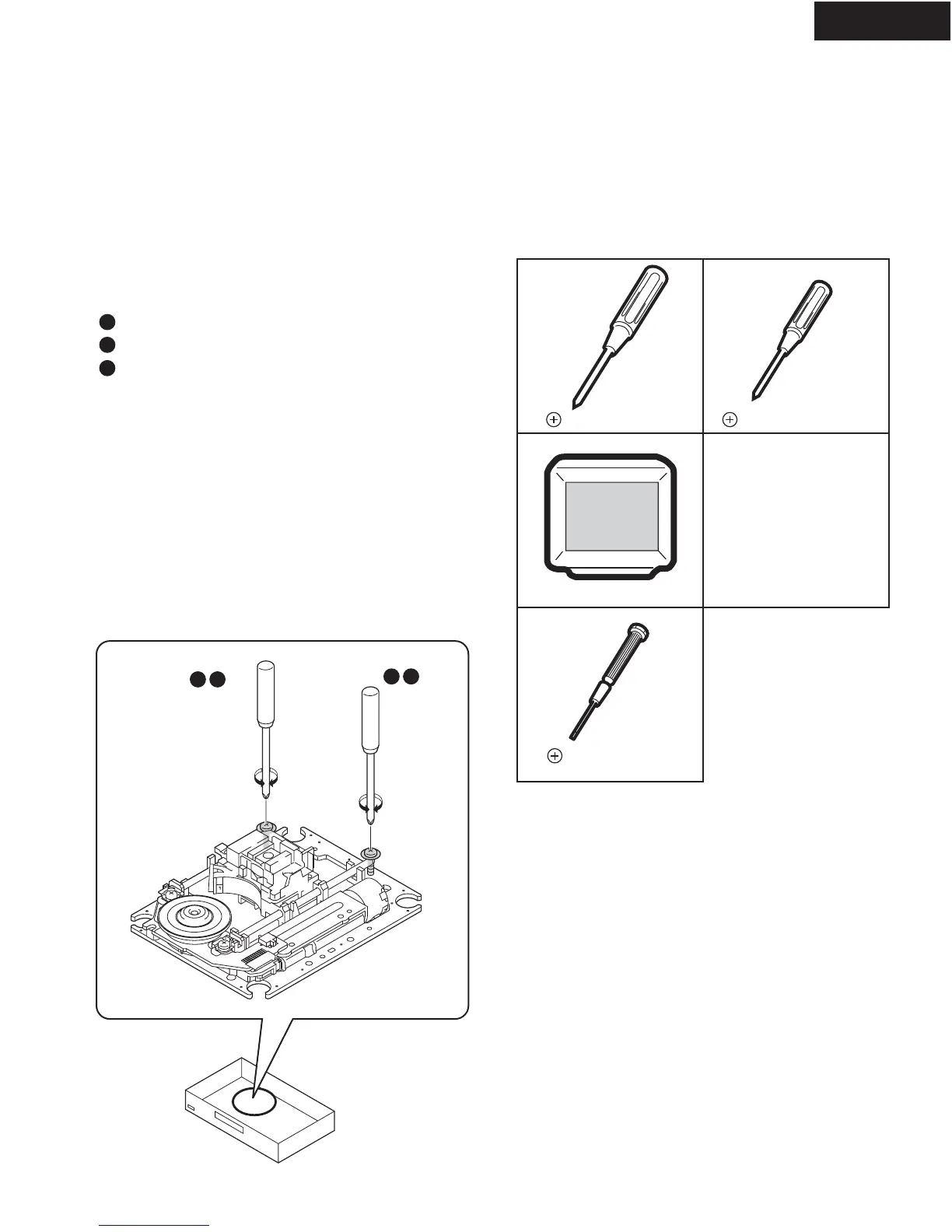

Adjustment Points (Mechanism Part)
Cautions: After adjustment, adjustment screw locks with the
Screw tight.
Screw light
