DV-SP500

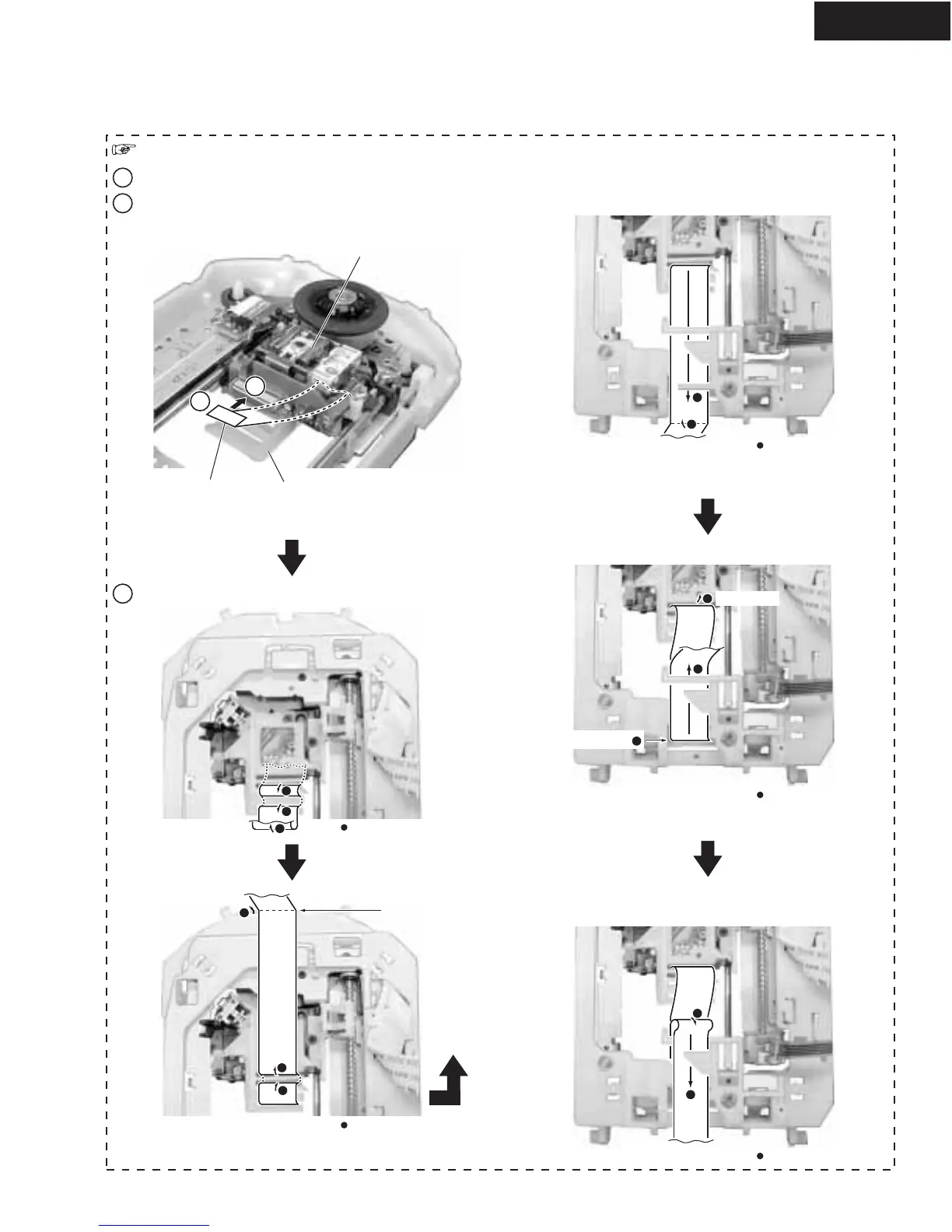

Disassembly of the Traverse Mechanism Assy-3
Lose slack
Bottom View
Fold position of step
6
7
8
Bottom View
9
10
Bottom View
11
12
Reference line
Fold it at the position
of reference line.
Pickup Assy
FFC Holder
Conducting plane
1
1
2
2
Insert the Pickup Flexible Cable in connector, and lock it surely.
3
Perform the styling as shown in figure below.
Caution:
Move the Pickup to the innermost of the disc.
Fold a edge of lining part of the Pickup Flexible Cable.
Bottom View
Bottom View
1
2
3
6
4
5
Styling the Pickup Flexible Cable
5
To Next Page
