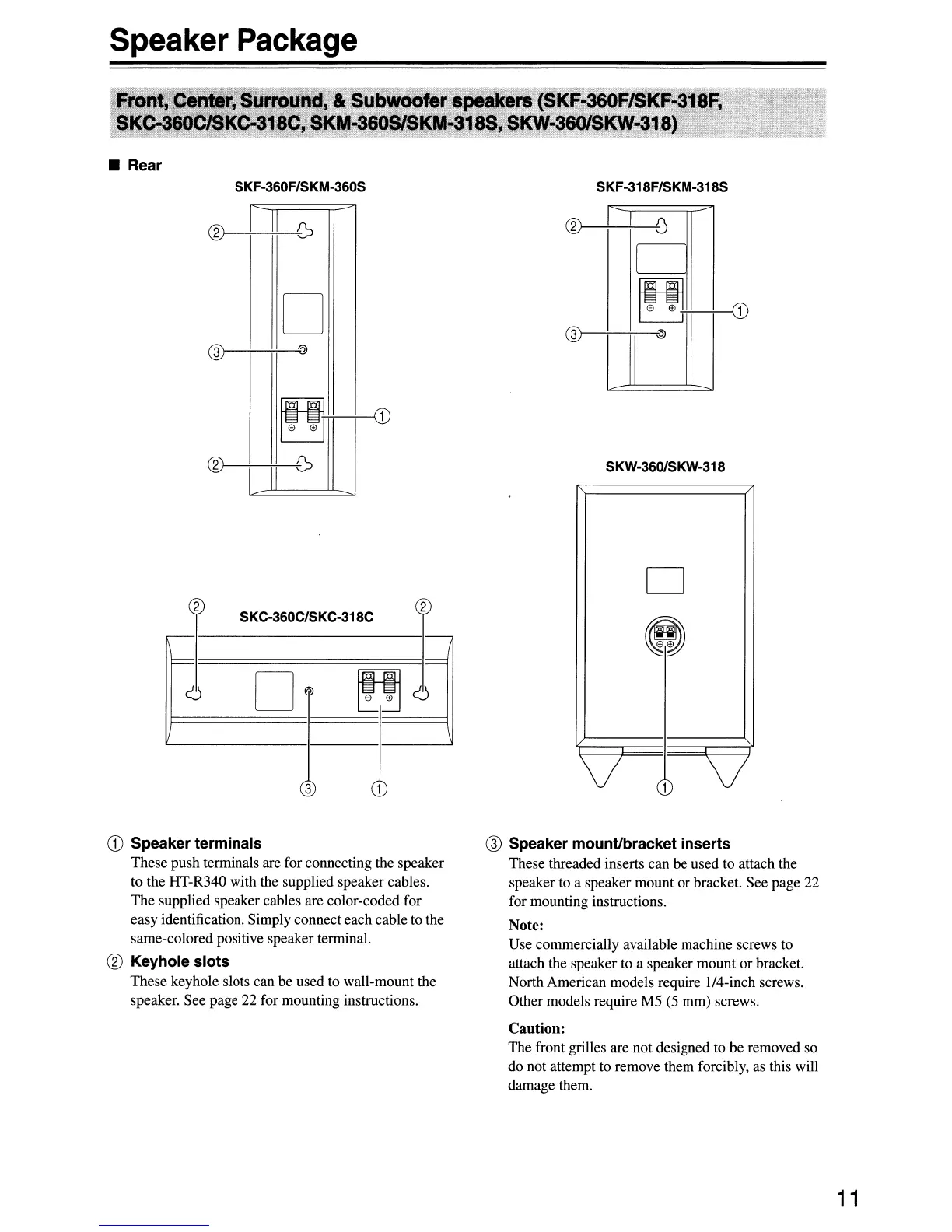

Speaker Package
• Rear
SKF-360F/SKM-360S
0>
D
@
SKF-318F/SKM-318S
[)
e
(1)
SKW-360/SKW-318
~
SKC-360C/SKC-318C
~
D®
~
~~
i
3
v
D
@
v
CD
Speaker terminals
These push tenninals are for connecting the speaker
to the HT-R340 with the supplied speaker cables.
The supplied speaker cables are color-coded for
easy identification. Simply connect each cable to the
same-colored positive speaker tenninal.
® Keyhole slots
These keyhole slots can be used to wall-mount the
speaker. See page 22 for mounting instructions.
@ Speaker mountlbracket inserts
These threaded inserts can be used to attach the
speaker to a speaker mount
or
bracket. See page 22
for mounting instructions.
Note:
Use commercially available machine screws to
attach the speaker to a speaker mount
or
bracket.
North American models require 1I4-inch screws.
Other models require M5
(5
mm) screws.
Caution:
The front grilles are not designed to be removed so
do not attempt to remove them forcibly, as this will
damage them.
11
