Onkyo HT-R340 User Manual

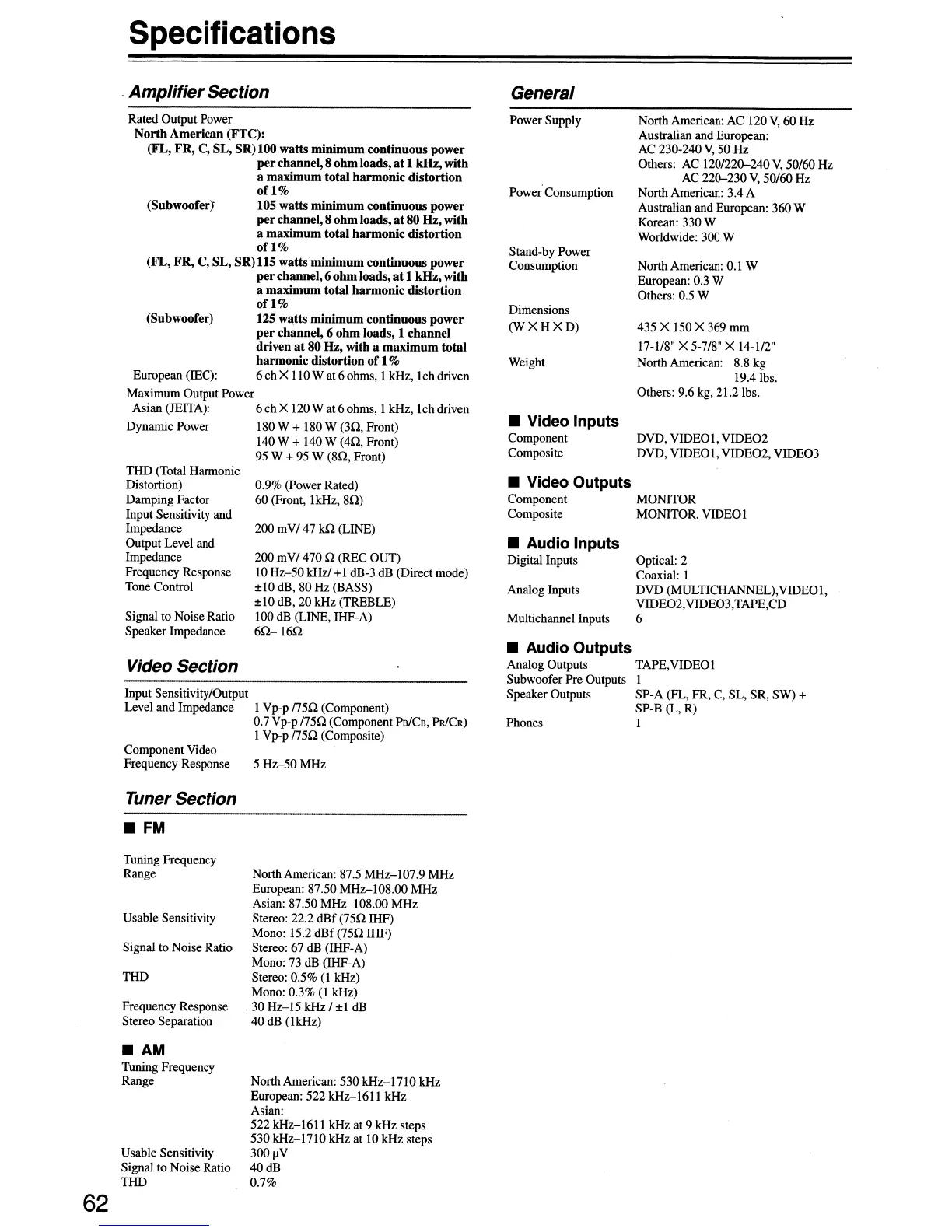

Specifications
.Amplifier Section
Rated Output Power
North American (FTC):
(FL, FR, C, SL, SR)100 watts minimum continuous power
per channel, 8ohmloads, at 1 kHz,with
a maximum total harmonic distortion
ofl%
(Subwoofer) 105 watts minimum continuous power
per channel,8 ohm loads, at 80 Hz, with
a maximum total harmonic distortion
ofl%
(FL, FR, C, SL, SR)115 watts·minimum continuous power
per channel,6 ohm loads, at 1 kHz, with
a maximum total harmonic distortion
ofl%
(Subwoofer) 125 watts minimum continuous power
per channel, 6 ohm loads, 1 channel
driven
at 80 Hz, with a maximum total
harmonic distortion
of 1%
European (IEC): 6 ch X 110W at 6 ohms, I kHz, Ich driven
Maximum Output Power
Asian (lEITA): 6
chX 120W at 6 ohms, I kHz, Ich driven
Dynamic Power 180 W
+ 180 W (30, Front)
140W + 140W (40, Front)
95 W
+95 W (80, Front)
General
Power Supply
Power· Consumption
Stand-by Power
Consumption
Dimensions
(WXHXD)
Weight
• Video Inputs
Component
Composite
North American: AC 120
V, 60 Hz
Australian and European:
AC 230-240 V, 50 Hz
Others:
AC 1201220-240 V, 50/60 Hz
AC 220-230 V, 50/60 Hz
North American: 3.4 A
Australian and European: 360 W
Korean: 330 W
Worldwide: 300 W
North American: 0.1 W
European: 0.3 W
Others: 0.5 W
435 X 150 X 369
mm
17-l/8" X 5-7/8" X 14-l/2"
North American: 8.8 kg
19.4lbs.
Others: 9.6 kg, 21.2 Ibs.
DVD, VIDEOI,
VIDE02
DVD, VIDEOI, VIDE02, VIDE03
Input Sensitivity/Output
Level and Impedance I Vp-p
n50 (Component)
0.7 Vp-p
n50 (Component PB/CB, PRlCR)
I Vp-p n50 (Composite)
• Video Outputs
Component MONITOR
Composite MONITOR, VIDEOI
• Audio Outputs
Analog Outputs TAPE,VIDEOI
Subwoofer Pre Outputs I
Speaker Outputs SP-A (FL, FR, C, SL, SR, SW)
+
SP-B (L, R)
Phones 1
62
THD (Total Harmonic
Distortion)
Damping Factor
Input Sensitivity and
Impedance
Output Level and
Impedance
Frequency Response
Tone Control
Signal to Noise Ratio
Speaker Impedance
Video Section
Component Video
Frequency Response
Tuner Section
• FM
Tuning Frequency
Range
Usable Sensitivity
Signal to Noise Ratio
THD
Frequency Response
Stereo Separation
• AM
Tuning Frequency
Range
Usable Sensitivity
Signal to Noise Ratio
THD
0.9% (Power Rated)
60 (Front, 1kHz,
80)
200 mV/ 47 ill (LINE)
200
mV/470 0 (REC OUT)
10 Hz-50 kHz! +I dB-3 dB (Direct mode)
:1:10 dB, 80 Hz (BASS)
±1O dB, 20 kHz (TREBLE)
100
dB (LINE, IHF-A)
60-160
5 Hz-50 MHz
North American: 87.5 MHz-107.9 MHz
European: 87.50
MHz-I08.00 MHz
Asian: 87.50 MHz-108.DO MHz
Stereo: 22.2 dBf
(750 IHF)
Mono: 15.2 dBf (750 IHF)
Stereo: 67 dB (IHF-A)
Mono: 73 dB (IHF-A)
Stereo: 0.5%
(I kHz)
Mono: 0.3%
(I kHz)
.30 Hz-15 kHz / ±I dB
40 dB (1kHz)
North American: 530 kHz-1710 kHz
European: 522
kHz-I 61 I kHz
Asian:
522 kHz-1611 kHz at 9 kHz steps
530 kHz-171O kHz at 10 kHz steps
300
l!V
40 dB
0.7%
• Audio Inputs
Digital Inputs
Analog Inputs
Multichannel Inputs
Optical: 2
Coaxial: I
DVD (MULTICHANNEL),VIDEOI,
VIDE02,VIDE03,TAPE,CD
6

Onkyo HT-R340 Specifications

General

Channels	5.1
Audio Decoding	Dolby Digital, DTS
AM/FM Tuner	Yes
Speaker Impedance	6 Ohms
HDMI	Yes
HDMI Outputs	1
Analog Audio Inputs	4
Subwoofer Output	Yes
Bluetooth	No
Wi-Fi	No
Power Output	100W per channel
Inputs	HDMI, Composite Video, Digital Audio (Optical/Coaxial), Analog Audio
Outputs	HDMI, Composite Video, Analog Audio, Subwoofer Pre-out
Type	AV Receiver
Input Sensitivity	200 mV
Signal-to-Noise Ratio	100 dB
Dimensions	435 x 150 x 318 mm
