Onkyo HT-R340 User Manual

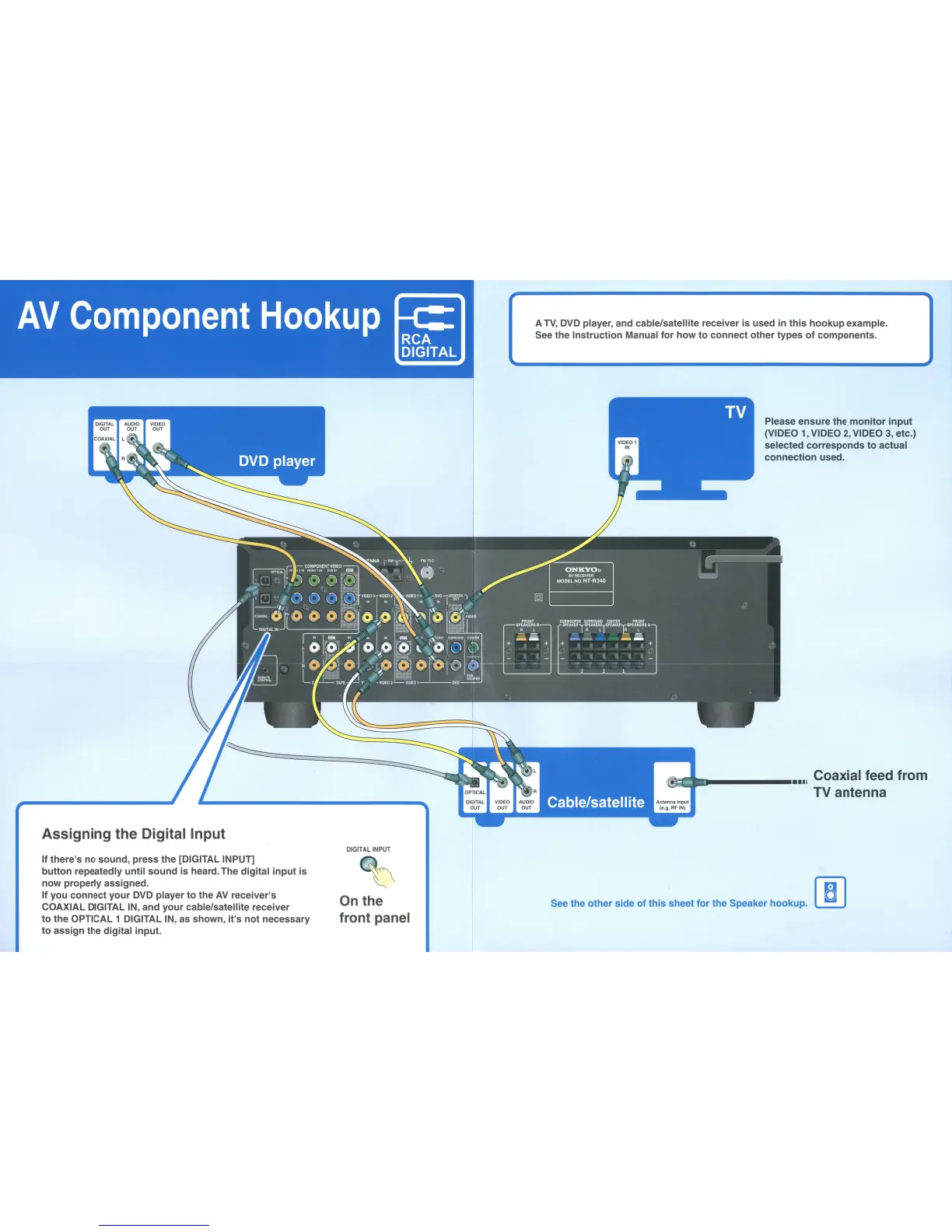

A TV, DVD player, and cable/satellite receiver is used in this hookup example.
See the Instruction Manual for how to connect other types of components.
Please ensure the
monitor input
(VIDEO 1, VIDEO 2, VIDEO 3, etc.)
selected
corresponds to actual
connection used.
Assigning the Digital Input
DIGITAL INPUT
~!Ci.::JIII--- ... 1
Coaxial feed from
TV antenna
If there's no sound, press the [DIGITAL INPUT]
button repeatedly until
sound is heard. The digital input is
now properly assigned.
If you connect
your DVD player to the AV receiver's
COAXIAL DIGITAL IN, and
your cable/satellite receiver
to the OPTICAL 1 DIGITAL IN, as shown, it's not necessary
to assign the digital input.
On the
front panel
See the other side of this sheet for the Speaker hookup. IBI

Onkyo HT-R340 Specifications

General

Channels	5.1
Audio Decoding	Dolby Digital, DTS
AM/FM Tuner	Yes
Speaker Impedance	6 Ohms
HDMI	Yes
HDMI Outputs	1
Analog Audio Inputs	4
Subwoofer Output	Yes
Bluetooth	No
Wi-Fi	No
Power Output	100W per channel
Inputs	HDMI, Composite Video, Digital Audio (Optical/Coaxial), Analog Audio
Outputs	HDMI, Composite Video, Analog Audio, Subwoofer Pre-out
Type	AV Receiver
Input Sensitivity	200 mV
Signal-to-Noise Ratio	100 dB
Dimensions	435 x 150 x 318 mm
