DEBUG MODE-2
AUDIO DEBUG MODE-2/5
TX-SR313/ HT-R358/391/558/591/ HT-RC430

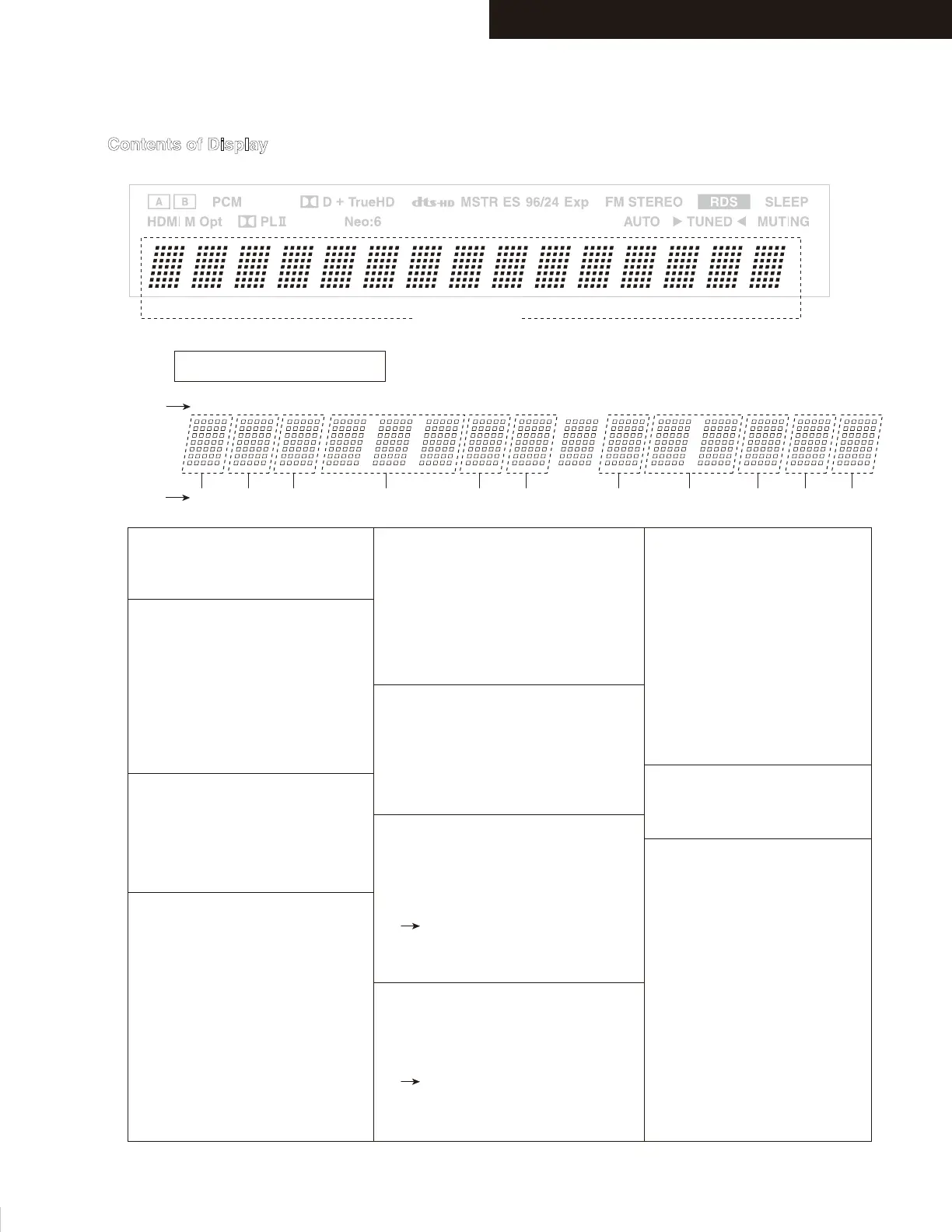

Contents of Display
FL Display
Display area
e.g.
0A0002:__:00__
1 141312106 87432 5 9 11 15
1. DIR INPUT LOCK/UNLOCK
E:UNLOCK
:LOCK
2. DIR INPUT RX
0:None
1:COAX1
2:COAX2
3:OPT1
4:OPT2
5:FRONT
8:HDMI1
9:HDMI2
3. DIR/ADC,FIX MODE
D:Digital(SPDIF)
A:Analog
M:AnalogMultich
p:PCM FIXED
d:DTS FIXED
4. Sampling Freq,Emphasis
32K: 32 kHz w/o Emphasis
44K: 44.1kHz w/o Emphasis
48K: 48 kHz w/o Emphasis
64K: 64 kHz
88K: 88.2kHz
96K: 96 kHz
176:176.4kHz
192:192 kHz
32e: 32 kHz w Emphasis
44e: 44.1kHz w Emphasis
48e: 48 kHz w Emphasis
5. DIR DETECT TYPE
0:Analog
1:PCM
2:Not PCM
3:Data
4:DTS CD(Not used)
5:Multich
6:Not Decided
6. CODEC CLOCK MODE
N:Normal
U:Up Sampling
H:High Sampling(Double Rate)
D:Down Smapling
Q:Quad Rate
7. DSP PORT
bit0:NIC
bit1:DEC
bit2:BUSY
bit3:EXEC WAIT
1 3 7542 6 8 9 10 11
8. DSP SEQUENCE
00-FE:NotFree
2D:Mute Control
FF:Free
9. DSP DETECT FORMAT
P:PCM(Analog)
D:Dolby Digital
d:DTS
A:AAC
d:DTS
A:AAC
S:DSD
p:DolbyDigital+
T:TrueHD
H:DTSHD High Resolution
M:DTSHD MaterAudio
?:UNKNOWN
10. DSP DECODE OK
o:OK
x:NG
11. Mute
1:Selector
2:Effector
4:DSP
8:DIR
Refer to “DEBUG MODE-3”
Description of the DSP PORT
(NIC/DEC/SPI Busy/Exec wait)
Refer to “DEBUG MODE-4, -5”
Description of the
DSP Sequence
Number of
digits
Number of
Parameters
