Explanations on this page are for controlling the HT-R500. To
operate other components, see “Using the remote controller” on
pages 34 through 35, and “Pre-programming remote controller” on
pages 36 and 37.
For operational instructions, refer to the page indicated in brackets.
1 SLEEP button [27]
For setting the sleep time.
This button is provided only on the remote controller.
2 STANDBY/ON button [17]
Turns on the HT-R500 or put it in standby.
3 Listening mode buttons [32]
Press to change the listening mode.
4 CINE FLTR button [29]
Press to activate/de-activate Cinema Filter function.
5 LATE NIGHT button [29]
Press to change the late night setting.
6 TEST/CH SEL/LEVEL 5/∞ buttons [20, 28]
For setting the output levels for each speaker.
These buttons are provided only on the remote controller.
7 AUDIO SEL button [28]
Press to select an audio input signal format.
8 INPUT SELECTOR buttons [21-25, 28, 33]
For selecting the input source.
9 MUTING button [26]
Activates the mute function.
This button is provided only on the remote controller.
0 PRESET 2/3 button [25]
For selecting a tuner preset channel.
- DIMMER button [27]
For adjusting the brightness of the front display.
= Mode buttons [34-37]
For selecting the component to be operated by the remote
controller.
~ SP A/SP B buttons [21, 26]
Press to switch the speaker systems.
! AUDIO ADJUST button [29]
Press to adjust bass, treble, late night function and cinema filter
function setting.
@ ADJUST 2/3 button [29]
Press to adjust the values and parameters of the mode selected
using the AUDIO ADJUST, SPEAKER ADJUST or AUDIO
SELECTOR button.
# VOLUME 5/∞ button [21, 24]
For adjusting the volume.
Index to parts and controls
1
-
0
=
~
#
2
3
4
5
6
7
9
8
!
@

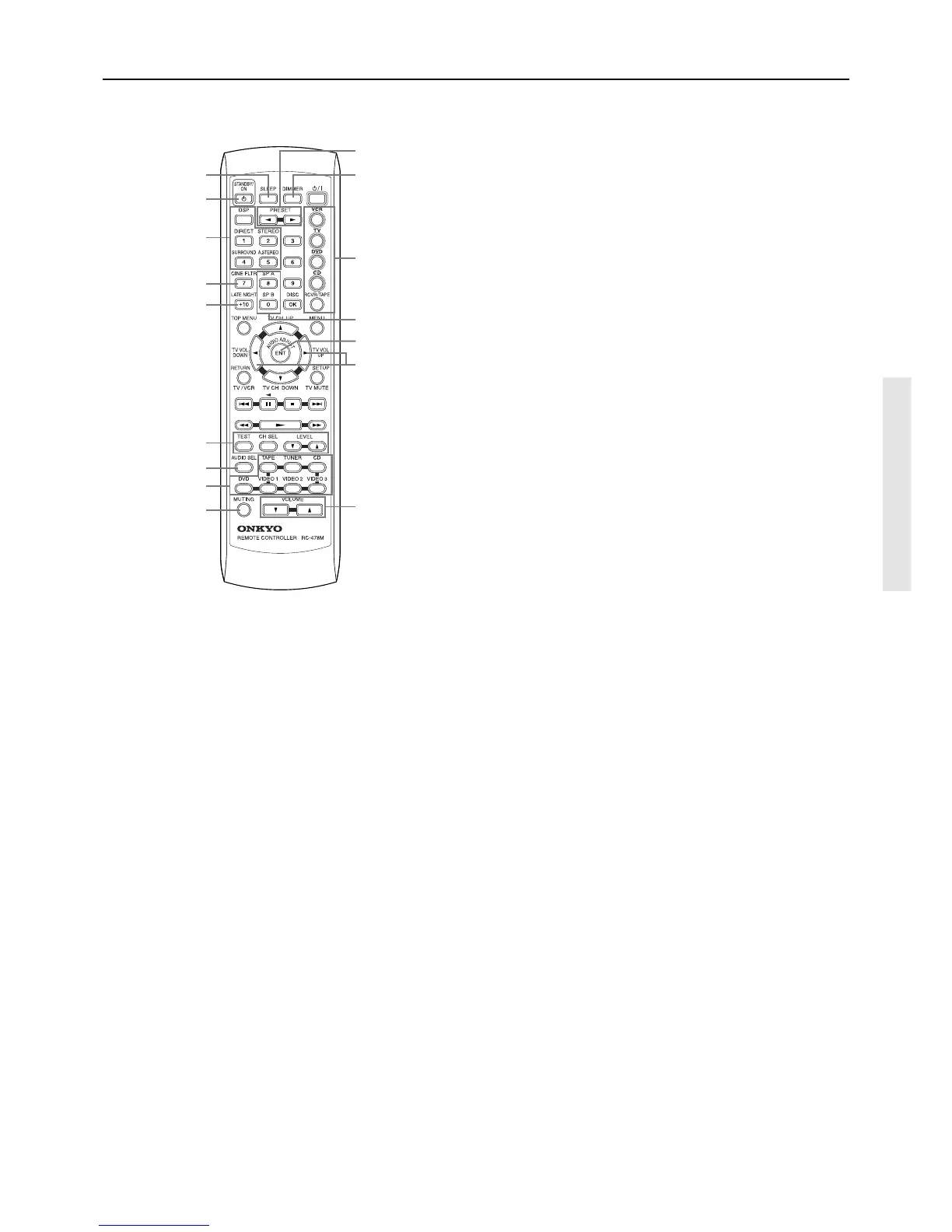

Remote controller
