Remote Controller
—Continued

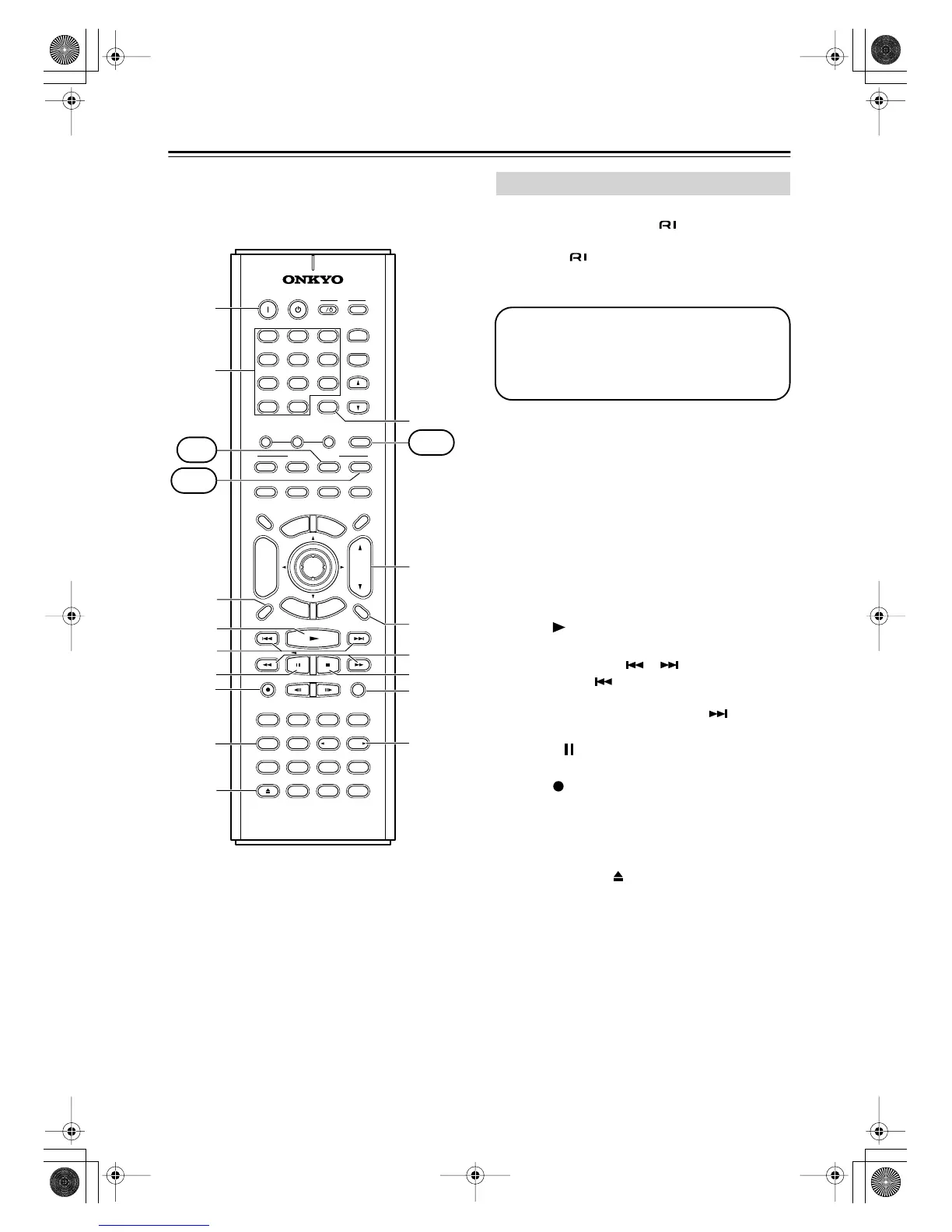

MD mode is used to control an Onkyo MiniDisc recorder
connected to the HT-R520 via . CDR mode is used
to control an Onkyo CD recorder connected to the
HT-R520 via .
To select MD mode, press the [MD] mode button. To
select CDR mode, press the [CDR] mode button.
A
ON button
This button is used to set the MiniDisc recorder or
CD recorder to On or Standby.
B
Number buttons
These buttons are used to enter track numbers and
to enter times for locating specific points in time.
C
DISPLAY button
This button is used to display information about the
current disc or track on the MD/CDR recorder’s dis-
play, including the elapsed time, remaining time,
total time, and so on.
D
Play [ ] button
This button is used to start playback.
E
Previous & Next [ ]/[ ] buttons
The Previous [ ] button is used to select the pre-
vious track. During playback it selects the begin-
ning of the current track. The Next [ ] button is
used to select the next track.
F
Pause [ ] button
This button is used to pause playback.
G
REC [ ] button
This button is used to start recording.
H
REPEAT button
This button is used to set the repeat playback func-
tions.
I
OPEN/CLOSE [ ] button
This button is used to eject the MiniDisc or open
and close the disc tray of the CD recorder.
J
CLEAR button
This button is used to cancel functions and to clear
entered numbers.
K
VOL button
This button is used to set the volume of the
HT-R520.
L
MUTING button
This button is used to mute the HT-R520.
CD
+
10 0
CLEAR
123
456
789
V1 V2 V3
DVD MULTI CH
--/---
TAPE TUNER
INPUT
I
+
-
ENTER
S
E
T
U
P
G
U
I
D
E
R
E
T
U
R
N
E
X
I
T
CINE FLTR
CH SEL
TEST TONE
DSP
DIRECT
STEREO
ALL ST
SURR
L NIGHT
T
O
P
M
E
N
U
M
E
N
U
VOL
+
-
CDR
SAT
AMP
TV VCR
CABLE
DVD
CD MD
DISC
CH
TONE
TUNER/
TAPE
DISPLAY
TV
INPUT
PREV
CH
DIMMER SLEEP
RANDOM
SP A SP B
MUTING
ANGLE
SEARCH
SUBTITLEAUDIO
MEMORYA
-
BREPEAT
ON STANDBY
T
V
TV CH
T
V VOL
RC
-
570M
REC
LAST M
REMOTE MODE
OPEN
/
CLOSE
DSP
VIDEO OFF
OR-EQ
LEVEL
-
LEVEL
+
+
_
A
3
4
5
6
8
9
K
N
M
O
B
J
2
1
7
8
5
6
3
4
7
L
P
MD
TAPE
CDR
MD Mode & CDR Mode
Before selecting MD or CDR mode and starting
playback, you should press the [AMP] mode
button followed by the [TAPE] input selector
button to select your MiniDisc or CD recorder
as the input source.
