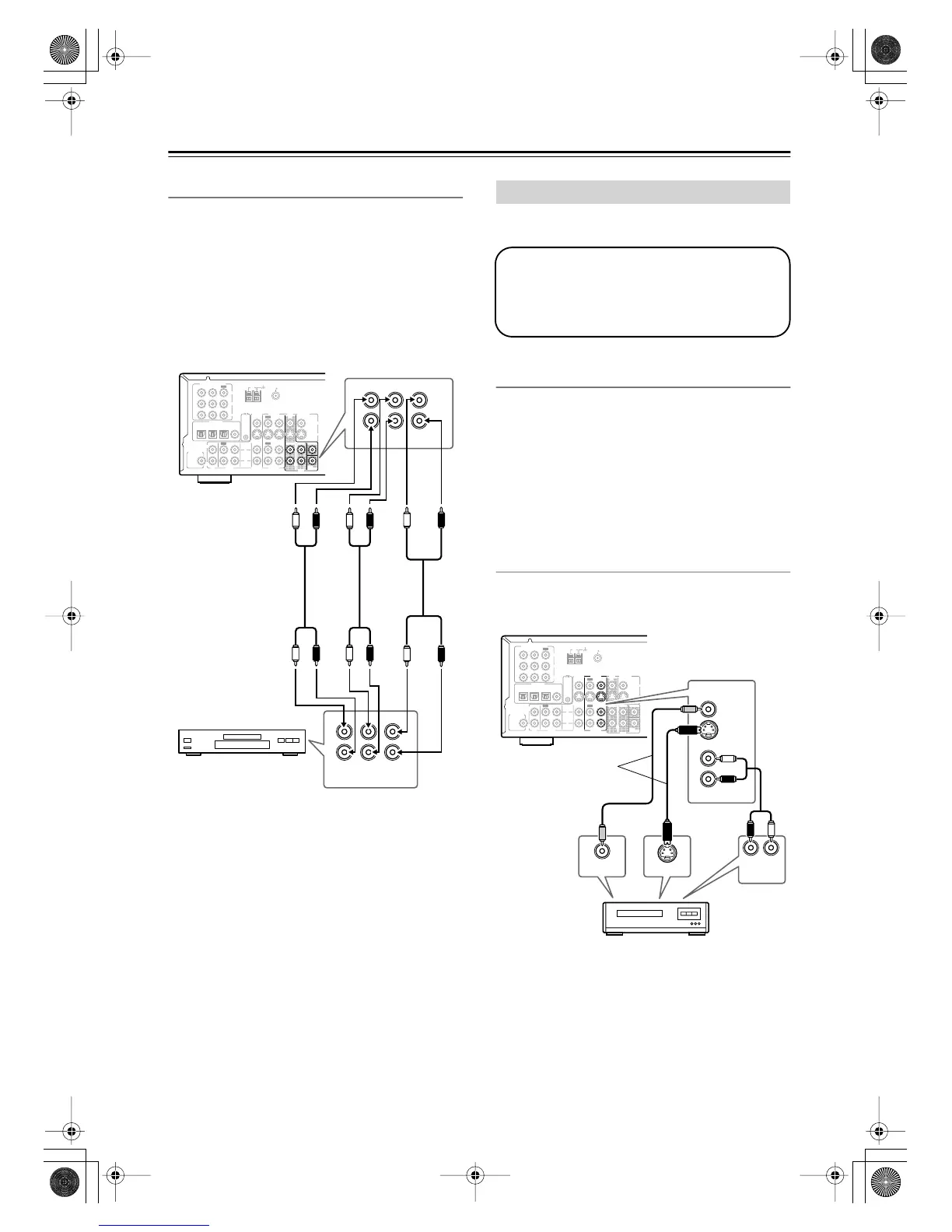

DVD Multichannel Connection
If your player supports multichannel audio formats such
as DVD-Audio and Super Audio CD, and it has multi-
channel analog audio outputs, you can enjoy
DVD-Audio and Super Audio CD playback.
Use a multichannel analog audio cable to connect the
HT-R520’s MULTI CH INPUT FRONT, SUB-
WOOFER, CENTER, and SURR sockets to the 5.1-
channel analog audio outputs on your DVD player, as
shown. Alternatively, use three standard analog audio
cables.
You can watch videos by connecting your VCR to the
HT-R520.
Video Connections
• Use an S-Video cable to connect the HT-R520’s
S VIDEO VIDEO 1 IN to the S-Video output on your
VCR, as shown.
OR
• Use a composite video cable to connect the
HT-R520’s VIDEO VIDEO 1 IN to a composite video
output on your VCR, as shown.
An S-Video connection provides better picture quality
than a composite video connection.
Audio Connections
• Use an analog audio cable to connect the HT-R520’s
VIDEO 1 IN L/R inputs to the analog audio outputs on
your VCR, as shown.
L
R
ANTENNA
FM
75
AM
OPTICAL COAXIAL
123
DIGITAL IN
REMOTE
CONTROL
IN
IN
IN
IN
IN IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
OUT
OUT
OUT
VIDEO 2
VIDEO 1
DVD MONITOR
OUT
VIDEO
S VIDEO
DVD
TAPE
CD
L
R
VIDEO 2
VIDEO 1
SUBWOOFER
PRE OUT
VIDEO 1 /2/3IN DVD IN
COMPONENT VIDEO
Y
P
B
PR
OUT
L
R
FRONT
SURR CENTER
SUB
WOOFER
DVD
L
R
FRONT
SURR
CENTER
SUB
WOOFER
OUTPUT
L
R
L
R
FRONT R
FRONT L
CENTER
SURR R
SUBWOOFER
FRONT R FRONT L
SURR LSURR L
CENTER SURR R SUBWOOFER
DVD player
Connecting a VCR for Playback
By using your VCR’s tuner, this connection
example allows you to listen to the sound from
your favorite TV programs through the
HT-R520. This is useful if your TV has no audio
outputs.
L
R
ANTENNA
FM
75
AM
OPTICAL COAXIAL
123
DIGITAL IN
REMOTE
CONTROL
IN
IN
IN
IN
IN IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
OUT
OUT
OUT
VIDEO 2
VIDEO 1
DVD MONITOR
OUT
VIDEO
S VIDEO
DVD
TAPE
CD
L
R
VIDEO 2
VIDEO 1
SUBWOOFER
PRE OUT
VIDEO 1 /2/3IN DVD IN
COMPONENT VIDEO
Y
P
B
PR
OUT
L
R
RL
IN
IN
VIDEO 1
VIDEO 1
VIDEO
S VIDEO
S VIDEO OUT
VIDEO OUT
AUDIO
OUTPUT
VCR
Connect one
or the other
