7
Front & Rear Panels
—Continued

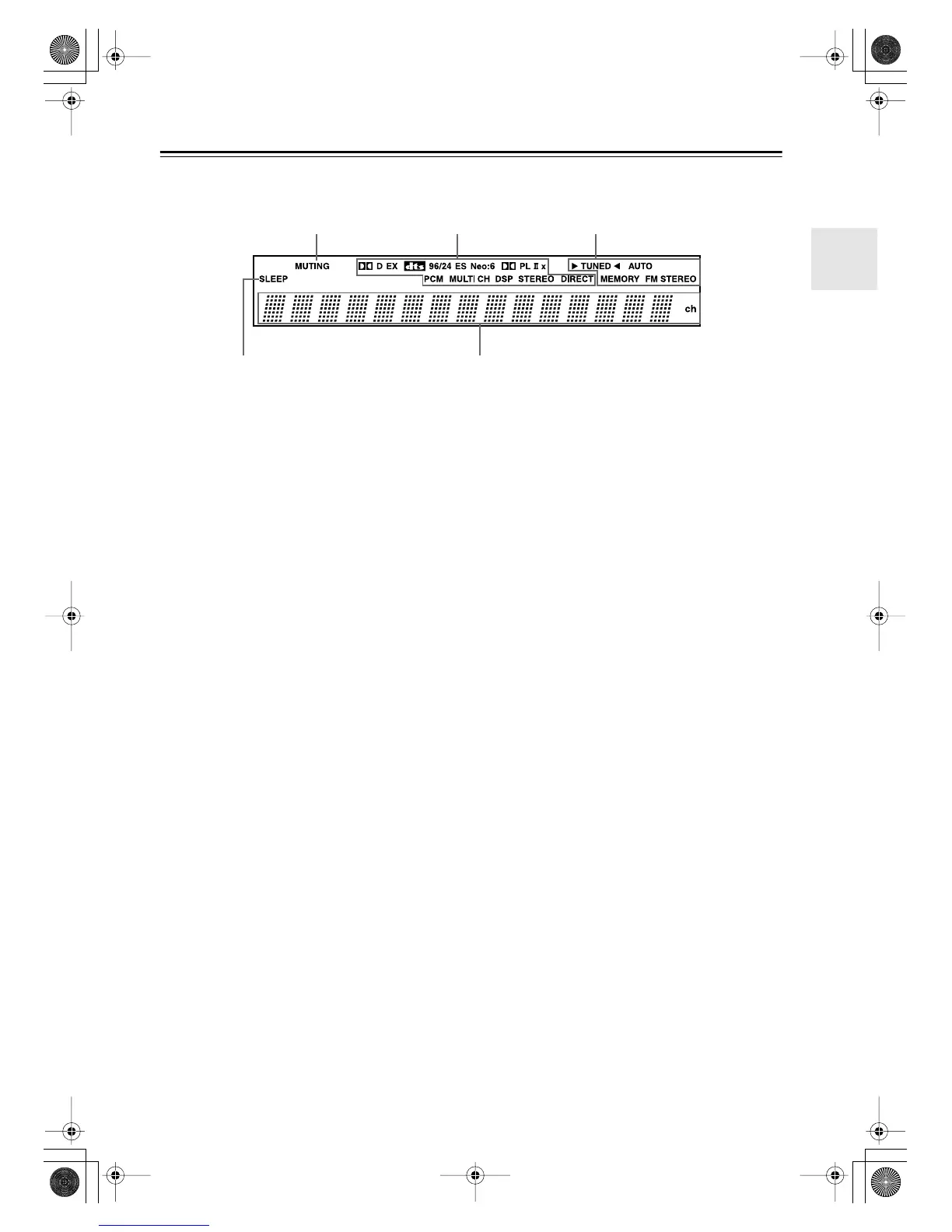

Display
For detailed information, refer to the pages in
parenthesis.
1
MUTING indicator (37)
This indicator flashes when the HT-R520 is muted.
2
Source/listening mode indicators (41)
These indicators show the currently selected listen-
ing mode and digital audio format.
3
Tuning indicators (34)
TUNED (34):
This indicator lights up when the
HT-R520 is tuned into a radio station.
AUTO (34):
This indicator lights up when Auto
Tuning is selected, and disappears when Manual
Tuning is selected.
MEMORY (34):
This indicator lights up when pre-
setting radio stations.
FM STEREO (34):
This indicator lights up when
the HT-R520 is tuned to a stereo FM station.
4
SLEEP indicator (37)
This indicator lights up when the Sleep function has
been set.
5
Message area
This area of the display shows various information
about the currently selected source.
123
4
5
HT-R520En.book Page 7 Monday, March 15, 2004 2:47 PM
