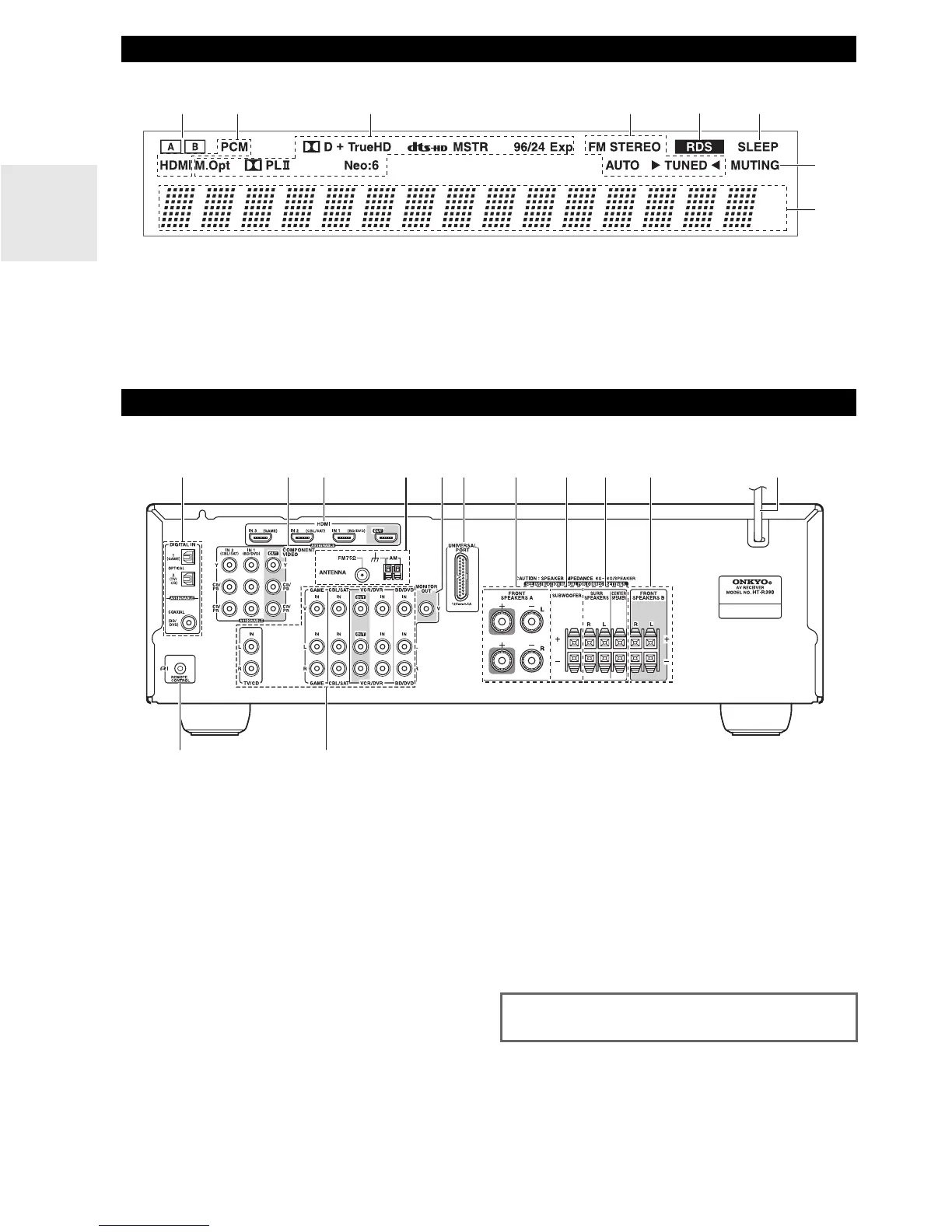

For detailed information, see the pages in parentheses.
a A and B speaker indicators (➔ 10, 20)
b Audio input indicators
c Listening mode and format indicators (➔ 19, 25)
d Tuning indicators (➔ 21)
e RDS indicator (➔ 22)
f SLEEP indicator (➔ 20)
g MUTING indicator (➔ 20)
h Message area
a DIGITAL IN COAXIAL and OPTICAL jacks
b COMPONENT VIDEO IN and OUT jacks
c HDMI IN and OUT jacks
d FM ANTENNA jack and AM ANTENNA terminal
e MONITOR OUT V jack
f UNIVERSAL PORT jack
g FRONT SPEAKERS A terminals
h SUBWOOFER terminals
i SPEAKERS terminals
(SURR, CENTER)
j FRONT SPEAKERS B terminals
k Power cord
l u REMOTE CONTROL jack
m Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, TV/CD IN)
Display
bcaef
h
g
d
Rear Panel
abc
d
k
ef
g
h i j
l
m
See “Connecting the AV Receiver” for connection infor-
mation (➔ 11 to 17).
